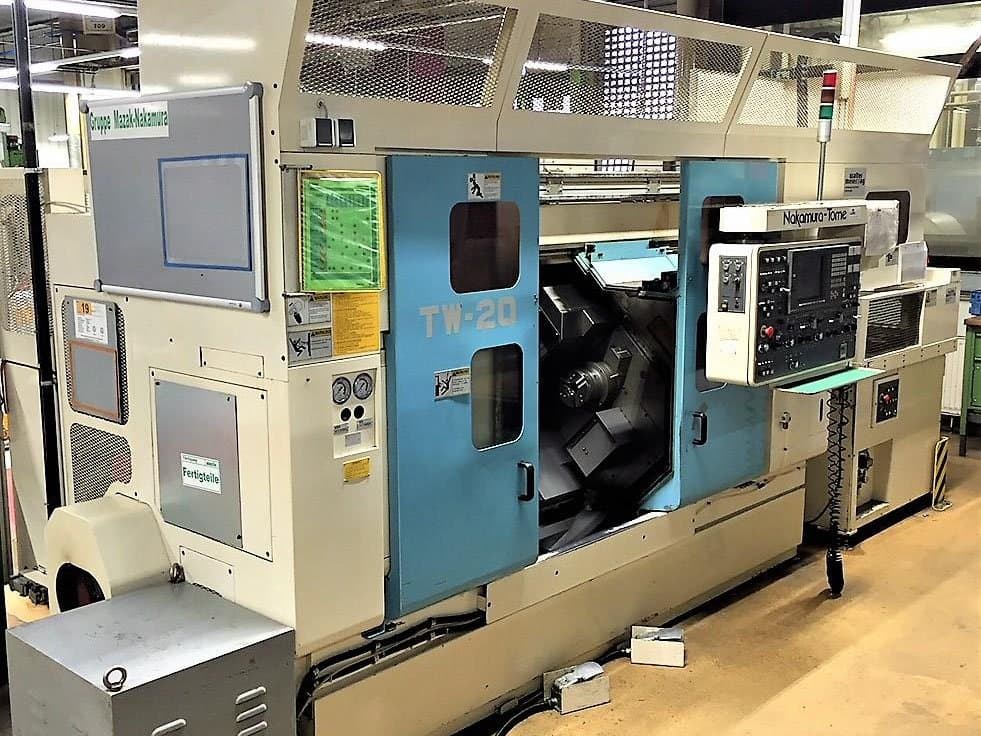

Left view of NAKAMURA-TOME TW-20 Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

NAKAMURA-TOME TW-20

Photo Gallery

NAKAMURA-TOME - TW-20ES-TUR-NAK-2002-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used NAKAMURA-TOME TW-20 Lathe

Show in original language

This NAKAMURA-TOME TW-20 Lathe was built in Japan in 2002 and has been operative for 12500 hours. Equipped with a FANUC Series 18-T Control unit, this machine stands out due to its live tooling capability. Several additional equipment such as different toolholders, come included in the delivery.

Overview

brand: NAKAMURA-TOME
year: 2002
MODEL: TW-20
production hours: 12500
application type: Turning
Location: Spain
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - NAKAMURA-TOME TW-20

General Data

Measurements width: 3645 mm
Measurements depth: 2179 mm
Measurements height: 200 mm
Machine weight: 6500 kg

Control Unit

Model: Series 18-T
CNC main language: Spanish
Brand: FANUC

Main drive

Number of spindles: 2
Spindle speed range: 5000 1/min

Movement

X-AXIS Movement: 280 mm
Y-AXIS Movement: 52 mm
Z-AXIS Movement: 850 mm

Turret

Number of turrets: 16

Media

Power consumption: 15 kVA

Additional equipment

- Automatic loading and unloading gantry robot
- 2x Renishaw Automatic Tool Probe
- 10x External Toolholders
- 6x Internal Toolholders
- 2x High pressure pump (30 bars)
- 8x Radial Tool Holders for Live tools

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Interface to advance bars

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
