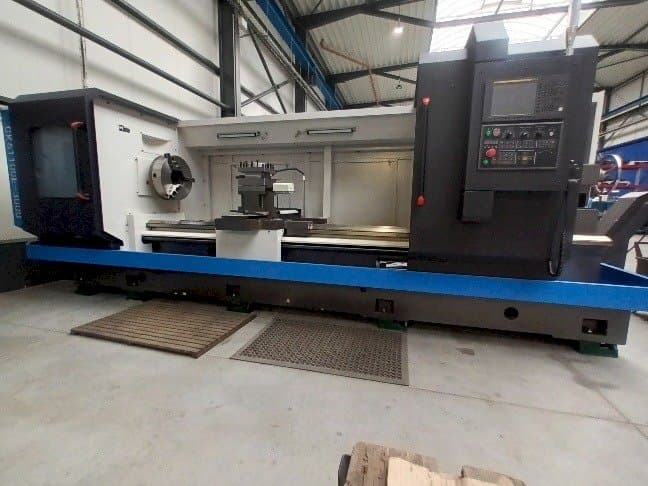

Front view of Ningbo Oturn CK61100E-3000 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Ningbo Oturn CK61100E-3000

Photo Gallery

Ningbo Oturn - CK61100E-3000CZ-TUR-NIN-2023-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Ningbo Oturn CK61100E-3000 Lathe

Show in original language

This Ningbo Oturn CK61100E-3000 Lathe was manufactured in the year 2023. It is equipped with a Fanuc Oi-FT plus control unit and has 2 axis. The machine has a spindle speed of 25-850 rpm and spindle torque of 25-100 rpm 1095 Nm, 70-250 rpm 770Nm, 220-850rpm 500Nm.

Overview

brand: Ningbo Oturn
year: 2023
MODEL: CK61100E-3000
application type: Turning
Location: Czech Republic
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Ningbo Oturn CK61100E-3000

General Data

Measurements width: 5450 mm
Measurements depth: 2000 mm
Measurements height: 2000 mm
Machine weight: 7000 kg

Control Unit

Model: Oi-FT plus
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 25-850 1/MIN
Number of axis: 2

Media

Main electronic connection: 380 V

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle with gearbox
- - Swing over cross slide 650 mm
- - Maximum cutting diameter 1000 mm
- - Maximum cutting length 2850 mm
- - Spinlde through hole 105 mm
- - Spindle motor power 15kw
- - No. Of tool posts 4
- - 500 mm 3-jaw chuck, 600 mm 4 jaw chuck
- - Tailstock, rest 350-650 mm
- - Spindle torque: 25-100 rpm 1095 nm, 70-250 rpm 770nm, 220-850rpm 500nm
Qualitative Machine Benefits:
- - Like new

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
