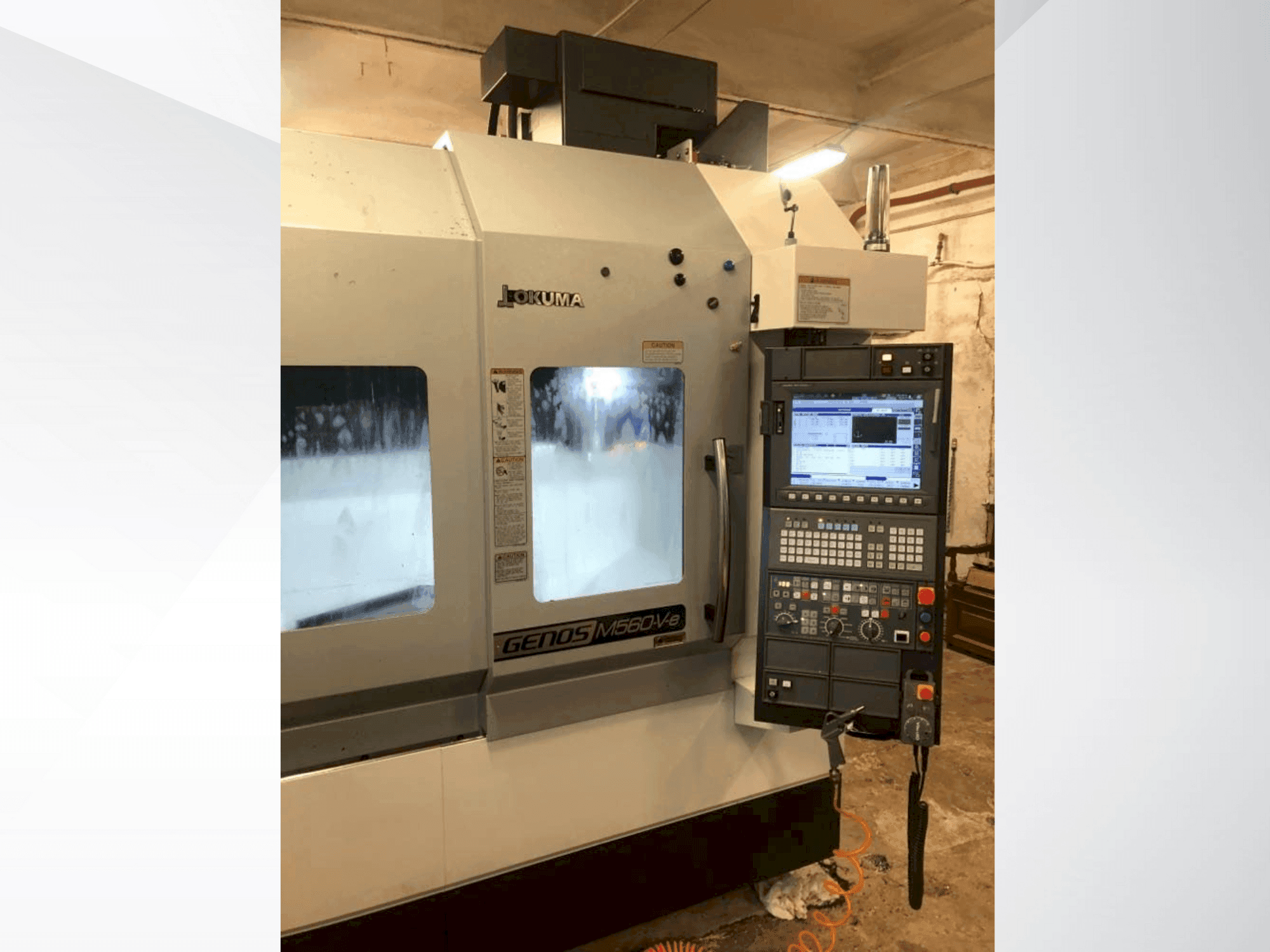

Front view of Okuma GENOS M560-V-e machine
Front view of Okuma GENOS M560-V-e machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

Okuma - GENOS M560-V-eLT-MIL-OKU-2021-00002

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis OKUMA vertical machining centre was manufactured in 2021. It features an impressive travel range with X-axis at 1,050 mm, Y-axis at 560 mm, and Z-axis at 460 mm. The spindle can reach speeds up to 15,000 min^-1 and supports a maximum load capacity of 900 kg. Rapid traverse rates are 40 m/min for X and Y axes and 32 m/min for Z-axis, enhancing productivity. The machine accommodates 32 tools with a max tool diameter of 125 mm when adjacent slots are vacant. Reach out for further details regarding this vertical machine center.

Overview

  • brand: Okuma
  • year: 2021
  • MODEL: GENOS M560-V-e
  • application type: Milling
  • Location: Lithuania
  • machine type: Vertical Machining Centre

Technical Information - Okuma GENOS M560-V-e

General Data

  • Measurements height: 2746 mm
  • Machine weight: 8,300 kg

Main drive

  • Number of spindles: 1
  • Spindle speed range: 15000 1/MIN
  • Spindle motor power: 22/18.5 kW
  • Number of axis: 4

Movement

  • X-AXIS Movement: 1050 mm
  • X-AXIS Rapid traverse: 40 m/min
  • Y-AXIS Movement: 560 mm
  • Y-AXIS Rapid traverse: 40 m/min
  • Z-AXIS Movement: 460 mm
  • Z-AXIS Rapid traverse: 32 m/min

Tools

  • Number of index: 32

    Additional Information

    Additional equipment

    • Feedrate
    • Tool shank: MAS BT.40 [DIN No.40]
    • Pull stud: JIS
    • NC unit: OSP-P300M-e

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
