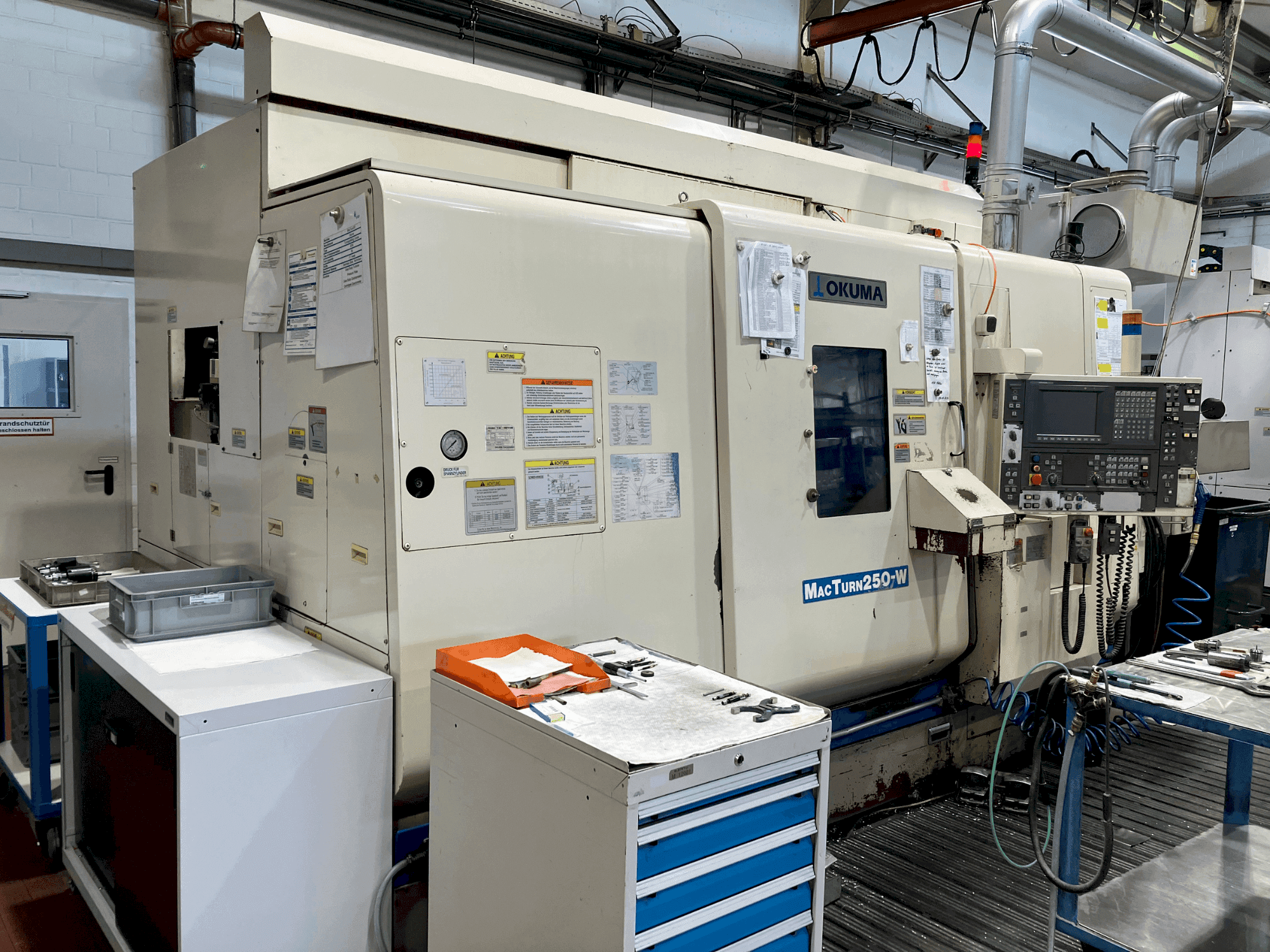

Front view of Okuma MacTurn 250-W machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Okuma MacTurn 250-W

Photo Gallery

Okuma - MacTurn 250-WDE-MIL-OKU-2004-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Okuma MacTurn 250-W For Sale | gindumac.com

Show in original language

This 7-axis Okuma MacTurn 250-W turn-mill centre was manufactured in 2004. It features a control unit OSP U100L, a maximum turning length of 1000mm, and a turning diameter of 530mm. The spindle supports speeds up to 5000 rpm with a bar capacity of 71mm. It includes a milling head with B-axis, a chip conveyor, and a tool measurement touch setter. For more information about this turn-mill centre, please reach out to us.

Overview

brand: Okuma
year: 2004
MODEL: MacTurn 250-W
application type: Milling
Location: Germany
machine type: Turn-Mill Centre
control unit brand: OKUMA

Technical Information - Okuma MacTurn 250-W

General Data

Measurements width: 2900 m MM
Measurements depth: 5200 mm
Measurements height: 2730 mm
Machine weight: 12500 kg

Control Unit

Model: OSP U100L
Brand: OKUMA

Main drive

Number of spindles: 3
Spindle speed range: 5000 rpm 1/MIN
Spindle motor power: 22/15 kW
Tool taper: HSK 63 A
Number of axis: 7

Movement

X-AXIS Movement: 40 mm

Media

Chip conveyor: Yes

Additional equipment

- C-axis
- Y-axis
- Milling head with B-axis 1°
- Chip conveyor link belt
- Tool measurement = touch setter
- Parts catcher
- Handwheel
- Oil cooler
- KSM tank

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Turning length: 1000 mm
- - Max. Turning diameter: 530 mm
- - Comprehensive axis capabilities including c-axis, y-axis, and b-axis
- - Main spindle chuck speed: 4500 rpm
- - Counter spindle speed range: 650-7000 rpm
- - Counter spindle chuck speed: 6000 rpm
- - Milling spindle drive power: 5. 5 kw
- - Milling spindle speed range: 12000 rpm
- - Rapid traverse speeds: 30 / 40 / 26 m/min

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
