Okuma MULTUS B200II CX750 Lathe

Show in original language

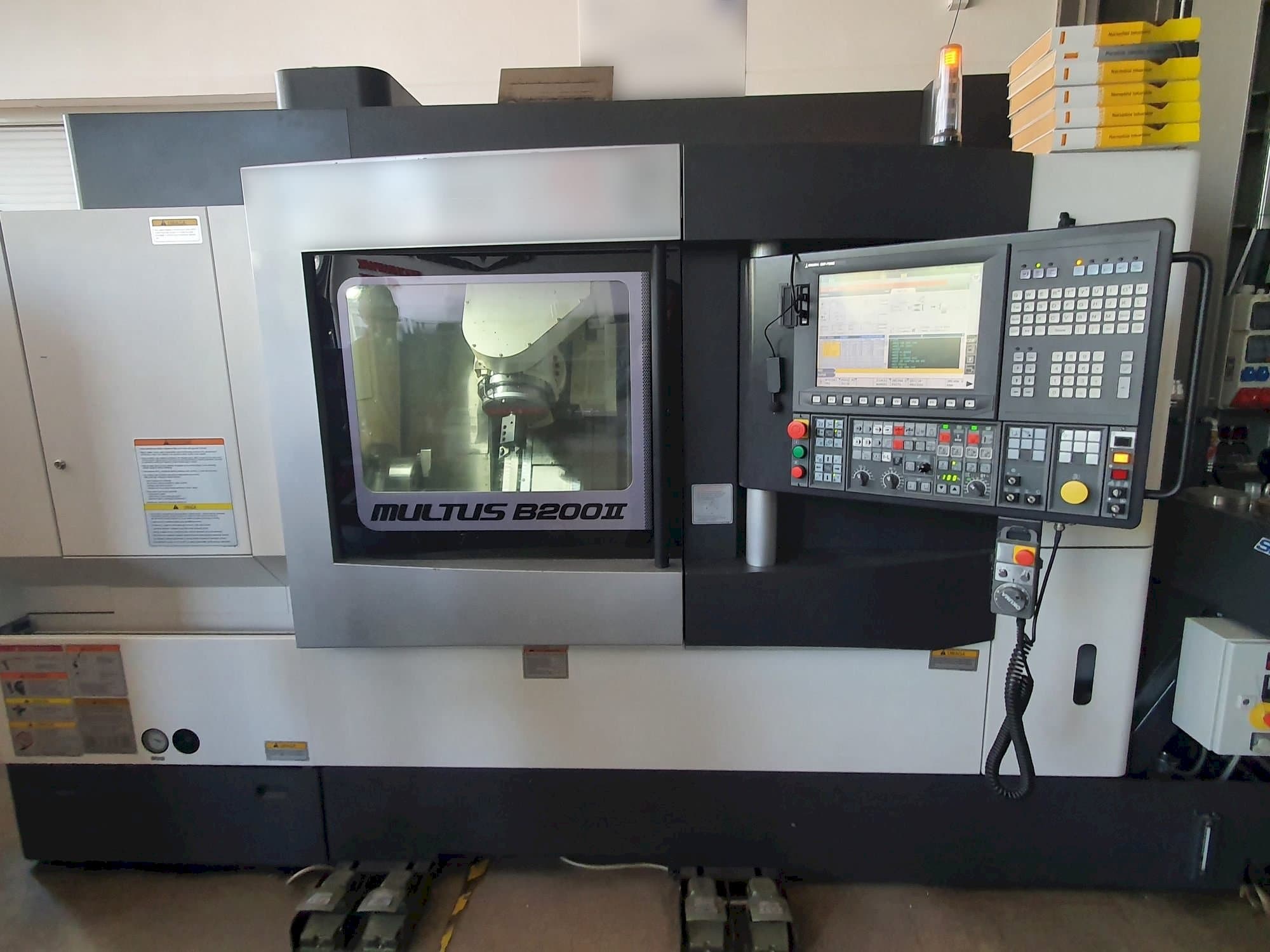

This Okuma MULTUS B200II CX750 Lathe was manufactured in the year 2012 in Japan and has 749 working hours, of which 94 are spindle hours. It is equipped with an OKUMA OSP-P300S control unit. The machine has a spindle speed of 50-6000 rpm, is in very good condition and well maintained.

Overview

brand: Okuma
year: 2012
MODEL: MULTUS B200II CX750
production hours: 749
application type: Turning
Location: Poland
machine type: Turn-Mill Centre
availability: Sold
control unit brand: OKUMA

Technical Information - Okuma MULTUS B200II CX750

General Data

Measurements width: 3620 mm
Measurements depth: 2210 mm
Measurements height: 2582 mm
Machine weight: 7900 kg

Control Unit

Model: OSP-P300S
Brand: OKUMA

Main drive

Spindle speed range: 50-6000 1/MIN

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 160 mm
Z-AXIS Movement: 800 mm

Tools

Max weight: 4 kg
Max tool diameter: 90 mm
Max tool length: 200 mm
Type of tool holder: HSK-A63

Media

Main electronic connection: 400V / 50/60 Hz
Power consumption: 37 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - C – index angle: 360 degrees c - index incremental angle: 0. 001 degree
- - B - index angle: 225 degrees b - index incremental angle: 0. 001 degree
- - Rotary tool speed: 50 – 12000 rpm
- - Tailstock travel: 810 mm
Qualitative Machine Benefits:
- - The machine is in perfect condition, like a new. It was use for test only.
- - Full documentation available.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
