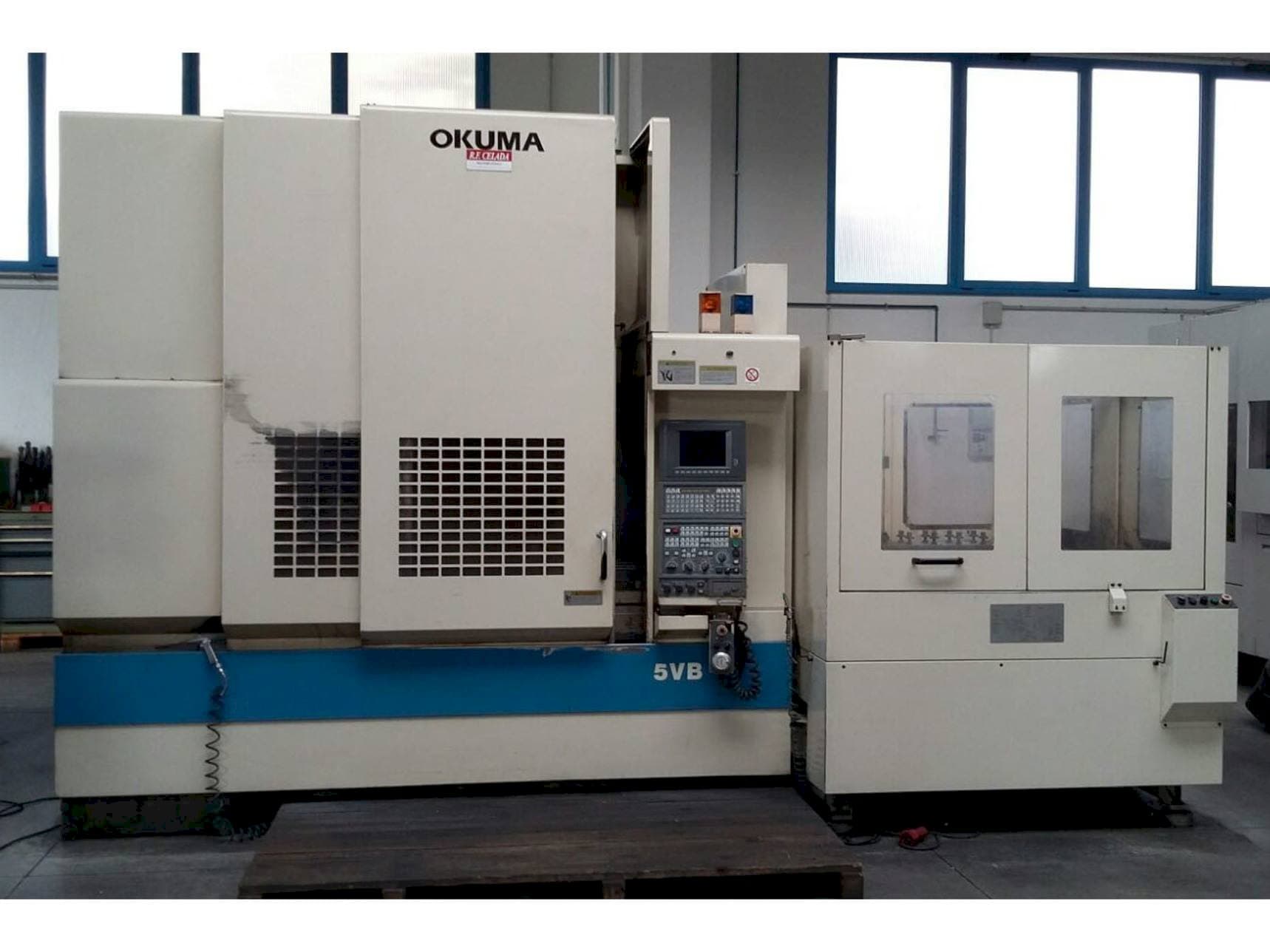

Okuma MX55 VB Vertical Machine Center

Show in original language

This Okuma MX55 VB Vertical Machine Center was made in the year 1998. It is equipped with an OSP 700 M CNC control unit. The machine has a spindle speed of 12000 rpm and is equipped with through-spindle cooling at 20 bar, an automatic pallet changer, and a chip conveyor.

Overview

brand: Okuma
year: 1998
MODEL: MX55 VB
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold

Technical Information - Okuma MX55 VB

General Data

Measurements width: 3000 mm
Measurements depth: 2700 mm
Measurements height: 2700 mm
Machine weight: 9000 kg

Main drive

Spindle speed range: 12000 1/MIN
Tool taper: BT 50

Movement

X-AXIS Movement: 1050 mm
Y-AXIS Movement: 560 mm
Z-AXIS Movement: 450 mm (light on the vertical mm. 610)

Table

Outer length: 1300 mm
Outer width: 530 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Automatic pallet change 2 apc mm. 1300 x 530
- - Atc bt 50 tool changer with 32 places
- - Maximum tool length mm. 400 through spindle cooling 20 bar
- - Chips conveyor
- - Shower
- - Presetting on the table
- - Zero off set preparation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
