OPS INGERSOLL 650

Photo Gallery

OPS INGERSOLL - 650DE-MIL-OPS-2007-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

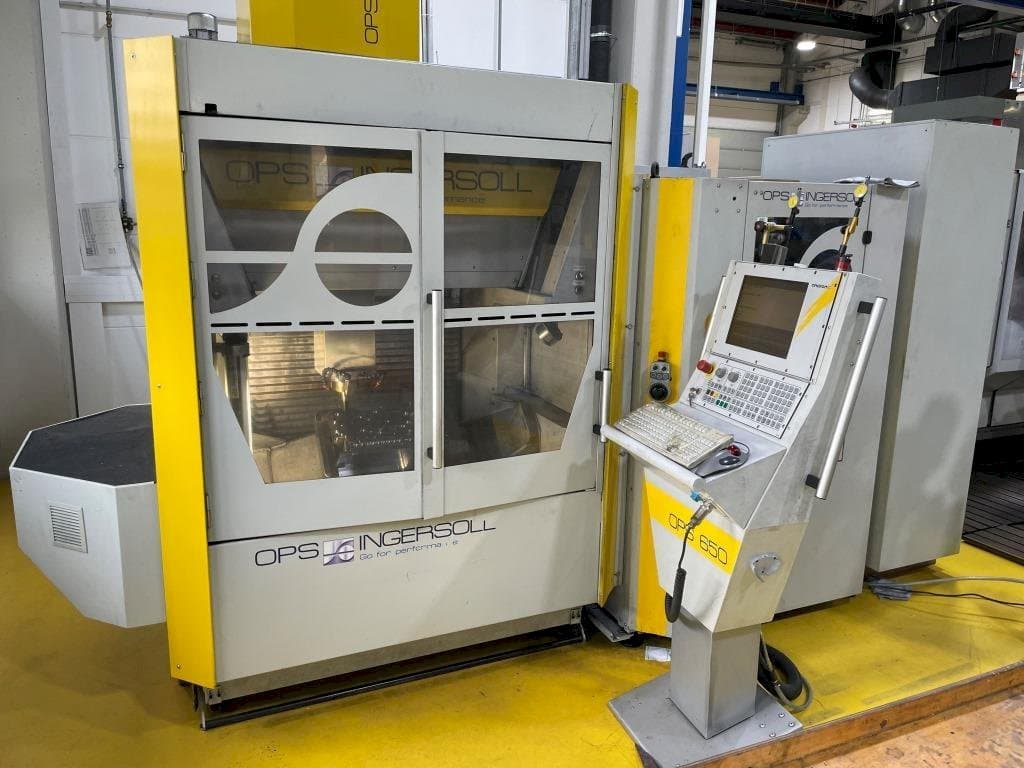

OPS-INGERSOLL 650 Milling machine

Show in original language

This OPS-INGERSOLL 650 Milling machine was manufactured in the year 2007. It has approximately 22000 spindle hours. This 5 axis machine is equipped with an Andronic 2060 control unit. It can works with a spindle speed range between 1 - 42000 rpm. Includes additional equipment: pallet changer and an extraction unit.

Overview

brand: OPS INGERSOLL
year: 2007
MODEL: 650
production hours: 22000
application type: Milling
Location: Germany
machine type: Vertical Machining Centre

Technical Information - OPS INGERSOLL 650

General Data

Machine weight: 8600 KG

Control Unit

Model: 2060

Main drive

Spindle speed range: 1 - 42000 1/MIN
Spindle motor power: 17 kW
Number of axis: 5

Movement

X-AXIS Movement: 700 mm
Y-AXIS Movement: 590 mm
Z-AXIS Movement: approx. 400 mm

Workpiece

Workpiece weight: 250 KG

Media

Main electronic connection: 3 x 400V / 50Hz

Additional Information

Additional equipment

Handling: MuliChange Easy with 5-fold pallet changer / PARTool 4-fold
Extraction (suction unit): Keller L-CAT2-6P

Machine Benefits

Technical Machine Benefits

High frequency spindle: fischer mfw-1224/42
Workpiece weight for hsc rotary table

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
