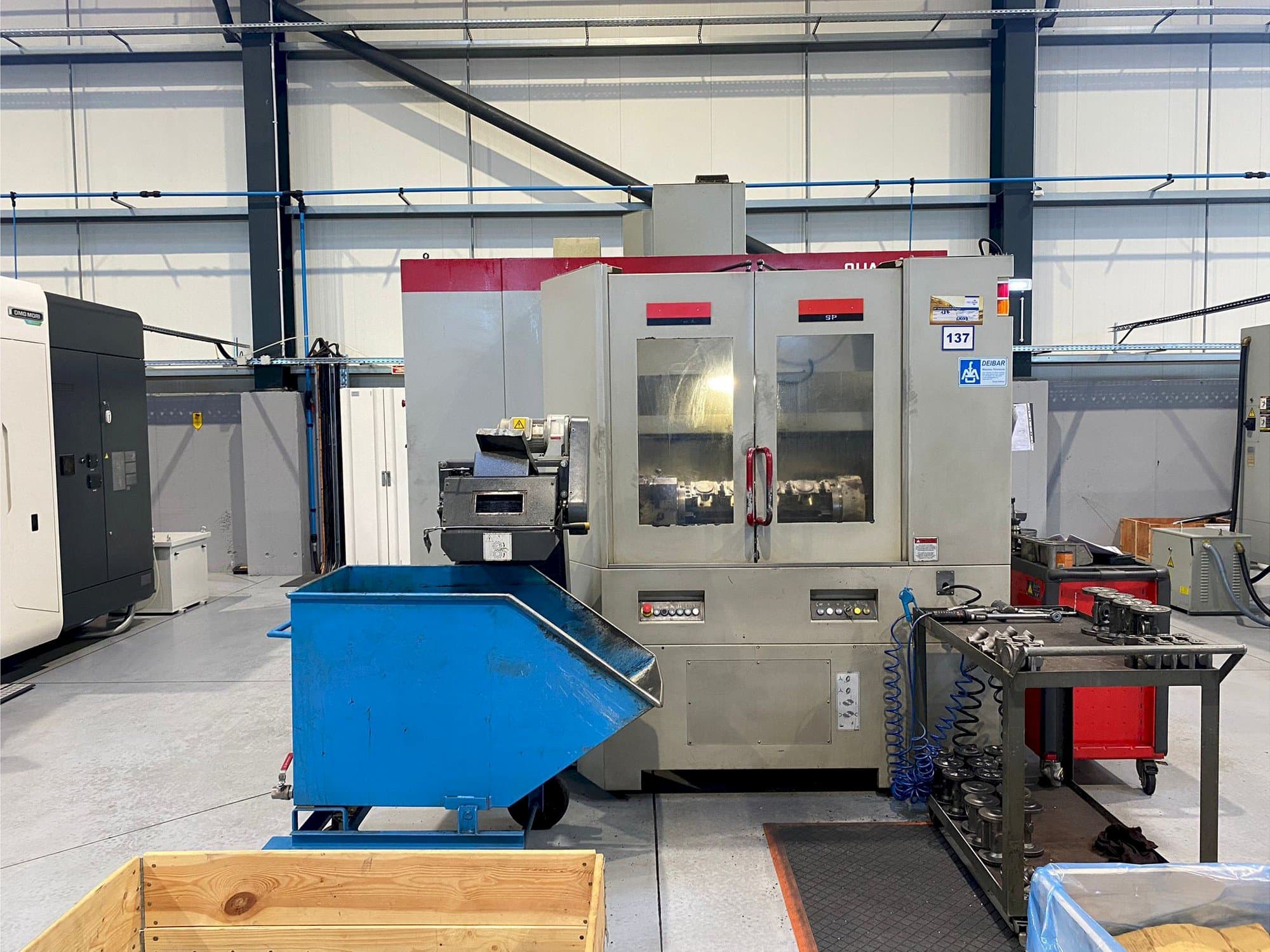

Quaser MK603SP/12B Vertical Machining center

Show in original language

This Quaser MK603SP/12B Vertical Machining center was manufactured in the year 2011 in Taiwan. It is equipped with a Fanuc 18i-MB control unit and has 3 axis. The machine has a spindle speed of 12000 rpm.

Overview

brand: Quaser
year: 2011
MODEL: MK603SP/12B
application type: Milling
Location: Portugal
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: FANUC

Technical Information - Quaser MK603SP/12B

General Data

Measurements width: 4650 mm
Measurements depth: 2930 mm
Measurements height: 3300 mm
Machine weight: 2000 KG

Control Unit

Model: 18i-MB.
Brand: FANUC

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 30Kw
Number of axis: 3

Movement

X-AXIS Movement: 1020 mm
X-AXIS Feed Force: 32000 mm/min
Y-AXIS Movement: 610 mm
Z-AXIS Movement: 600 mm

Table

Outer length: 1050 mm
Outer width: 550 mm
Table load: 300 kg

Tools

Slots in storage: 48
Max weight: 7 kg
Max tool diameter: 125 mm
Type of tool holder: BT-40.

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance from table surface to tree center:130-730 mm
- - Tool selection method: random
- - Tree motor : 30 kw
- - Coolant pump motor:1. 4 + 3. 0 kw
- - Feed motor: 3. 8 kw
- - Hydraulic pump motor: 3. 7 kw
- - Tank capacity internal cooling capacity 25 l/min a 20 bar, coolant tank capacity :200+380 l/min
- - Work lamp.
- - Tree cooling system.
- - Automatic lubrication system.
Qualitative Machine Benefits:
- - Internal refrigeration system at 20bar, equipped with powder
- - Rigid thread.
- - Belt-type chip extractor
- - Service keys.
- - Instruction manual.
- - Leveling shoes.
- - Optional accessories included : 2 dividing plates 4th axis ,2 hydraulic telescopes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
