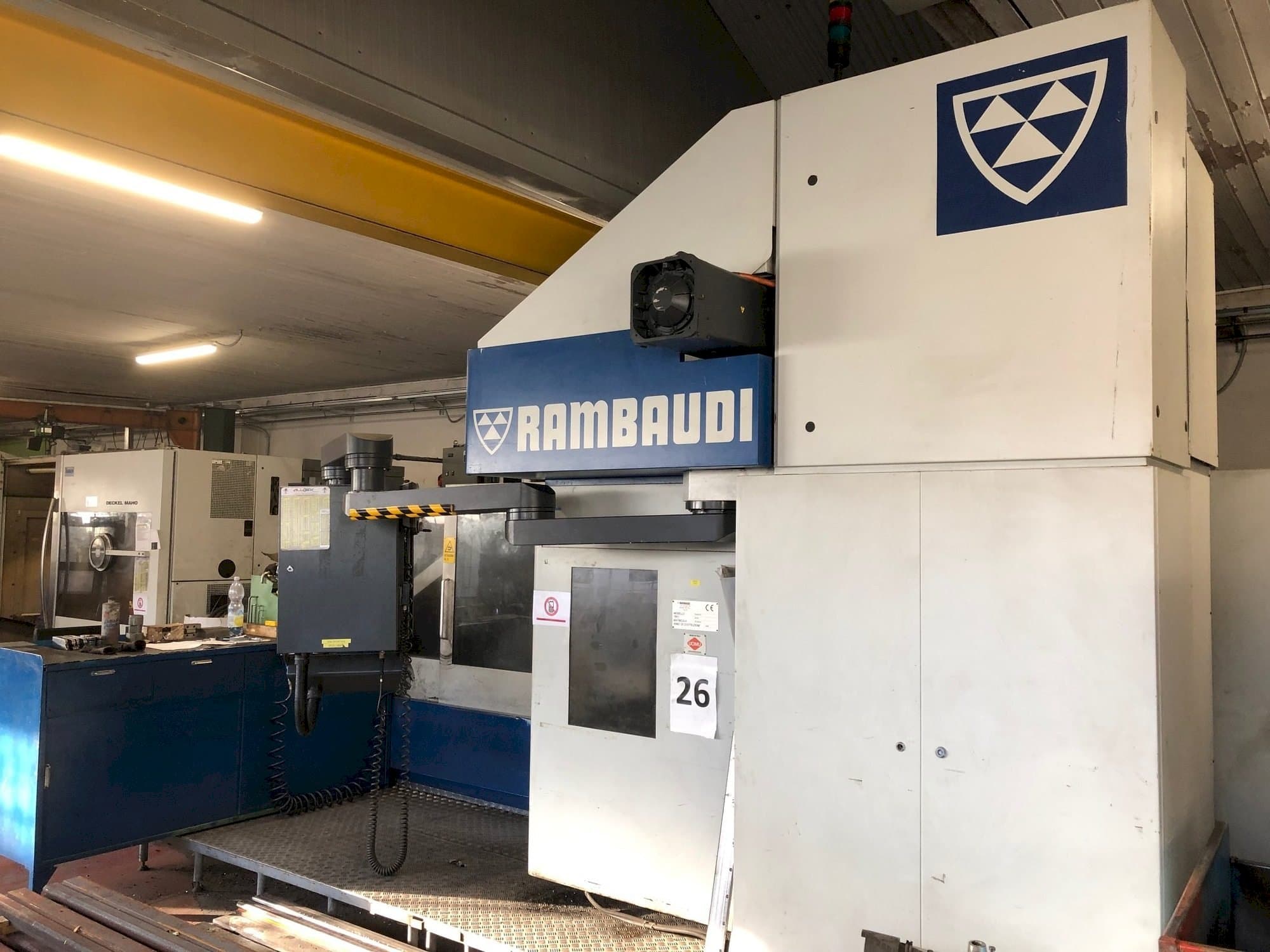

Rambaudi Ramfast RF105 Milling machine

Show in original language

This Rambaudi Ramfast RF105 Milling machine was manufactured in the year 2005. It is equipped with a FIDIA C10-S control unit and has 5 axis. The machine has a spindle speed of 28-24000 rpm.

Overview

brand: Rambaudi
year: 2005
MODEL: Ramfast RF105
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FIDIA

Technical Information - Rambaudi Ramfast RF105

General Data

Measurements width: 5300 mm
Measurements depth: 7000 mm
Measurements height: 4300 mm
Machine weight: 26000 Kg

Control Unit

Model: C10-S
Brand: FIDIA

Main drive

Spindle speed range: 28-24000 1/MIN
Spindle motor power: 28 kW
Number of axis: 5

Movement

X-AXIS Movement: 1600 mm
X-AXIS Rapid traverse: 45 m/min
Y-AXIS Rapid traverse: 45 m/min
Z-AXIS Movement: 900 mm
Z-AXIS Rapid traverse: 45 m/min

Table

Outer length: 1200 mm
Outer width: 1200 mm

Tools

Slots in storage: 24
Max weight: 10 Kg
Max tool diameter: 105 mm
Max tool length: 250 mm
Type of tool holder: HSK63 A

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Capacity: 1600x2000+500x900 mm
- - Transversal (y): 2000+500atc mm
- - Table rotation (b): 360000°
- - Head swing (a): +/- 105°
- - Cylinder swing capacity: 1200 mm
- - Torque: (s1) 90nm
- - Cone: hsk63a
- - Atc extension
- - Resolution (b-axis): 0. 001°, axis acceleration 4. 5m/s2
- - Table: range: approx. 3000 kgs
Qualitative Machine Benefits:
- - Independent air/oil lubrication, 24. 000 rpm electrospindle
- - Supplied accessories: second electrospindle 24,000 rpm electrical cabinet conditioner, remote handwheel, triple chip conveyor (2 longitudinal + 1 transversal collection)
- - Use and maintenance books: yes, wiring diagrams: yes, ce certification: yes, fairing: integral smoke extractor: yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
