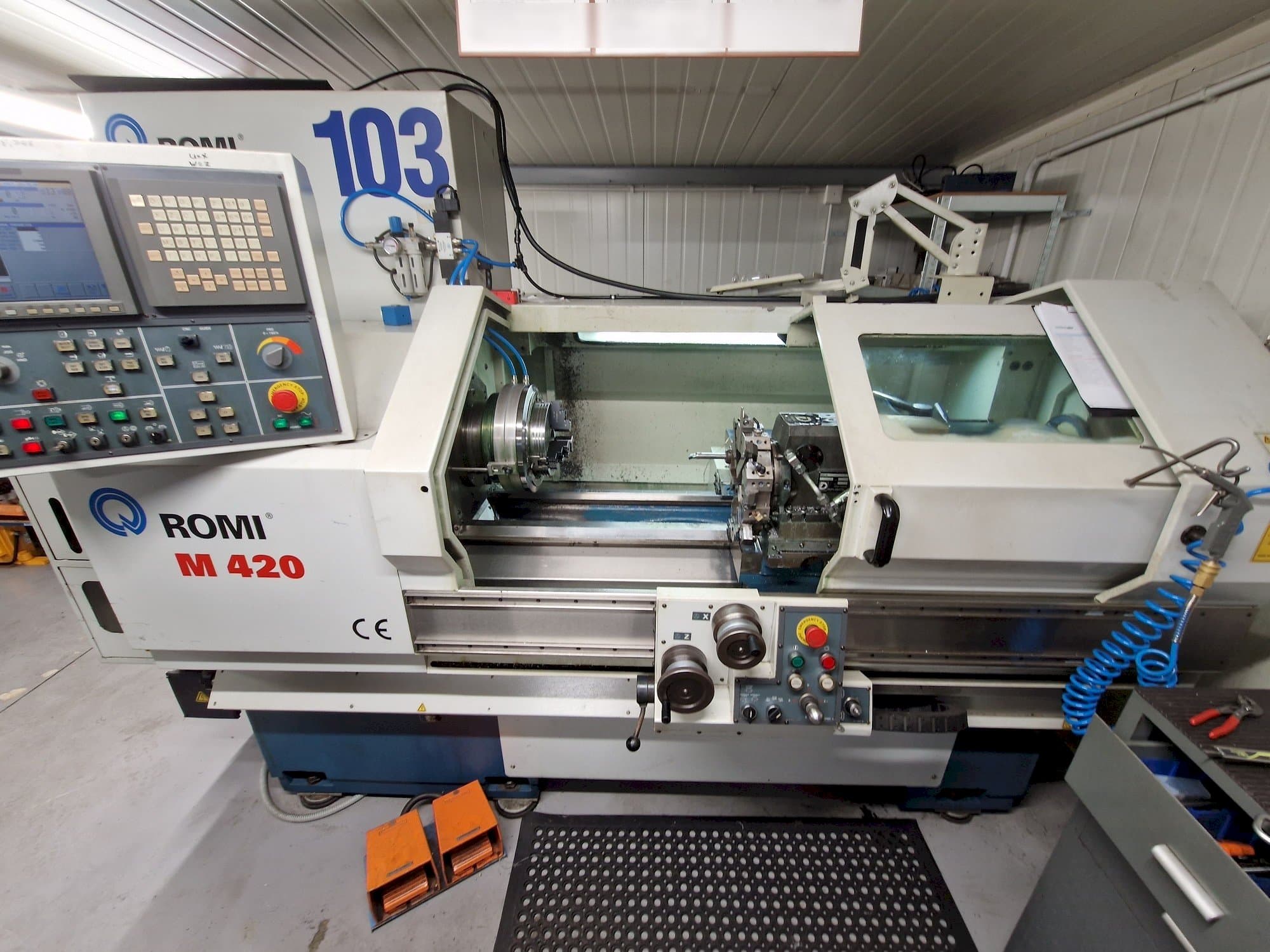

This Romi M 420 Programmable Universal Lathe was built in the year 2002 in Brazil and has 40849 power on hours, of which 1359 are machine hours. It is equipped with a GE-Fanuc Series 21i-TB control unit. The machine has a spindle speed of 4 - 4000 rpm, and is in good working condition, ready for tests.

Overview

brand: Romi
year: 2002
MODEL: M 420
production hours: 1359
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Romi M 420

General Data

Measurements width: 2720 mm
Measurements depth: 1270 mm
Measurements height: 1948 mm
Machine weight: 2850 kg

Control Unit

Model: Series 21i-TB
Brand: FANUC

Main drive

Spindle speed range: 4 - 4000 1/MIN

Movement

X-AXIS Movement: 220 mm
X-AXIS Feed Force: 7.5 m/min
Z-AXIS Movement: 1000 mm
Z-AXIS Feed Force: 10 m/min

Media

Main electronic connection: 220V x 3 / 50/60 Hz
Power consumption: 15 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Center height 215 mm
- - Distance between ends 1000 mm
- - Turning diameter over bed 430 mm
- - Turning diameter via cross slide 204 mm
- - Turning diameter over the screed wings 400 mm
- - Spindle before dim 53 mm
- - Turret duplomatic bsv-n 120-8/25-220/380-60
- - Number of tools 8
- - Max. Turning length (z axis) 1000 mm
- - Removable chip collecting box, hand-operated tailstock
Qualitative Machine Benefits:
- - New pneumatic chuck schunk
- - He machine is in very good condition ready for tests

Extra information

- Tools are not included in the offer

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
