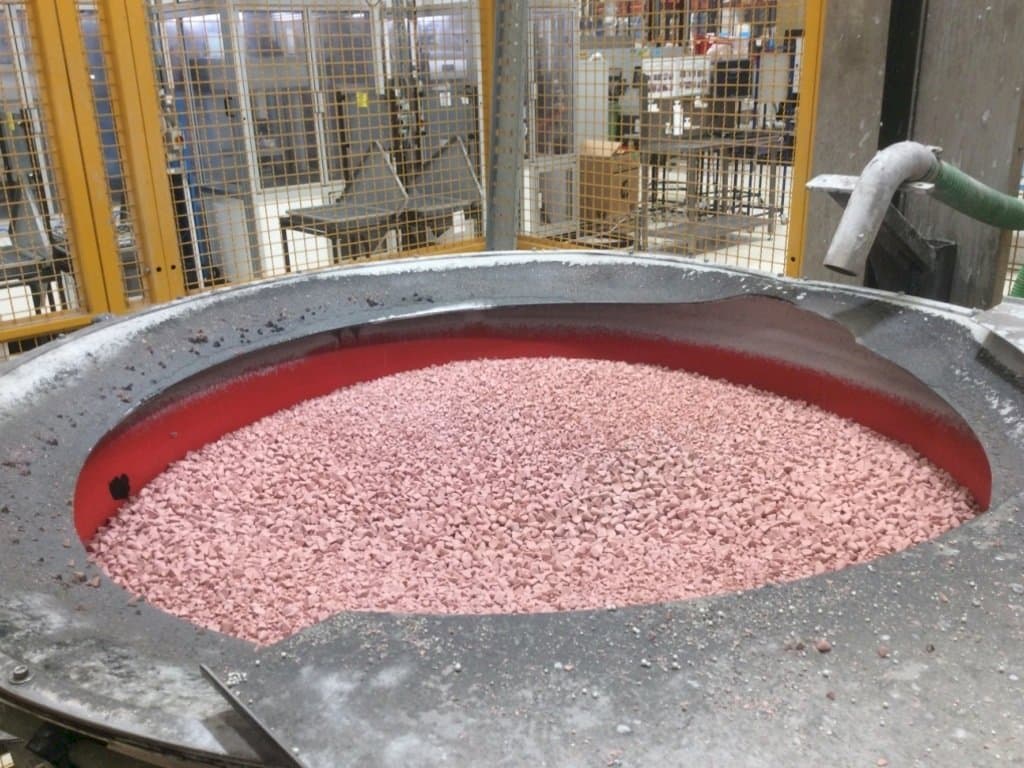

Front view of Rosler R4/1300.2 SF machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Rosler R4/1300.2 SF

Photo Gallery

Rosler - R4/1300.2 SFIE-OTH-ROS-2015-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Rosler R4/1300.2 SF

Show in original language

This Rosler R4/1300.2 SF Drag Finishing Machine was built in 2015 in Germany. It has been working for 13835 hours. It is equipped with a SIEMENS Simatic Panel Touch control unit. This machine has 4 powerful, versatile workstations allowing the finishing of large workpiece batches or work pieces up to 600mm and/or high individual piece weights. It includes a cooling unit, a buffer tank, a clean water tank, an hydraulic pack, and a safety fencing.

Overview

brand: Rosler
year: 2015
MODEL: R4/1300.2 SF
production hours: 13835
application type: Other Machine Tools
Location: Ireland
machine type: Machine Tool
control unit brand: SIEMENS

Technical Information - Rosler R4/1300.2 SF

General Data

Measurements width: 12000 mm
Measurements depth: 3901 mm
Measurements height: 2450 mm

Control Unit

Model: Simatic Panel Touch
CNC main language: English
Brand: SIEMENS

Tools

Number of stations: 4

Additional Information

Additional equipment

Cooling Unit
Buffer Tank
Clean Water Tank
Hydraulic Pack
Electrical Cabinets
Safety Fencing

Machine Benefits

Technical Machine Benefits

Number of bowls 2
Work bowl diameter 1280 mm
Max work bowl height 460 mm
Total work bowl volume 850 l
Usable work bowl volume 590 l
Power of main drive 15 kwh
Power of spindle drives 0. 8kwh (direct drive)
A sturdy single column holds the spinnerm including all drive units and provides the hydraulically activated up and down movement
Modular concept allows the expansion into systems of two of three processing stations
Independent spinner and work station drives with adjustable speed

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
