Samsung PL1600CM Lathe

Show in original language

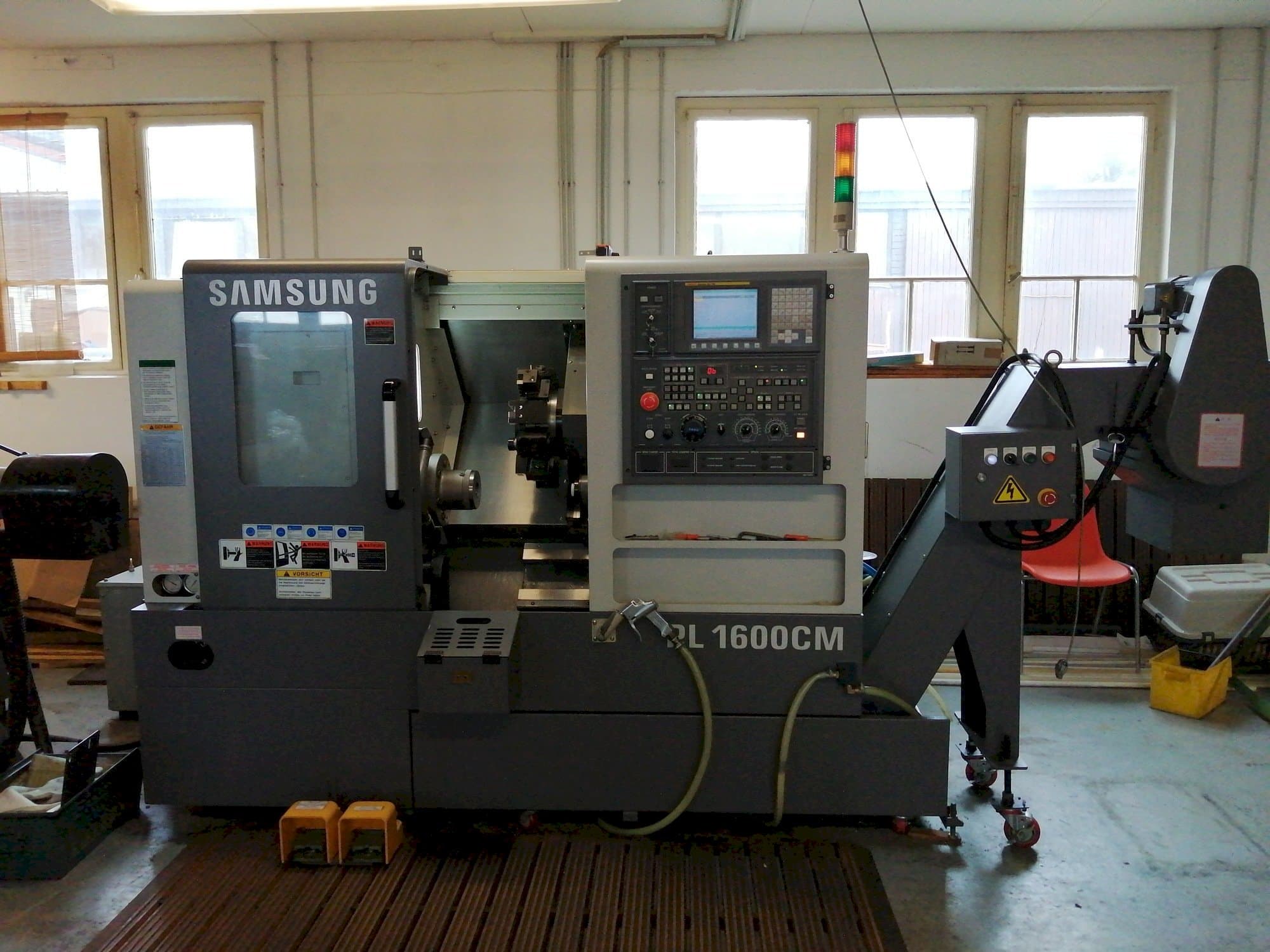

This Samsung PL1600CM Lathe was manufactured in Korea in 2013. This machine is equipped with a FANUC Series Oi TD Control unit. This lathe can work with a spindle speed up to 4000 rpm. Several additional equipment is included.

Overview

brand: Samsung
year: 2013
MODEL: PL1600CM
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Samsung PL1600CM

General Data

Measurements width: 2155 mm
Measurements height: 1593 mm
Machine weight: 3350 kg

Control Unit

Model: Series Oi TD
Brand: FANUC

Main drive

Spindle speed range: 4000 1/MIN
Spindle motor power: 11/15 kW

Movement

X-AXIS Movement: 165 mm
X-AXIS Rapid traverse: 24 m/min
Z-AXIS Movement: 350 mm
Z-AXIS Rapid traverse: 30 m/min

Tools

Number of stations: 12
Type of tool holder: BMT45

Media

Chip conveyor: Yes

Additional equipment

- Bar feed LNS Hydrobar -3000 mm
- Collets
- 3 Driven weir tools

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing diameter over bed mm Ø 530 max
- - Turning diameter/turning length mm Ø 250/261. 6
- - Working diameter for bars mm Ø 51
- - Chuck size 200 mm
- - Spindle nose asa a2-6"
- - Boring bar diameter mm Ø32 ( Ø40)
- - Powered tools kw 2. 2/3. 7
- - Quill stroke (opt. ) mm (80)
Qualitative Machine Benefits:
- - Coolant unit with 10 bar delivery pressure
- - Coolant gun
- - Oil skimmer with endless belt for tramp oil separation
- - Workspace lighting
- - German and english machine manuals

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
