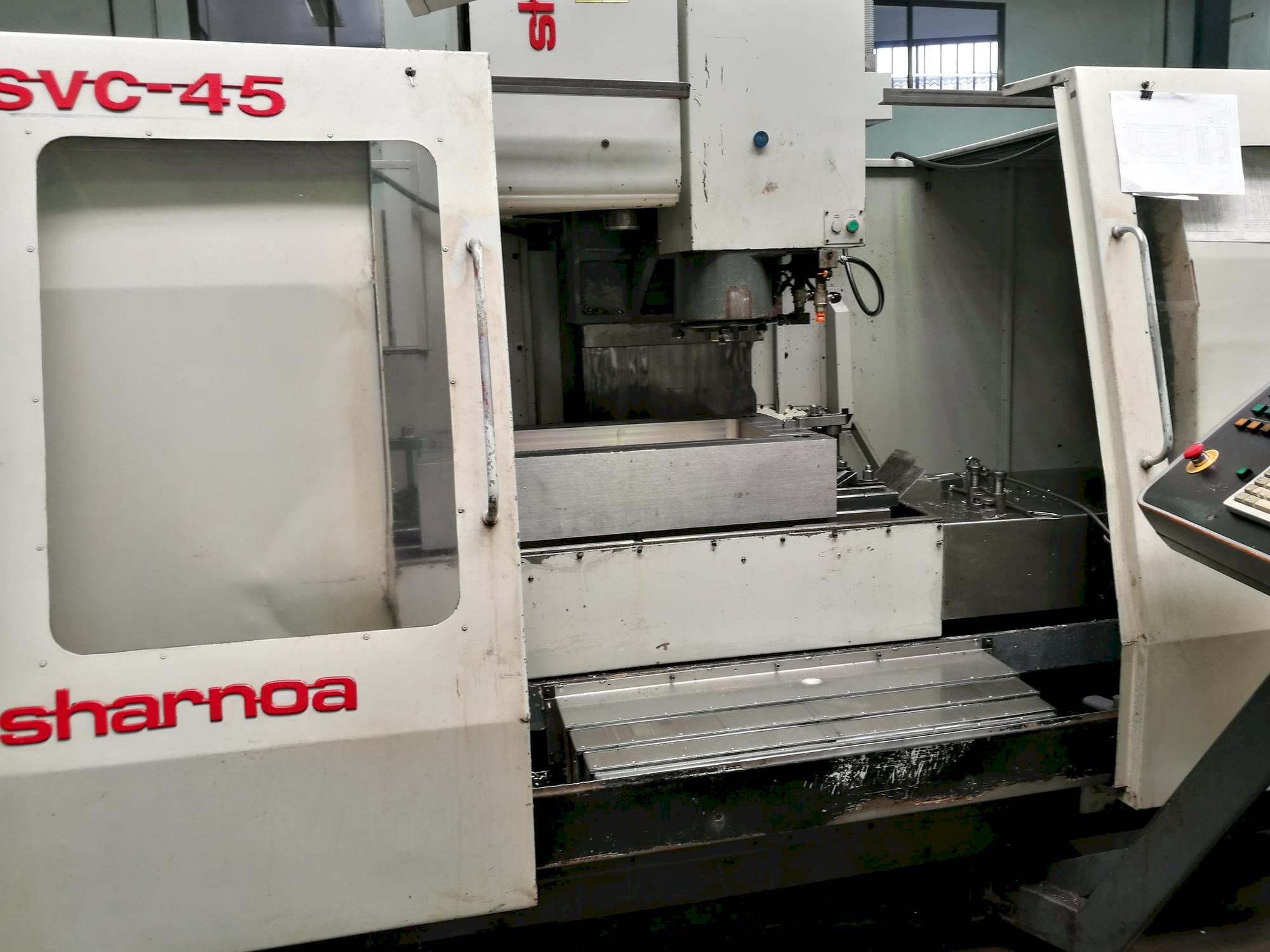

Front view of Sharnoa SVC-45 machine
Front view of Sharnoa SVC-45 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

Sharnoa - SVC-45ES-MIL-SHA-1993-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Sharnoa SVC-45 Vertical Machining Center was built in 1993 in Spain and has been operative for 20000 hours. Equipped with a Sharnoa Tiger 5 Control unit, this machine can operate with a spindle speed range of 60-6540 rpm. It incorporates travels of 1130 x 560 x 670mm. It has a really good status, as in 2016 it had a complete revision and alignment of the axes.

Overview

  • brand: Sharnoa
  • year: 1993
  • MODEL: SVC-45
  • production hours: 20000
  • application type: Milling
  • Location: Spain
  • machine type: Vertical Machining Centre
  • availability: Sold

Technical Information - Sharnoa SVC-45

General Data

  • Measurements width: 2500 mm
  • Measurements depth: 2665 mm
  • Measurements height: 2848 mm
  • Machine weight: 7500 kg

Control Unit

  • CNC main language: Spanish
  • CNC language customizable: Yes

Main drive

  • Number of spindles: 1
  • Spindle speed range: 60-6540 rpm 1/MIN

Movement

  • X-AXIS Movement: 1130 mm
  • Y-AXIS Movement: 560 mm
  • Z-AXIS Movement: 670 mm

Workpiece

  • Workpiece x: 1130 mm
  • Workpiece y: 560 mm
  • Workpiece z: 670 mm
  • Workpiece weight: 1000 kg

Table

  • Outer length: 1250 mm
  • Outer width: 500 mm

Tools

  • Slots in storage: 24
  • Max weight: 10 kg
  • Max tool diameter: 100 mm
  • Max tool length: 250 mm
  • Type of tool holder: BT-40

Media

  • Main electronic connection: 220 V
  • Power consumption: 30 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
