SPINNER - H630DE-MIL-SPI-2012-00002

Name: SPINNER H630
Brand: SPINNER
SKU: DE-MIL-SPI-2012-00002
Price: 13100250 INR
Availability: InStock

Rs. 13,100,250

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used SPINNER H630 For Sale | gindumac.com

Show in original language

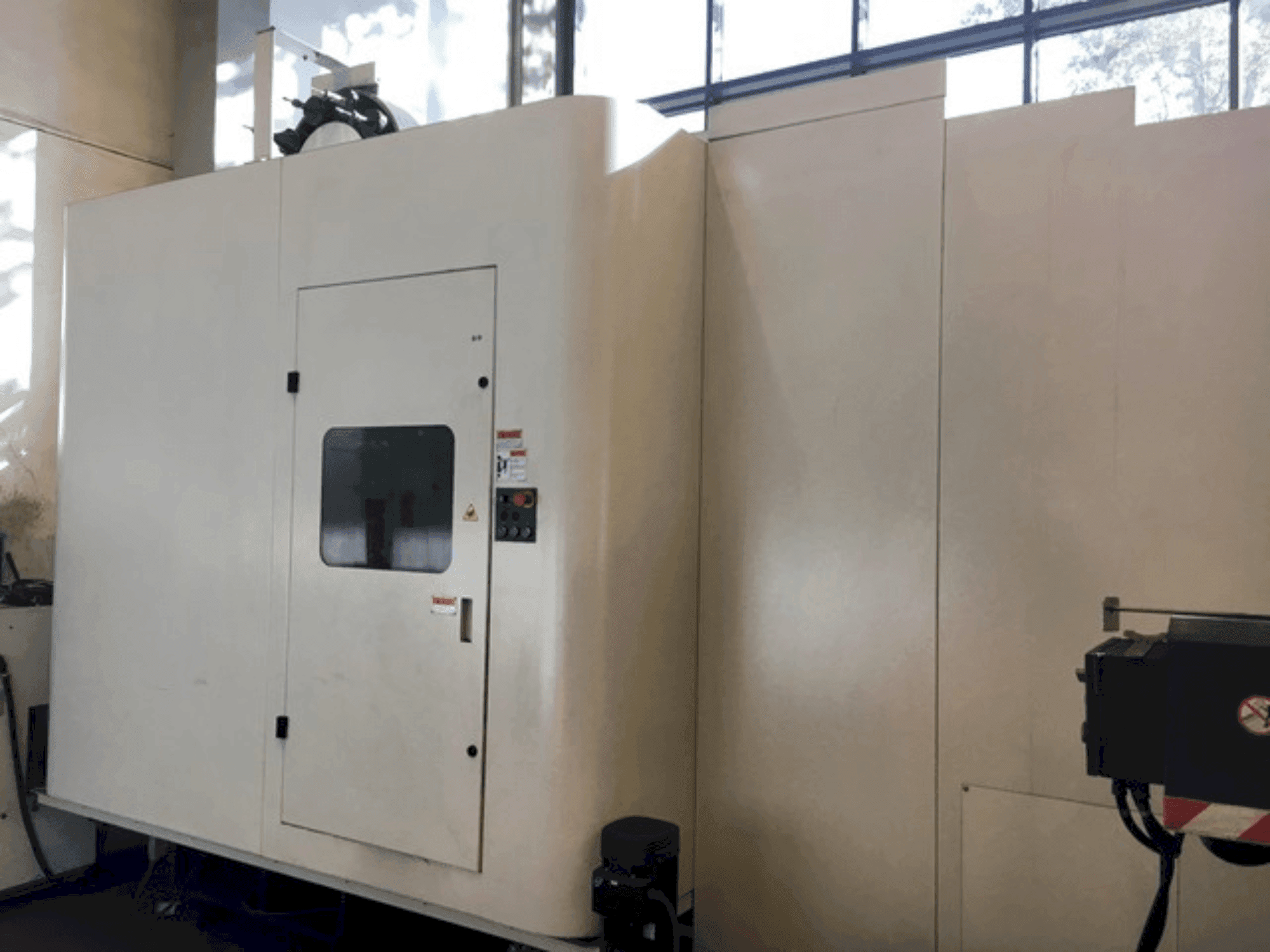

This 4-axis SPINNER H630 horizontal machining center was manufactured in 2012. Ideal for precision engineering, it offers robust construction and reliability for various machining tasks. Consider the opportunity to buy this SPINNER H630 horizontal machining center. Contact us for more information.

Overview

brand: SPINNER
year: 2012
MODEL: H630
production hours: 6348
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
control unit brand: FANUC

Technical Information - SPINNER H630

General Data

Measurements width: 3470 mm
Measurements depth: 5970 mm
Measurements height: 3362 mm
Machine weight: 23000 kg

Control Unit

Brand: FANUC
Model: oi-MD

Main drive

Spindle speed range: 10000 rpm (SK40) / 6000 rpm (SK50) 1/MIN
Spindle motor power: 22 / 26
Number of axis: 4

Movement

X-AXIS Movement: 1000 mm
X-AXIS Rapid traverse: 32 m/min
Y-AXIS Movement: 850 mm
Y-AXIS Rapid traverse: 32 m/min
Z-AXIS Movement: 850 mm
Z-AXIS Rapid traverse: 32 m/min

Table

Table load: 1000 kg

Tools

Number of index: 60 (option 100) / 40 (option 60/100)
Max weight: 8 kg / 20 kg
Max tool length: 450 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Torque max (nm): 139 / 164 or 556 / 656
- - Connected load: 42 kva
- - Table size: 2 x 630 x 630 mm
- - Height top edge of table (from floor): 993 mm
- - Clear width of door opening: 1200 mm
- - Table holes: m16
- - Tool to tool: 5 seconds
- - Standard double arm changer

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
