- ➤ Used SPINNER MVC 1100 B Vertical Machining Center
Show in original language

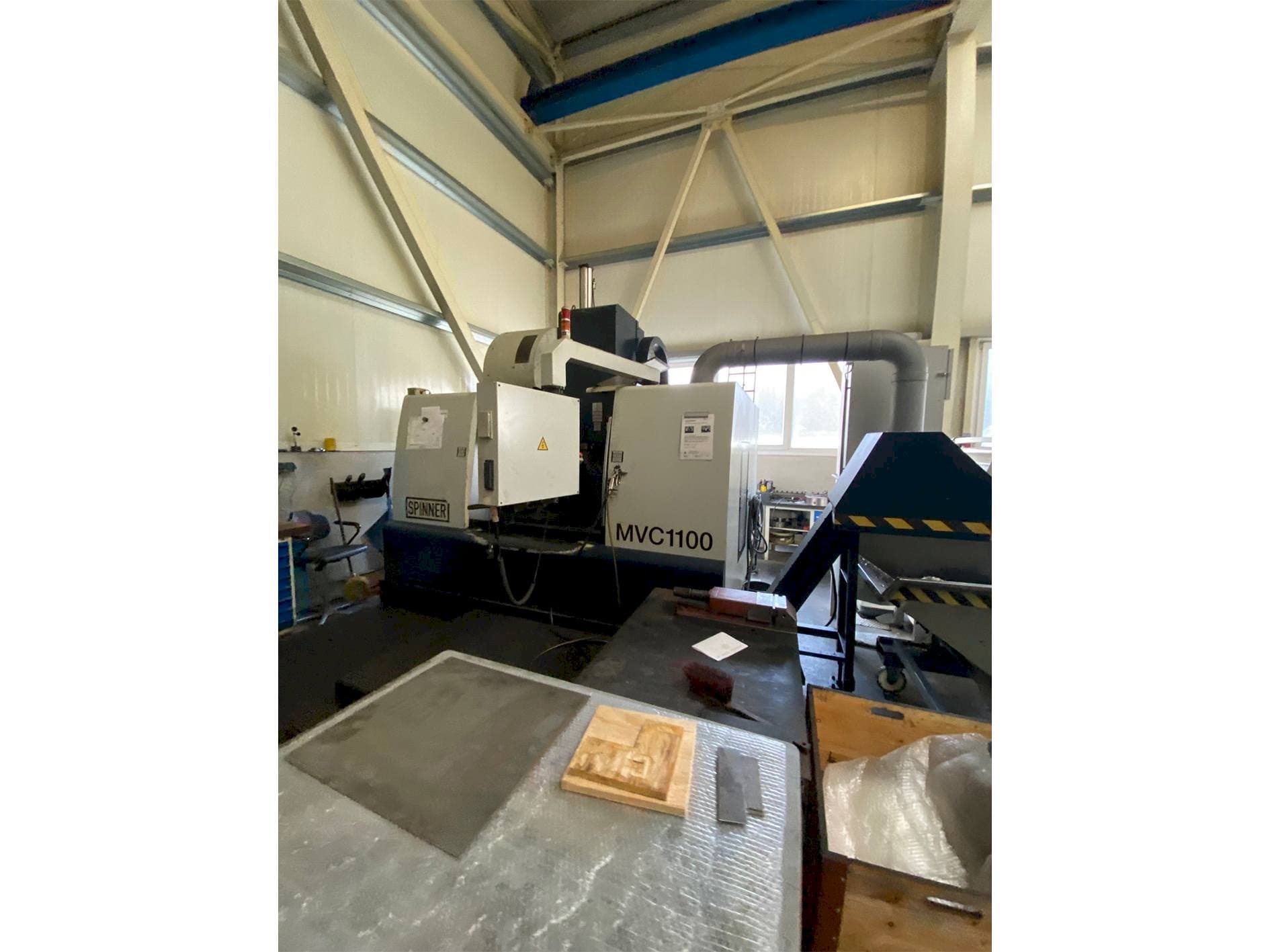

This SPINNER MVC 1100 B Vertical Machining Center was manufactured in the year 2007 in Germany. It is operated through a Siemens 840 D with SHOP Mill control unit. This 4 axis machine can operate with a spindle speed up to 6000 rpm.
Overview
- brand: SPINNER
- year: 2007
- MODEL: MVC 1100 B
- application type: Milling
- Location: Austria
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - SPINNER MVC 1100 B
General Data
- Machine weight: 8000 KG
Control Unit
- Model: 840 D with SHOP Mill
- Brand: SIEMENS
Main drive
- Spindle speed range: 6000 RPM 1/MIN
- Spindle motor power: 25 kW
- Number of axis: 4
Movement
- X-AXIS Movement: 1100 mm
- X-AXIS Rapid traverse: 18 m / min
- Y-AXIS Movement: 610 mm
- Y-AXIS Rapid traverse: 18 m / min
- Z-AXIS Movement: 610 mm
- Z-AXIS Rapid traverse: 15 m / min
- B-AXIS Movement: 0.001 prepared for 4 th axis ° MM
Table
- Outer length: 1200 mm
- Outer width: 600 mm
- Table load: 1000 kg
Tools
- Number of index: 24
- Type of tool holder: SK 50
Additional Information
- Technical Machine Benefits:
- - It has internal cooling system
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
