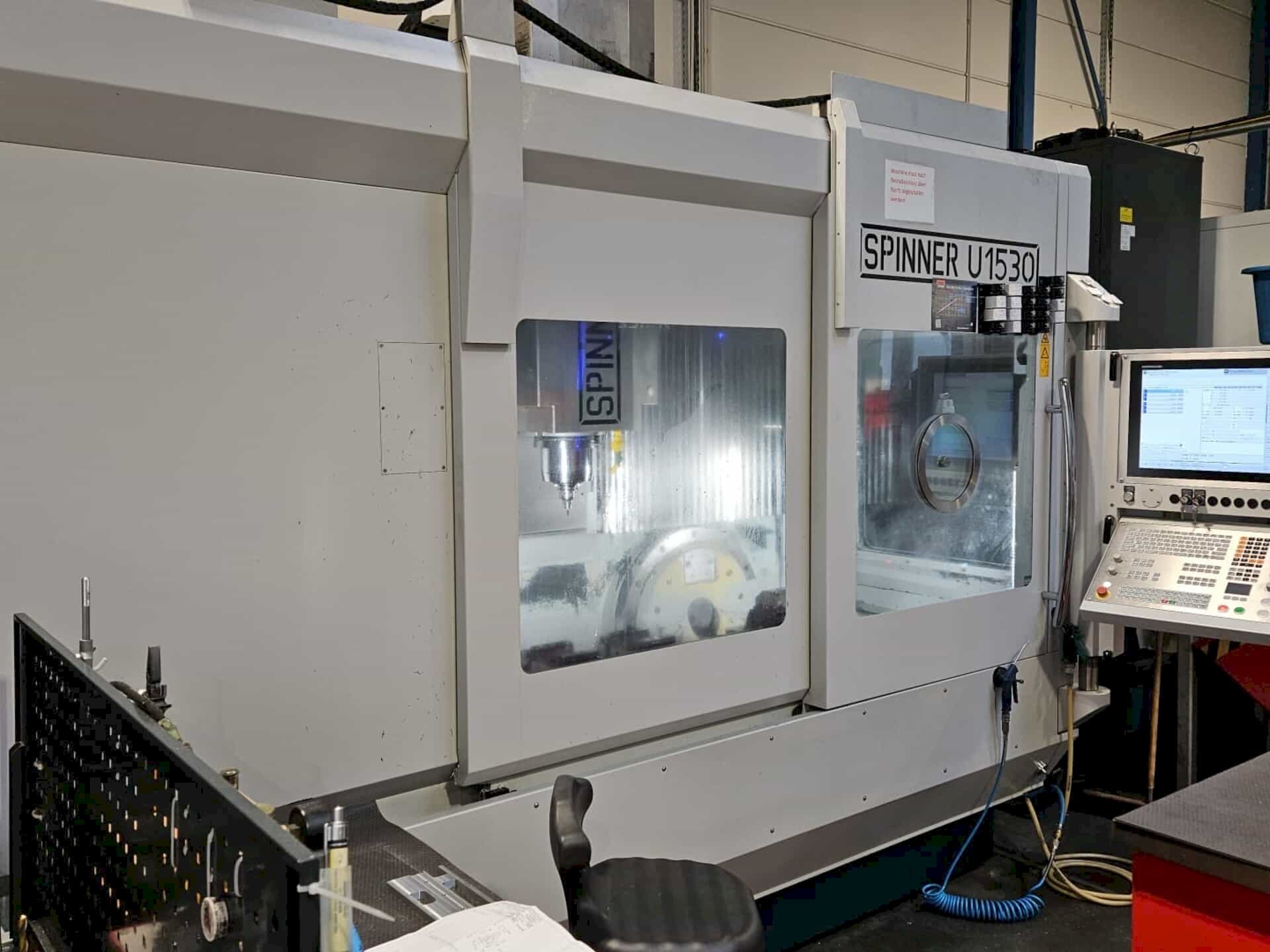

SPINNER U 1530

Photo Gallery

SPINNER - U 1530DE-MIL-SPI-2020-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used SPINNER U 1530 For Sale | gindumac.com

Show in original language

This 5-axis SPINNER U 1530 vertical machining center was manufactured in 2020. It offers advanced capabilities for complex and precise machining tasks. Consider the opportunity to buy this SPINNER U 1530 vertical machining center. Contact us for more information.

Overview

brand: SPINNER
year: 2020
MODEL: U 1530
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - SPINNER U 1530

Control Unit

Brand: HEIDENHAIN
Model: TNC 640

Main drive

Number of axis: 5

Movement

X-AXIS Movement: 1530 mm
Y-AXIS Movement: 530 mm
Z-AXIS Movement: 465 mm

Additional equipment

- 2-Axis Rotary Tilting Table: Diameter: 650 mm in precision design "T" / Direct measuring systems for B- and C-axes / Hydraulic brake for B-axis (tilting) and C-axis (rotary) for increased rigidity during static roughing operations
- Stationary Table: Positioned on the left in the work area (U-1530)
- Tool Interface: Tool holder SK40 DIN69871 with pull stud DIN69872-A
- Tool Magazine: 122 tool stations with high-speed changer and double-arm gripper
- Fast-moving tool chain design, separated from the work area by a pneumatic flap

Additional Information

Machine Benefits

Technical Machine Benefits:
- - High-precision milling spindle: up to 12000 rpm / 22 kw / 120 nm (10% duty cycle)
- - In-line spindle with direct drive (no belt)
- - Automatic deactivation of spindle air seal to save energy and reduce noise during idle times
- - Required leveling elements at the machine bed for alignment
- - Full splash guard enclosure with work area lighting
- - Direct measuring systems: integrated in x, y, and z axes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
