SPINNER U5-1530

Photo Gallery

SPINNER - U5-1530DE-MIL-SPI-2023-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used SPINNER U5-1530 For sale | gindumac.com

Show in original language

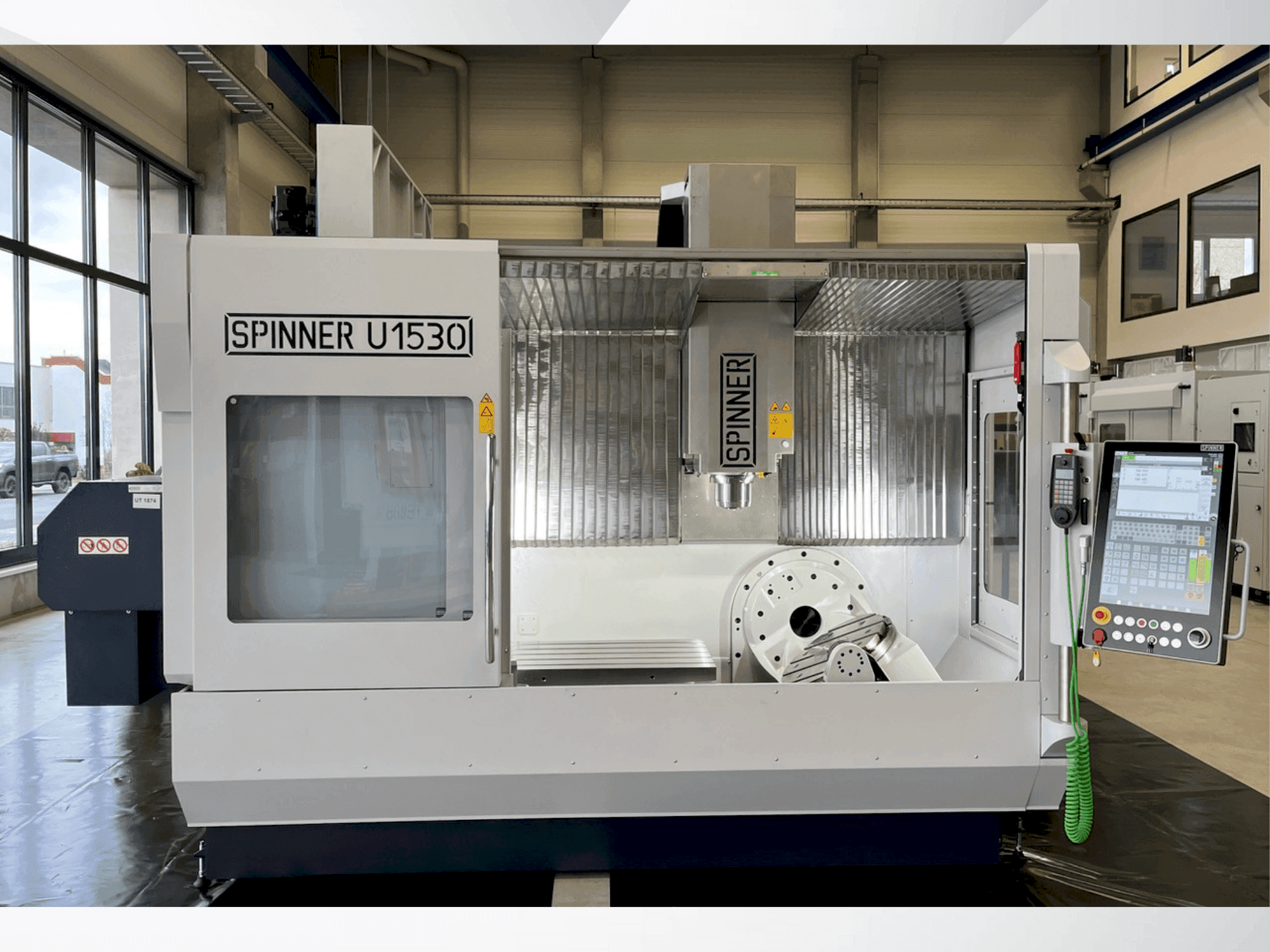

This 5-axis SPINNER U5-1530 vertical machining center was manufactured in 2023. It features a SIEMENS sinumerik one control, Spios 24 touch, a combination rotary tilting table, and a fixed table. Equipped with a Blum spindle probe TC52, high pressure through spindle, and a chip conveyor. A great opportunity to buy this SPINNER U5-1530 vertical machining center. Contact us for further details regarding this vertical machining center.

Overview

brand: SPINNER
year: 2023
MODEL: U5-1530
production hours: 47
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - SPINNER U5-1530

Control Unit

Model: Sinumerik one - Spios 24 touch
Brand: SIEMENS

Main drive

Spindle speed range: 12000 rpm 1/MIN
Tool taper: SK 40
Number of axis: 5

Movement

X-AXIS Movement: 1530 MM
Y-AXIS Movement: 530 MM
Z-AXIS Movement: 465 MM

Table

Table load: 500 kg

Media

Chip conveyor: Yes

Additional Information

Additional equipment

Number of Tools: 54 / IKZ: Yes (22 bar)
Combination rotary tilting table and fixed table / Blow air on the spindle stock
Blum spindle probe TC52 / 2-axis rotary tilting table: Diameter 650 mm / Swiveling Range: B = 5°(-90°)/+110°
Fixed table on the left in the work area: Clamping device top plate 160 mm removable
Direct measuring systems in X/Y/Z, B/C
P-valve for zero point turbo spark / Blowing air on the headstock / Robot flap on the right
UNIROB universal robot interface / BLUM spindle probe TC52 / GRESSEL zero-point clamping package
SW package ONE-Dyn. Operate 3A-Fr. 3D simulation / Cycle 996 for kinematics measurement
DFX-Reader

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

Technische Daten 2 SPINNER U5-1530- 54T (2023).pdf
