➤ SPINNER U5-620 | Vertical Machining Center For Sale

Show in original language

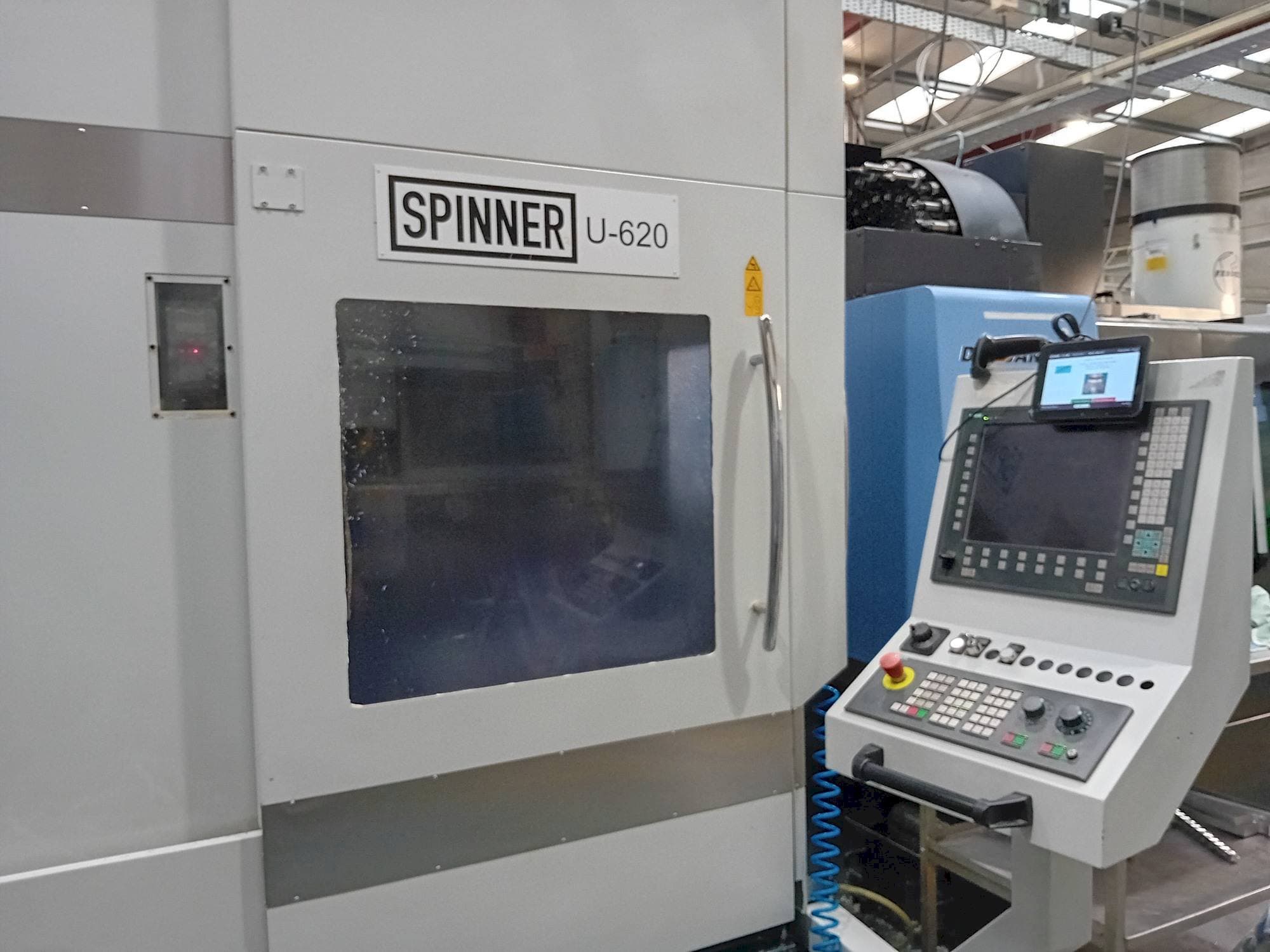

This Spinner U5-620 Vertical Machining center was manufactured in the year 2016 in Italy and has 13279 production hours. It is equipped with a SIEMENS 840D SL control unit and has 4+1 axis. The machine has a spindle speed of 12000 rpm.

Overview

brand: SPINNER
year: 2016
MODEL: U5-620
production hours: 13279
application type: Milling
Location: Ireland
machine type: Universal Machining Centre
control unit brand: SIEMENS

Technical Information - SPINNER U5-620

General Data

Measurements width: 2260 mm
Measurements depth: 2415 mm
Measurements height: 3016 mm
Machine weight: 7200 kg

Control Unit

Model: 840D SL
CNC main language: English
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Number of axis: 4+1

Movement

X-AXIS Movement: 620 mm
Y-AXIS Movement: 520 mm
Z-AXIS Movement: 460 mm
B-AXIS Movement: +60/-140 º MM
C-AXIS Movement: 360º MM

Workpiece

Workpiece weight: 250 kg

Table

Outer length: 650 mm

Tools

Slots in storage: 54
Max weight: 7 kg
Max tool diameter: 76 mm
Max tool length: 290 mm
Type of tool holder: BT40

Media

Main electronic connection: 400 V
Chip conveyor: Yes

Additional Information

Machine history

End product: Medical device components
Industries: Medical device

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
