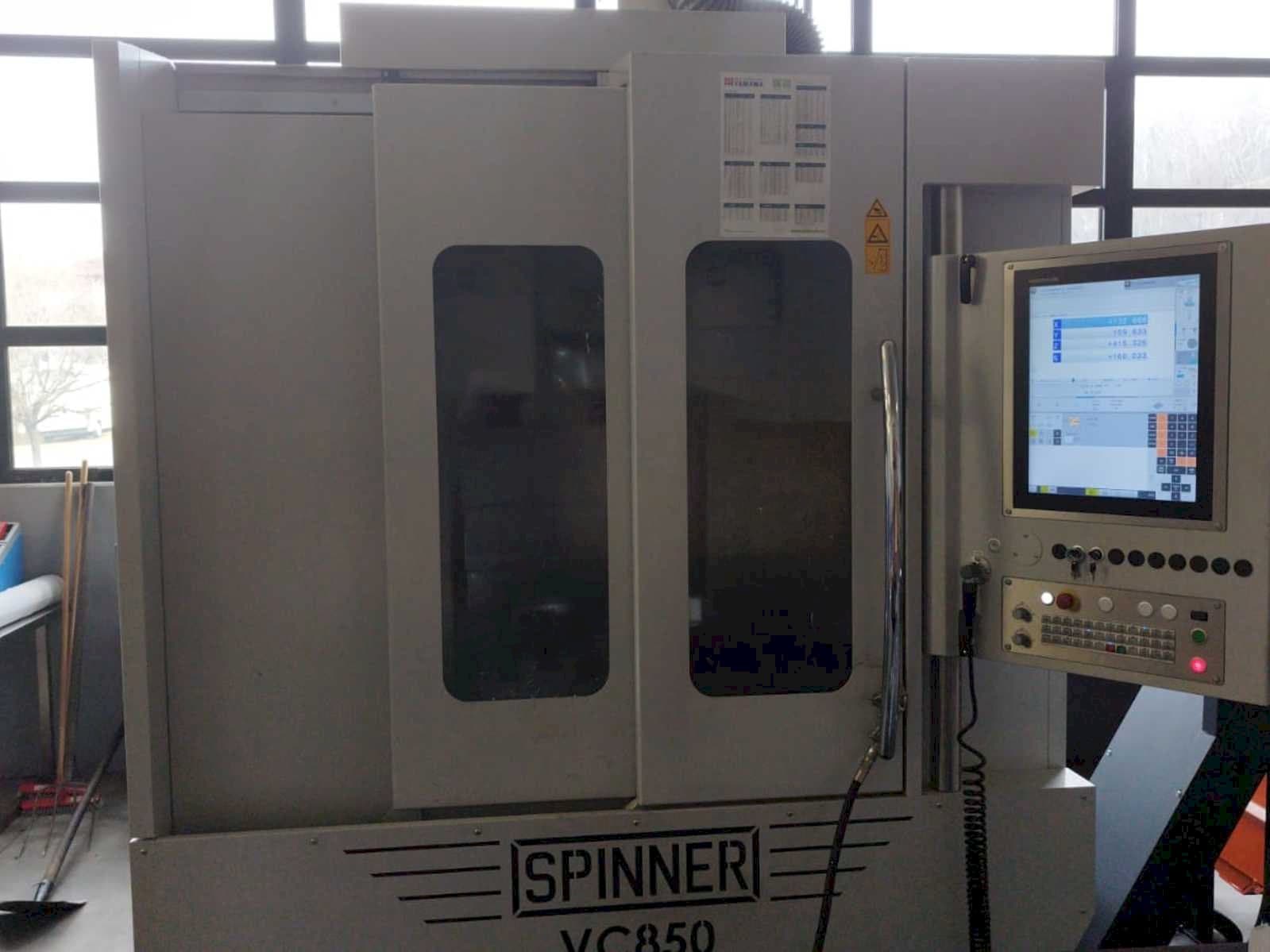

SPINNER VC 850 Vertical Machining center

Show in original language

This SPINNER VC 850 Vertical Machining center was manufactured in the year 2022 in Germany and has 900 production hours. It is equipped with a HEIDENHAIN TNC 620 control unit and has 3 axis. The machine has a spindle speed of 12000 rpm.

Overview

brand: SPINNER
year: 2022
MODEL: VC 850
production hours: 900
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - SPINNER VC 850

General Data

Measurements width: 1850 mm
Measurements depth: 1800 mm
Measurements height: 2420 mm
Machine weight: 4500 kg

Control Unit

Model: TNC 620
Brand: HEIDENHAIN

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 22,6/11,5 kW
Tool taper: SK 40

Movement

X-AXIS Movement: 850 mm
Y-AXIS Movement: 510 mm
Z-AXIS Movement: 510 mm

Workpiece

Workpiece weight: 500 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle nose to table distance 120-630 mm.
- - Coolant through spindle
- - Coolant through spindle
- - Rapid feeds 40 m/min
- - Tool changer 32 positions
- - Ce
Qualitative Machine Benefits:
- - Machine is in perfect condition!

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
