➤ Used STAR MICRONICS SB-16 lathe For Sale | gindumac.com

Show in original language

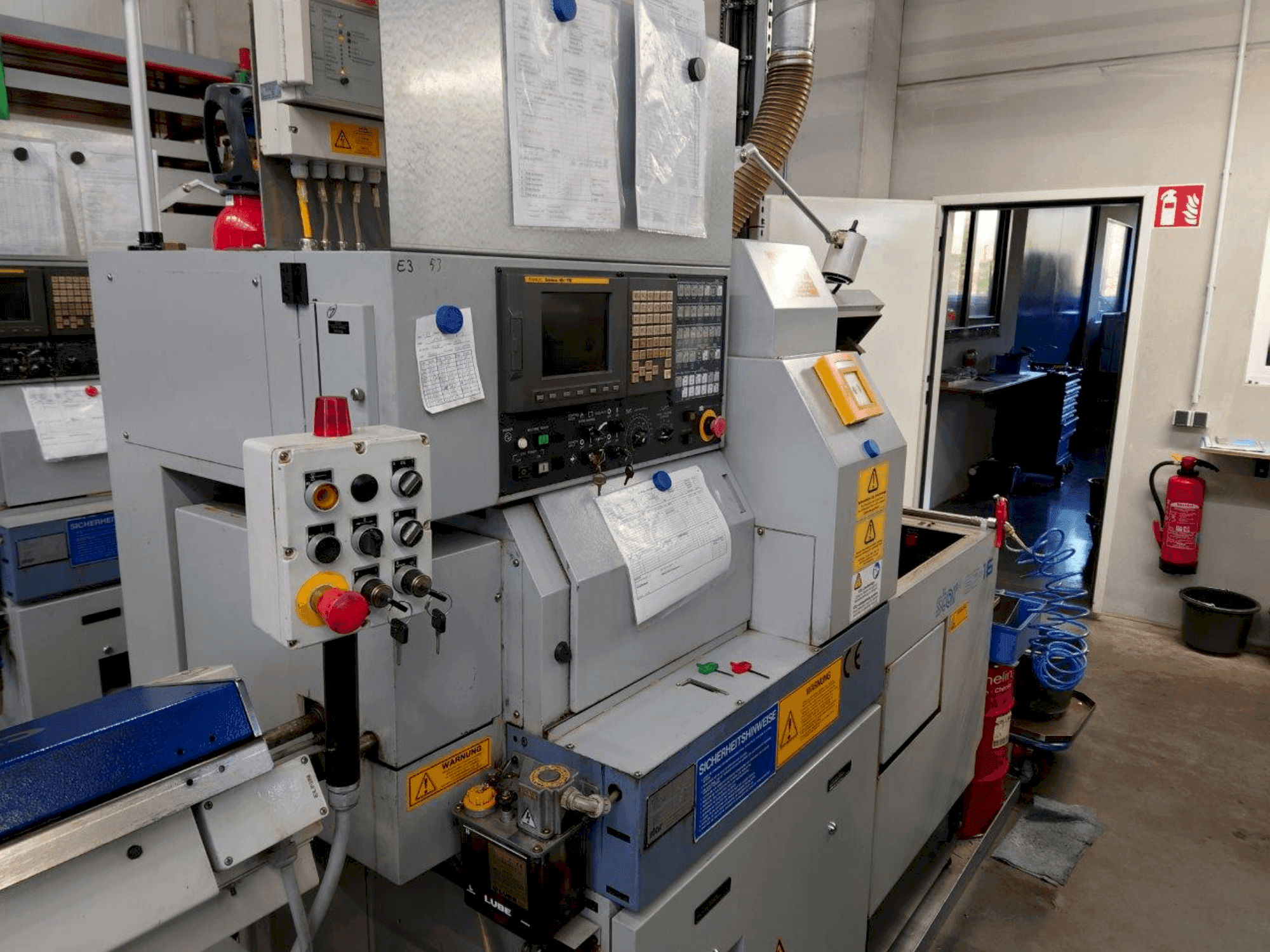

This STAR MICRONICS SB-16 lathe was manufactured in 2006. It features a Fanuc 18i-TB control unit, Iemca CH220/32L loading magazine for bar lengths up to 3.2m, and a maximum passage of ø16mm. Equipped with a Batec extinguishing system, parts conveyor, and a counter spindle with Z-axis for versatile machining. The machine also includes a coolant system and central lubrication. A great opportunity to buy this STAR MICRONICS SB-16 lathe. Contact us for further details regarding this lathes .

Overview

brand: STAR MICRONICS
year: 2006
MODEL: SB-16
production hours: 32474
application type: Turning
Location: Germany
machine type: Swiss Type Turning Machine
availability: Immediately
control unit brand: FANUC

Technical Information - STAR MICRONICS SB-16

General Data

Machine weight: 1600 kg

Control Unit

Model: 18i-TB
Brand: FANUC

Main drive

Spindle speed range: 10000 rpm 1/MIN
Spindle motor power: 3.7 kW
Stroke: 205 mm

Workpiece

Workpiece drm: ø16 mm
Workpiece x: 3200 mm

Tools

Number of stations: 10

Additional equipment

- Spilled oil
- Batec extinguishing system
- Iemca CH220/32L loading magazine
- Parts conveyor belt
- Counter spindle with Z-axis, simple rear end machining
- Coolant System Capacity: Approx. 136 litres
- Central Lubrication: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 6 stations for turning tools
- - 4 stations for front side machining
- - 2 driven tools for cross machining with 0. 4 kw, s max=7,500

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
