Star - SR-32J type NIT-TUR-STA-2018-00002

Name: Star SR-32J type N
Brand: Star
SKU: IT-TUR-STA-2018-00002
Price: 9899250 INR
Availability: InStock

Rs. 9,899,250

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Used Swiss Type Turning Machine STAR SR-32J type N - 2018 - for sale | gindumac.com

Show in original language

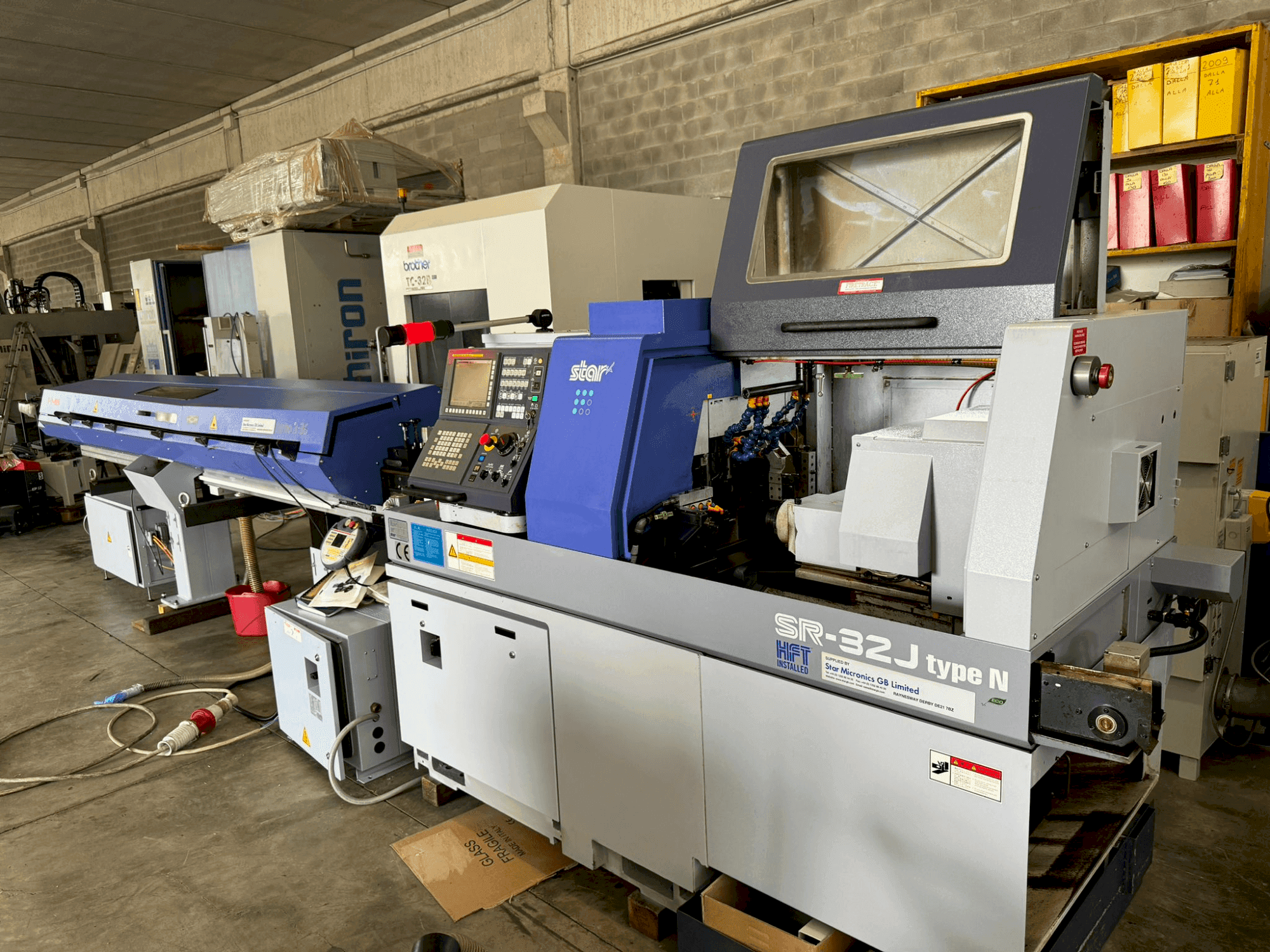

This 9-axis STAR SR-32J type N swiss type turning machine was manufactured in 2018. It offers a maximum machining diameter of 32 mm, with spindle revolutions up to 7000 rpm and a spindle motor power of 7.5/3.7 kW. Key features include a counter spindle with a maximum grip and pass diameter of 32 mm and a rapid axes advance of 24 m/min. The machine also comes equipped with a bar feeder. Contact us for more information about this swiss type turning machine.

Overview

brand: Star
year: 2018
MODEL: SR-32J type N
application type: Turning
Location: Italy
machine type: Swiss Type Turning Machine
availability: Immediately
control unit brand: FANUC

Technical Information - Star SR-32J type N

General Data

Measurements width: 1700 MM
Measurements depth: 2520 MM
Measurements height: 1000 MM
Machine weight: 2800 KG

Control Unit

Model: Series 18i-TB
Brand: FANUC

Main drive

Spindle speed range: 7000 1/MIN
Spindle motor power: 7.5 / 3.7 kW
Number of axis: 9

Tools

Max tool diameter: 13 MM

Additional equipment

- Barfeeder

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Fast forward axes at 24m/min enhances operational efficiency.
- - Max machining diameter: 32 mm
- - Rotary tool diameter: 8 mm
- - Maximum capacity in staining: fixed tool m12 x 1. 75 mm, m16 rotary tool x 1
- - Maximum milling capacity: end mill on comb slide diameter 10mm
- - Standard main spindle: useful diameter spindle hole 32mm, f37 caliper art 740
- - Shooting counter spindle: max grip and passage diameter 32 mm, spindle revolutions 7000 rpm, max piece length with frontal ejection 80 mm
- - Max workpiece length: 80 mm
Qualitative Machine Benefits:
- - Consistent machining with precision facilitated by the machine’s robust configuration and advanced control system.
- - Versatile machining capabilities with maximum usability of tools due to the dynamic axis setup.

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
