Takamaz - XD-8 PlusSK-TUR-TAK-2011-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Takamaz XD-8 Plus

Show in original language

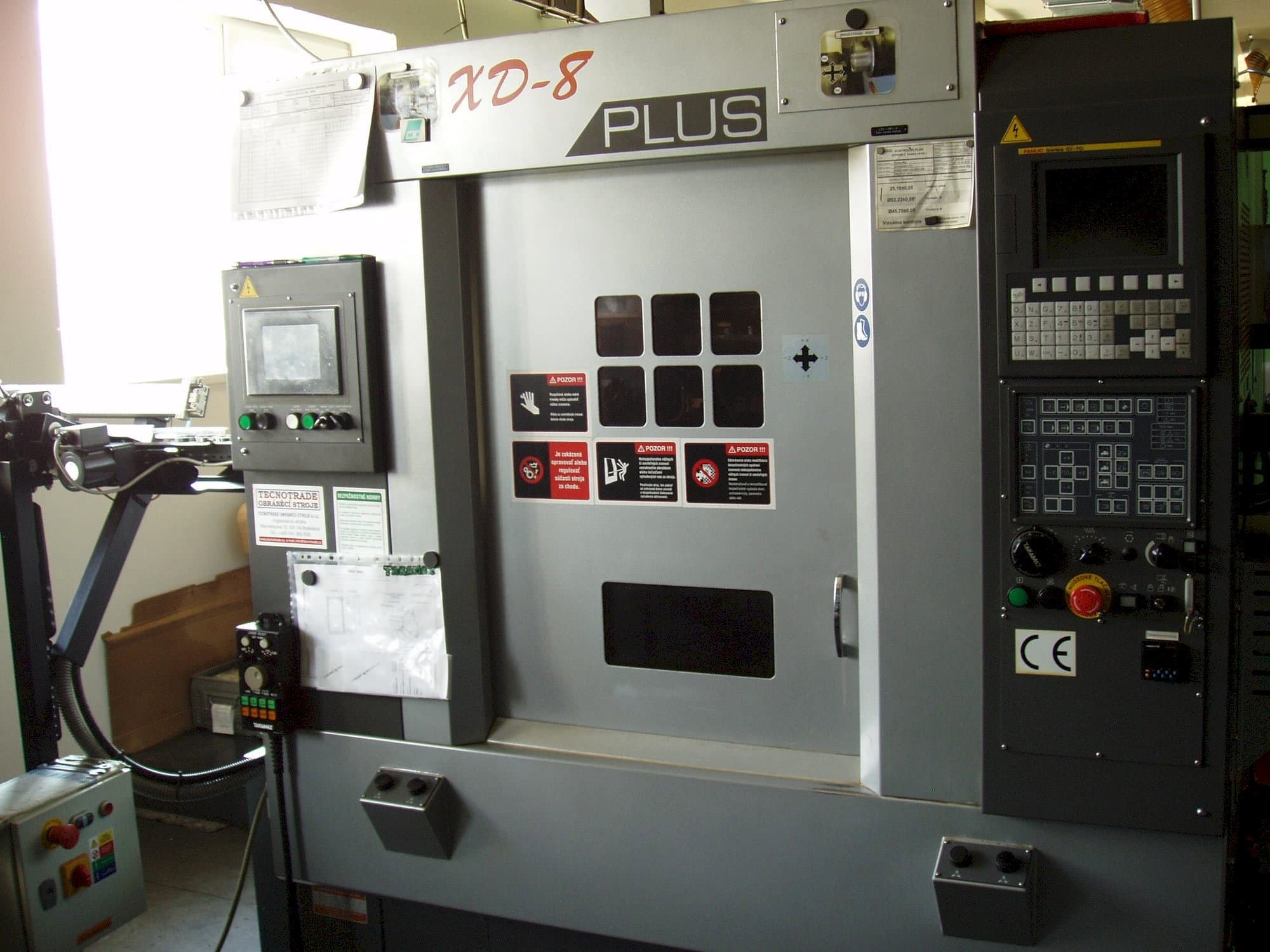

This Takamaz XD-8 Plus Lathe was built in Japan in 2011. It has been on for 20985 hours, of which 8406 are cutting hours. It is equipped with a Fanuc Series 0i-TC control unit. This 2 axis machine can work with a spindle speed up to 4500 rpm. It presents an integral loader for high-efficiency operation. This machine is in good condition.

Overview

brand: Takamaz
year: 2011
MODEL: XD-8 Plus
production hours: 20985
application type: Turning
Location: Slovakia
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Takamaz XD-8 Plus

Control Unit

Brand: FANUC
Model: Series 0i-TC

Main drive

Number of spindles: 1
Spindle speed range: 4500 1/MIN
Spindle motor power: (AC 3.7 / 2.2 kW) x 2
Number of axis: 2

Movement

X-AXIS Movement: 200 mm
X-AXIS Rapid traverse: 18 m/min
Y-AXIS Movement: 380 (±190) mm
Z-AXIS Rapid traverse: 24 m/min

Media

Main electronic connection: 200 v 50/60 hz
Power consumption: 24 kva

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Cnc 2 spindle 1 slide precision lathe
- - Spindle bearing i. D. φ65 mm
- - Automatic workpiece check
- - Integral loader for high-efficiency operation
Qualitative Machine Benefits:
- - Machine in good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
