TAKISAWA TS-4000YS Lathe

Show in original language

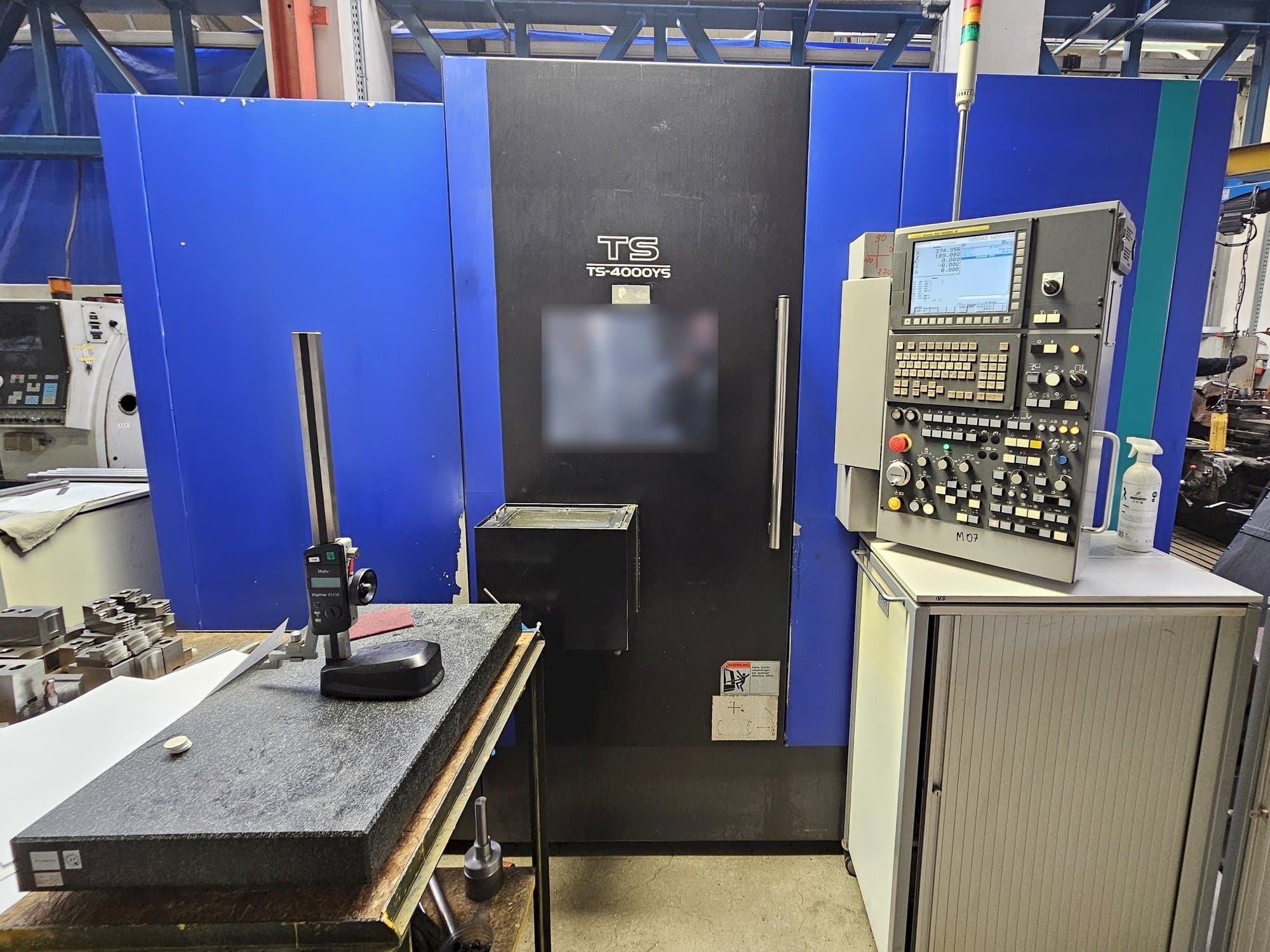

This TAKISAWA TS-4000YS Lathe was manufactured in the year 2015 and has 3333 production hours. It is equipped with a FANUC Series 32i-MODEL B control unit and has 5 axis. The machine has a spindle speed of 6000 rpm.

Overview

brand: Takisawa
year: 2015
MODEL: TS-4000YS
production hours: 3333
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: FANUC

Technical Information - Takisawa TS-4000YS

General Data

Measurements width: 3000 mm
Measurements depth: 2140 mm
Measurements height: 2300 mm
Machine weight: 6200 kg

Control Unit

Model: Series 32i-MODEL B
Brand: FANUC

Main drive

Spindle speed range: 6000 1/MIN
Number of axis: 5

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Chuck size: 10+6 inch
- - Type of turret: 15-station turret
- - Max. Turning length: 735 mm
- - Max. Turning diameter: 315 mm
- - Right spindle speed: 6000 rpm
- - Left spindle speed: 4200 rpm
- - Rotary tool speed: 6000 rpm
- - Rapid traverse rate: x: 30 / z: 30 / y: 10 / a: 30 m/min
- - Bar capacity: 82 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
