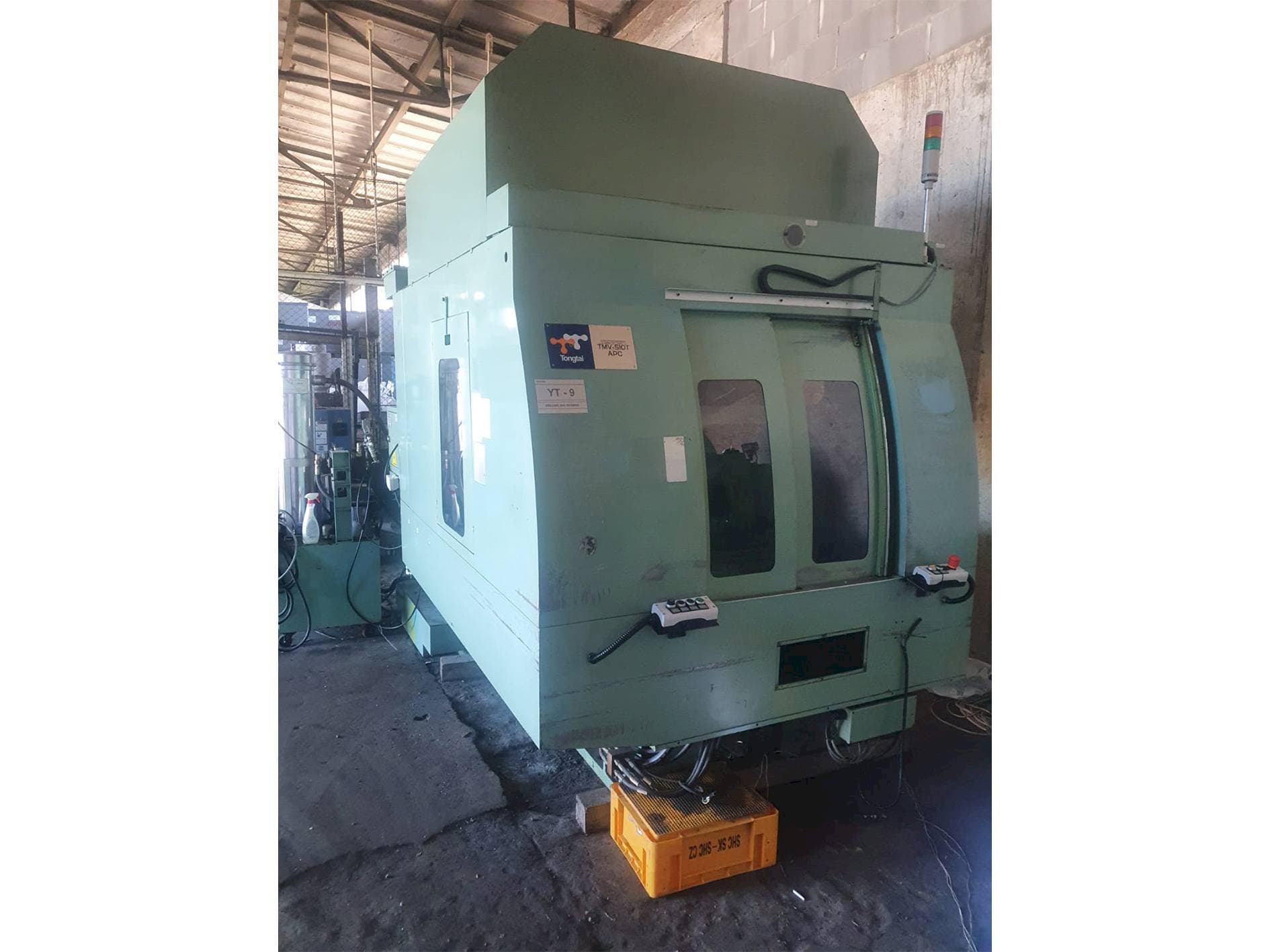

Front view of Tongtai TMV 510/APC machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Tongtai TMV-510T / APC

Photo Gallery

Tongtai - TMV-510T / APCPL-MIL-TON-2012-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Tongtai TMV-510T / APC Vertical Machining Center

Show in original language

This Tongtai TMV-510T / APC Vertical Machining Center was built 2012 in Taiwan. It is equipped with a FANUC Series Oi-MD Control unit. The machine works with a spindle speed range up to 8000 rpm and a table size 600 x 360 mm. Machine is in good condition.

Overview

brand: Tongtai
year: 2012
MODEL: TMV-510T / APC
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Tongtai TMV-510T / APC

General Data

Measurements width: 3050 mm
Measurements depth: 2000 mm
Measurements height: 2450 mm
Machine weight: 4300 kg

Control Unit

Model: Oi-MD
Brand: FANUC

Main drive

Spindle speed range: 8000 1/MIN
Spindle motor power: 5.5 / 3.7 kW

Movement

X-AXIS Movement: 510 mm
Y-AXIS Movement: 360 mm
Z-AXIS Movement: 435 mm

Table

Outer length: 600 mm
Outer width: 360 mm
Table load: 2x100 kg

Tools

Number of index: 20 pc
Max weight: 3 kg
Max tool diameter: 68 mm
Max tool length: 200 mm

Media

Main electronic connection: 400V/50Hz
Power consumption: 15 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 2 pallets
Qualitative Machine Benefits:
- - Machine in good condition
- - Documentation available
- - Tests possible

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
