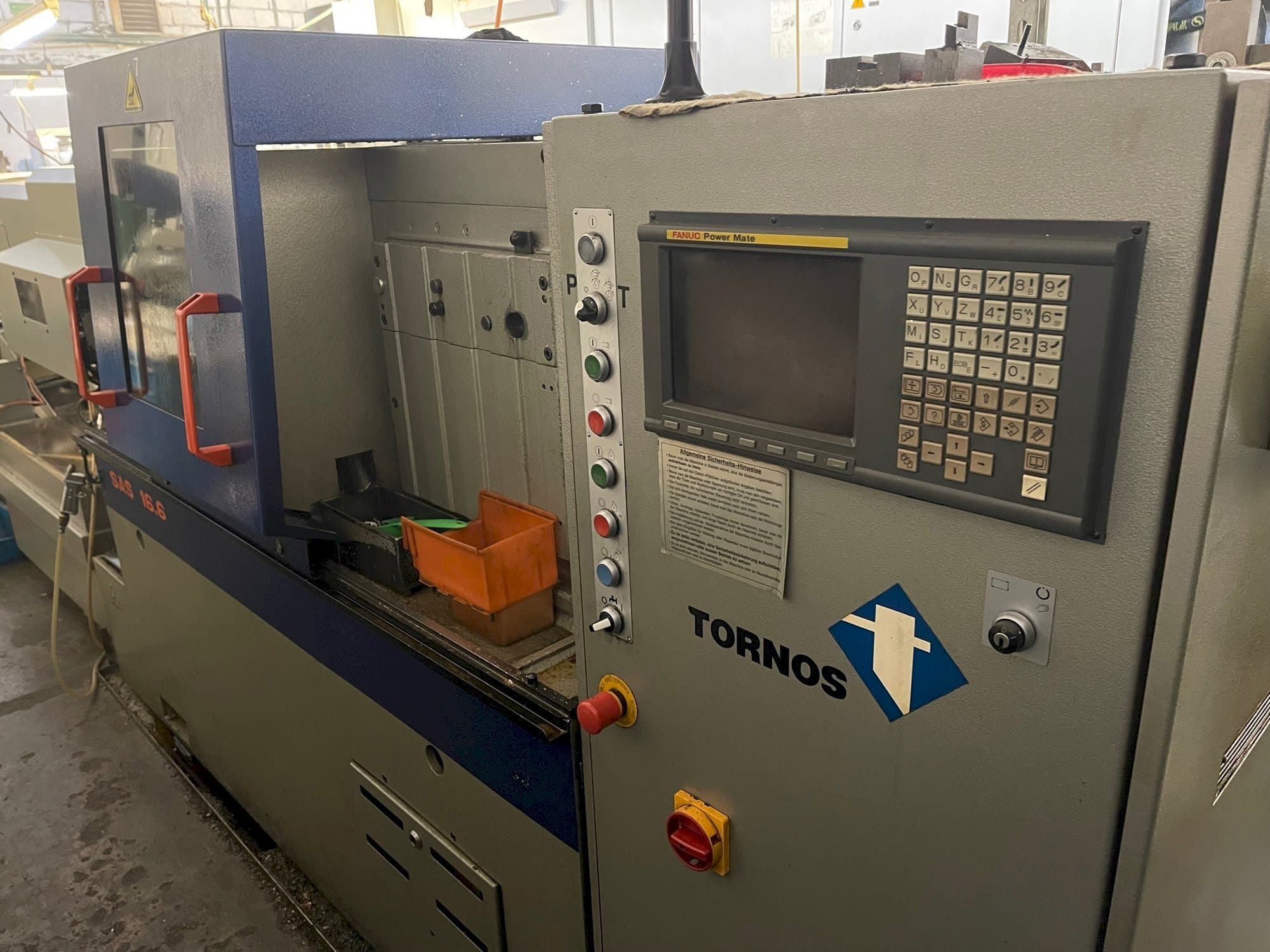

TORNOS - SAS 16.6PL-TUR-TOR-2011-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Max turning diameter: 16 mm
  • - 6 spindles, 16mm (. 630") dia. Capacity
  • - Locking of the barrel by hirt gearing
  • - Indexing of barrel by manifold
  • - Progr. Production cycle speed from 3-75 ppm
  • - Progr. Acceleration of unproductive moves from 3-75 ppm
  • - Automatic central lubrication system
  • - Cutting oil tank cap. Of 300 l
  • - Auxiliary motor for the coolant pump
  • - Electrical cabinet with cn control panel
• Qualitative Machine Benefits:
  • - The machine is in very good condition. Connected ready for tests.
  • - 10 hp (7. 5 kw) motor ac type to drive the spindles
  • - 2,4 hp (1,8 kw 3000 rpm) motor ac 5,9 nm type to drive the camshaft
  • - 6 clamping tubes capacity 16mm
  • - Standard slide pos. 1-6
  • - Bar loading basic + feed tubes
  • - Swing stop in position 6 as 29/7 including standard function cams

Payment Terms

• Payment in advance

• Asset Financing
