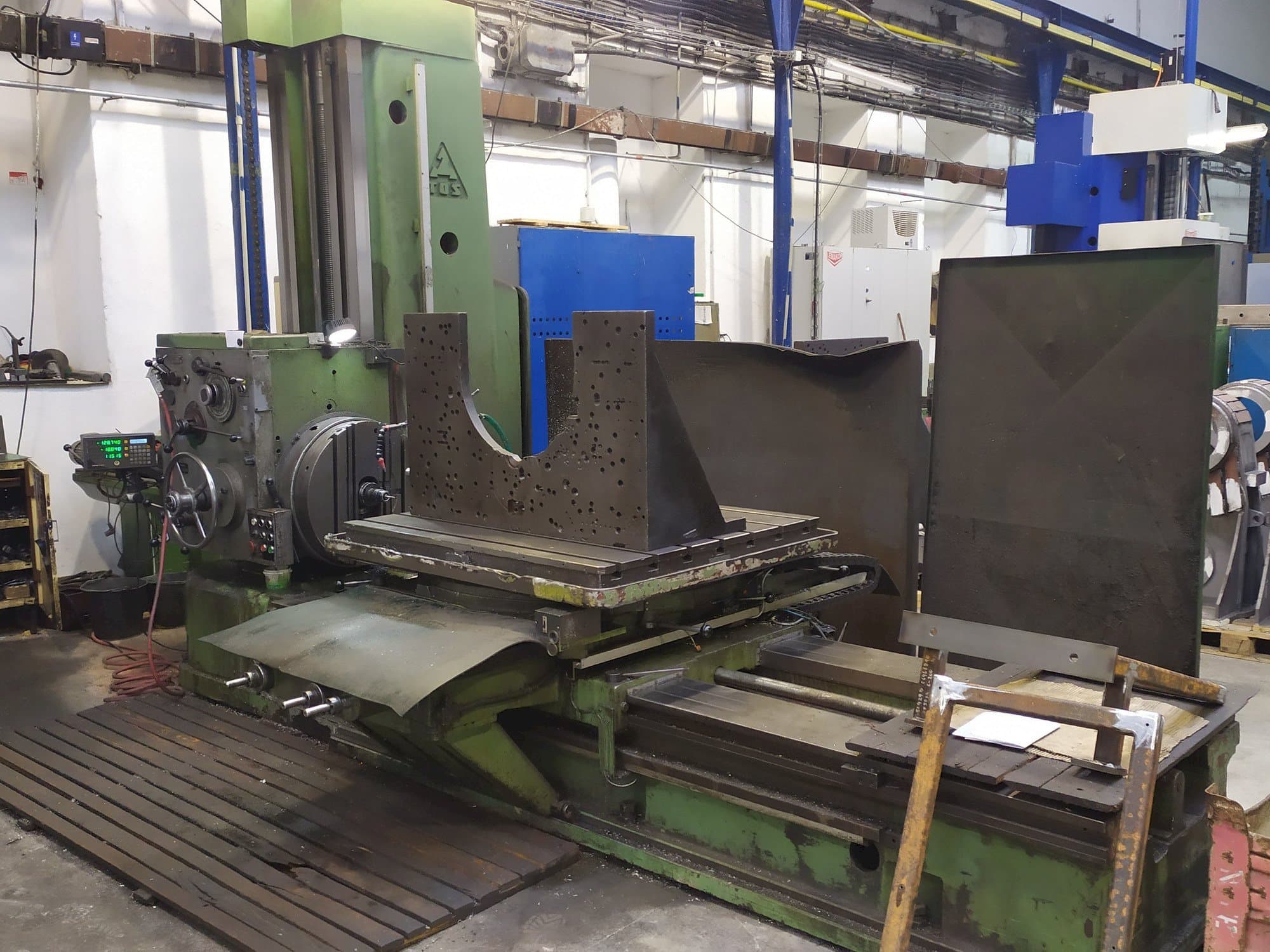

TOS H 100 A Boring Machine

Show in original language

This TOS H 100 A Boring Machine was built in 1965 in the Czech Republic and completely retrofitted in 2005. This TOS can work with a spindle speed up to 900 rpm. This strong machine presents perfectly good conditions.

Overview

brand: TOS
year: 2005
MODEL: H 100 A
application type: Turning
Location: Czech Republic
machine type: Vertical Turning Machine

Technical Information - TOS H 100 A

General Data

Machine weight: 11200 kg

Main drive

Spindle speed range: 900 1/MIN

Movement

X-AXIS Movement: 1250 mm
Y-AXIS Movement: 1120 mm
Z-AXIS Movement: 1250 mm

Workpiece

Workpiece weight: 3000 kg

Table

Outer length: 1120 mm
Outer width: 1250 mm

Tools

Type of tool holder: ISO 50

Additional Information

Machine Benefits

Qualitative Machine Benefits

Mechanical parts - guideways regrinding
X & z axes new boxed ways
Counterways injected with plastics
New spindle with iso 50
All bearings replaced
Automatic central lubrication
New screws
All worn-out parts replaced
Completely new electrics

Technical Machine Benefits

Digital measurement: iap3x pearl v3.
Spindle diameter 100 mm
Facing plate diameter 600 mm
New table optics 4x90 degrees

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
