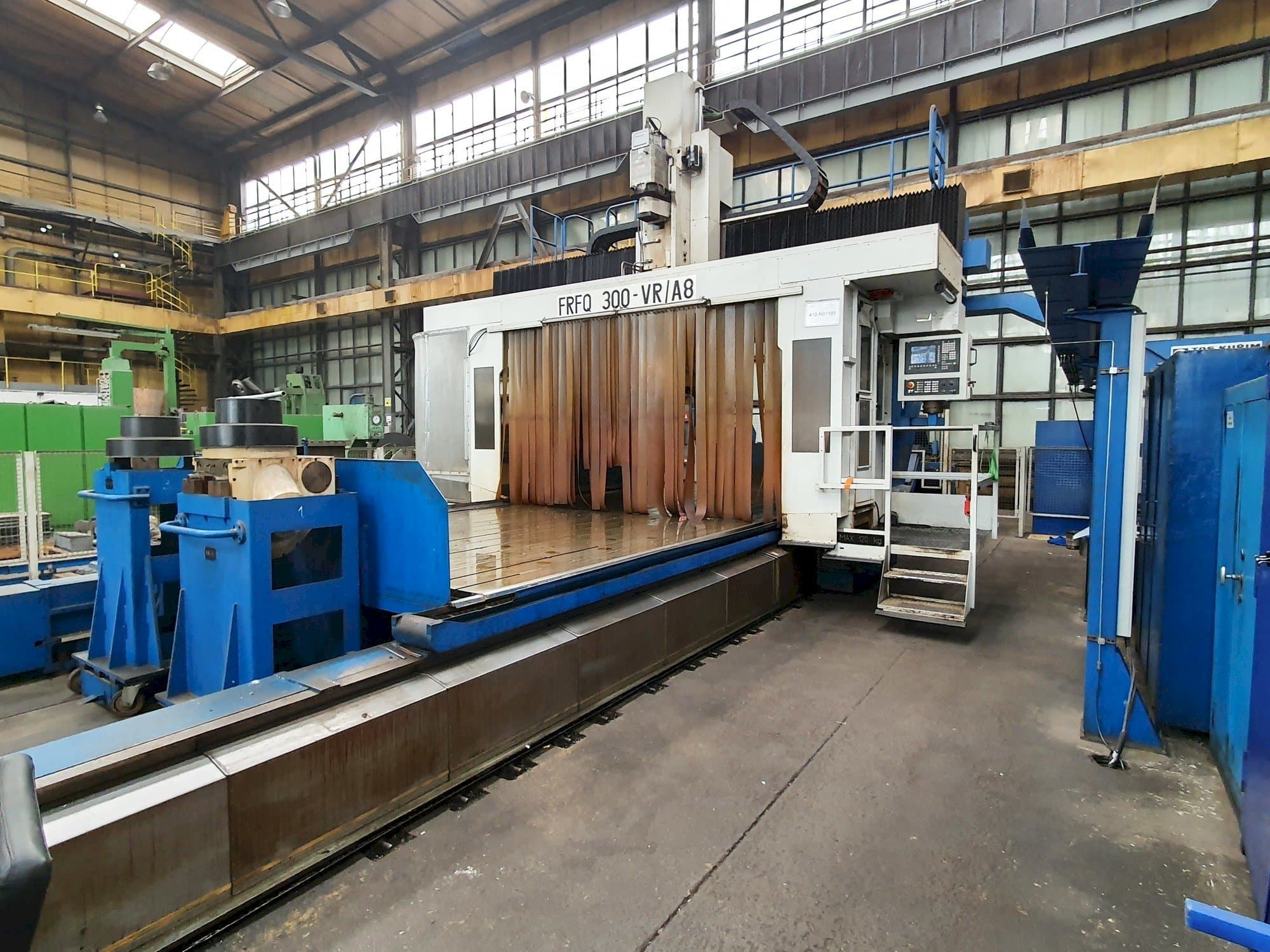

Front view of Tos KURZIM FRFQ 300-VK/A8 CNC machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TOS Kurim FRFQ 300-VK/A8 CNC

Photo Gallery

TOS Kurim - FRFQ 300-VK/A8 CNCPL-MIL-TOS-2009-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
TOS Kurim FRFQ 300-VK/A8 CNC Vertical Machining Center

Show in original language

This TOS Kurim FRFQ 300-VK/A8 CNC Vertical Machining Center was manufactured in 2009. This 3 axis machine operates through a SINUMERYC 840 D control unit. It has a spindle speed up to 4000 rpm. The machine is in a very good, working condition.

Overview

brand: TOS Kurim
year: 2009
MODEL: FRFQ 300-VK/A8 CNC
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - TOS Kurim FRFQ 300-VK/A8 CNC

General Data

Measurements width: 13500 mm
Measurements depth: 9100 mm
Measurements height: 6380 mm
Machine weight: 75000 kg

Control Unit

Model: SINUMERIK 840 D
Brand: SIEMENS

Main drive

Spindle speed range: 4000 1/MIN

Movement

X-AXIS Movement: 7000 mm
Y-AXIS Movement: 3800 mm
Z-AXIS Movement: 1500 mm

Table

Table load: 4000 kg/m2

Media

Main electronic connection: 400V / 50 Hz
Power consumption: 60 kVA
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Range of working feeds - 1 ÷ 700 mm / min
- - Range of working feeds - 1 ÷ 700 mm / min distance between columns 3. 550 mm
- - Table height 700 mm from the floor
- - Spindle taper - iso 50
- - Accuracy of manufactured elements - it6
- - Angular head vp2 type
- - Universal indexing head v0 type
- - Manual control of the machine easily performed from portable panel
Qualitative Machine Benefits:
- - The machine in very good, working condition.
- - Full documentation and manuals available.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
