- ➤ Used Trumpf Trumatic 2000 R Punching Machine
Show in original language

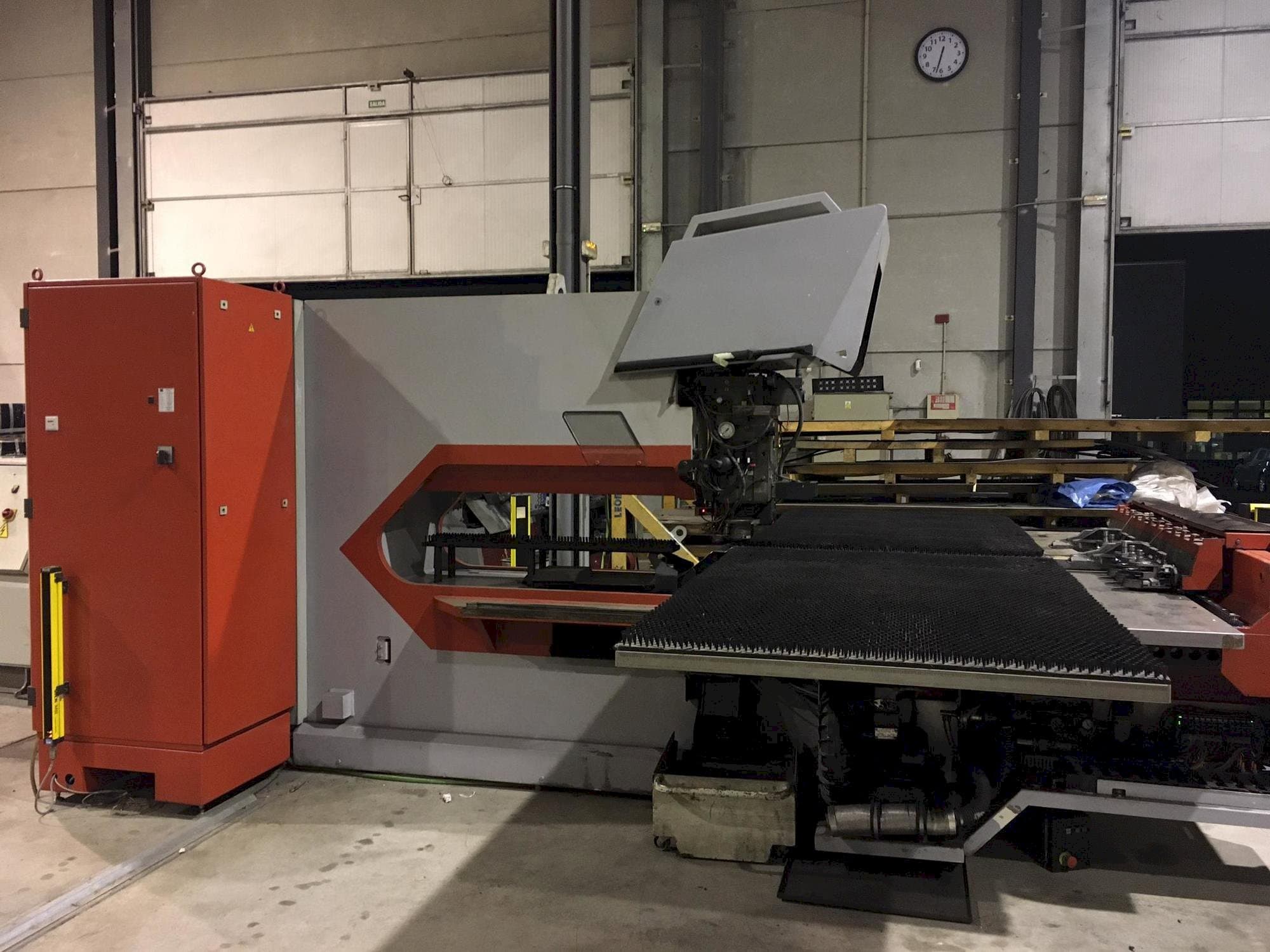

This Trumpf Trumatic 2000 R Punching Machine was made in Germany in the year 1999. It has a production record of only 19542 hours. It is operated through a Bosch control unit. This machine can work with a punching force of 180 kN.
Overview
- brand: TRUMPF
- year: 1999
- MODEL: Trumatic 2000 R
- production hours: 19542
- application type: Punching
- Location: Spain
- machine type: Punch-Laser Combination
- availability: Sold
- control unit brand: BOSCH
Technical Information - TRUMPF Trumatic 2000 R
General Data
- Measurements width: 6000 mm
- Measurements depth: 4100 mm
- Measurements height: 2070 mm
- Machine weight: 8200 kg
Control Unit
- Brand: BOSCH
Main drive
- Punching force: 180 kN
Movement
- X-AXIS Movement: 2500 mm
- X-AXIS Working Feed: 90 m/min
- Y-AXIS Movement: 1250 mm
- Y-AXIS Working Feed: 60 m/min
- X-Y-Simultaneous Working Feed: 180 m/min
- C-AXIS Movement: 360° MM
- Pa Accuracy: 0.1
- Ps Accuracy: 0.03
Workpiece
- Workpiece z: 6.4 mm
- Workpiece weight: 75 kg
Table
- Max punching diameter: 76 mm
Tools
- Slots in storage: 10
Media
- Main electronic connection: 400 V / 50 Hz
- Power consumption: 17 kVA
- Air pressure: 7-14 bar
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
