TRUMPF - Trumatic 2000 RES-PUN-TRU-2000-00002
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- Trumpf Trumatic 2000 R Punching Machine

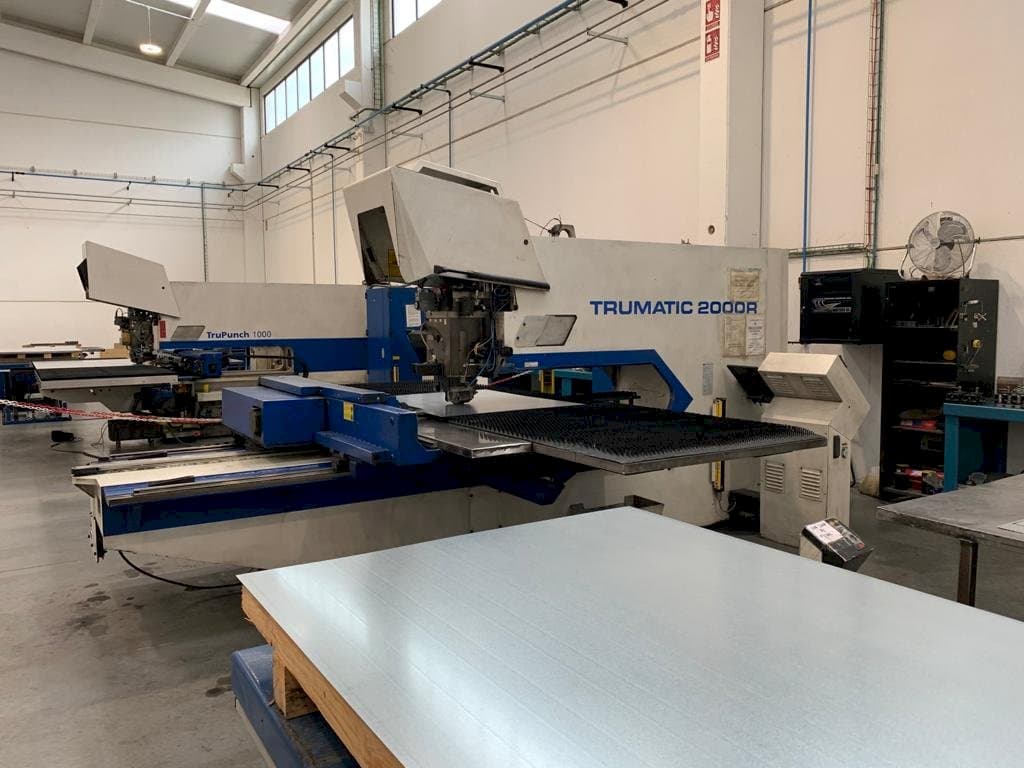

This Trumpf Trumatic 2000 R Punching Machine was manufactured in the year 2000. It is operated through a Bosch Typ3 control unit. This 2 axis machine has a punching force of 180 kN and has been working for 67000 hours. It presents a ramp evacuation for 200 x 200 mm workpieces. This machine includes several tools as 2 clamping jaws and 9 cassettes type 2000.
Overview
- brand: TRUMPF
- year: 2000
- MODEL: Trumatic 2000 R
- production hours: 67000
- application type: Punching
- Location: Spain
- machine type: Punch-Laser Combination
- availability: Sold
- control unit brand: BOSCH
Technical Information - TRUMPF Trumatic 2000 R
Control Unit
- Model: Typ3
- Brand: BOSCH
Main drive
- Punching force: 180 kn
- Number of axis: 2
Movement
- X-AXIS Movement: 1250 mm
- Y-AXIS Movement: 1250 mm
Additional equipment
- - 2 clamping jaws
- - 9 cassettes type 2000
- - 2 workpiece magazines
- - Planer tables
- - Chip drawer
- - Disk drive
- - ToPs 2000 in machine control
- - Light barrier
Additional Information
- Technical Machine Benefits:
- - Rotary tool holder
- - Automatic repositioning with clamping device
- - Automatic tool changer with 9 stations
- - Ramp evacuation for 200 x 200 mm workpieces
- - Workpiece sorting in 2 magazines
- - Multitool drive
- - Hydraulic quick shut-off
- - Punching nugget suction system
- - Bnc and rj45 network connection
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
