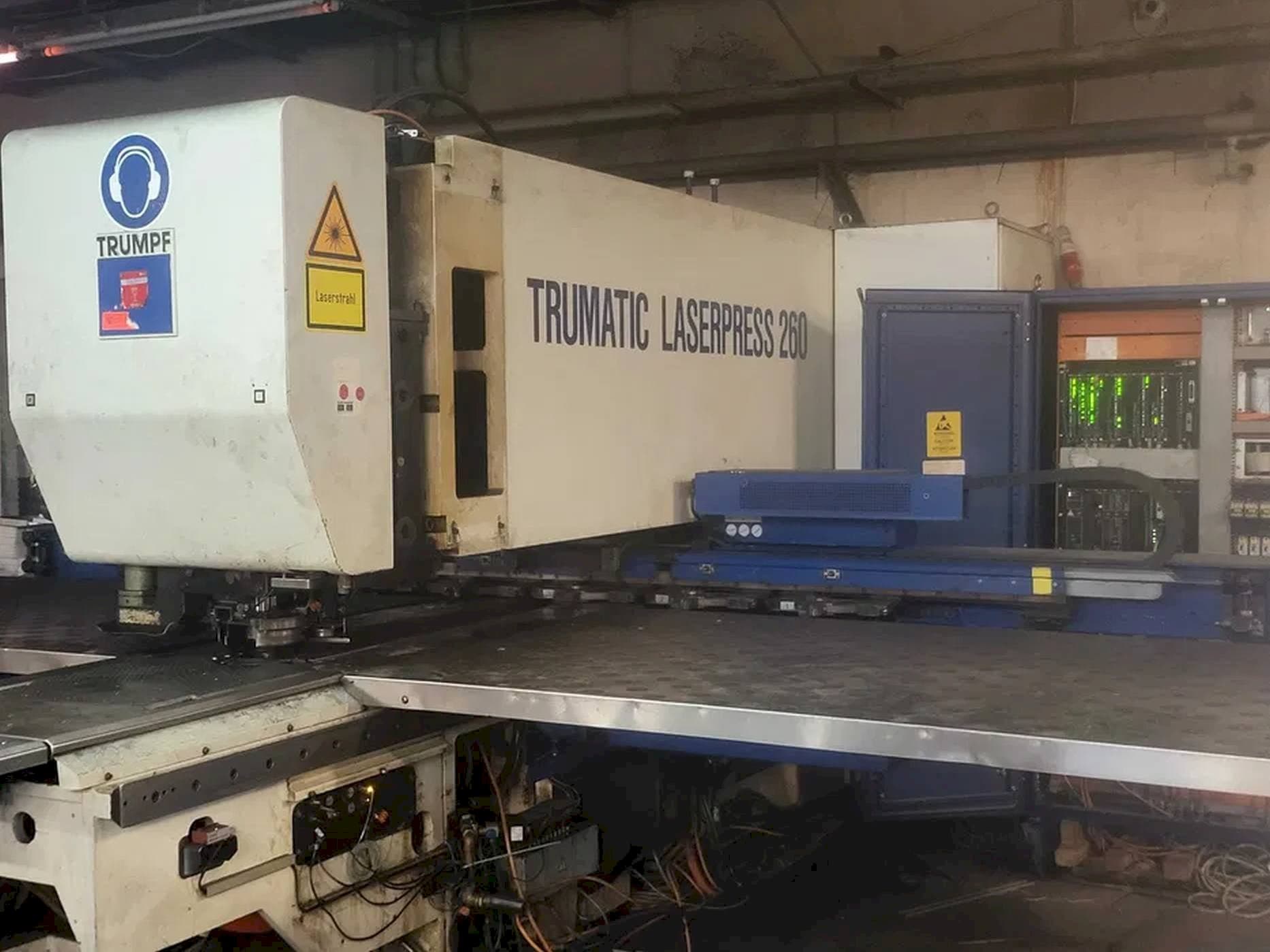

Front view of Trumpf Trumatic 260 machine
Front view of Trumpf Trumatic 260 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

TRUMPF - Trumatic 260PL-PUN-TRU-1991-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Trumpf Trumatic 260 Punching machine was manufactured in the year 1991. It is equipped with a BOSCH TRUMAGRAPH CC300 control unit. The machine has a punching force of 250 kN.

Overview

  • brand: TRUMPF
  • year: 1991
  • MODEL: Trumatic 260
  • application type: Punching
  • Location: Poland
  • machine type: CNC Punch Press
  • availability: Sold
  • control unit brand: BOSCH

Technical Information - TRUMPF Trumatic 260

Control Unit

  • Model: TRUMAGRAPH CC300
  • Brand: BOSCH

Main drive

  • Punching force: 250 kN

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Working area range : 1300 x 2500 mm + repositioning
      • - Maximum thickness of sheet : 6,4 mm
      • - Maximum weight of processed sheet : 150 kg
      • - Maximum tool diameter : 76. 2 mm
      • - Maximum traverse speed, x and y axes simultaneously : 108 m/min
      • - Maximum traverse speed, x axis : 90 m/min.
      • - Maximum traverse speed, y axis : 60 m/min.
      • - Number of tools in the magazine : 10 pcs.
      • - Tool change time : 6. 5 sec.
      • - Maximum tool rotation speed, c axis : 3600/sec.
    • Qualitative Machine Benefits:
      • - Maximum number of strokes : 500/min.
      • - Software accuracy : 0. 01 mm
      • - Ramp for small workpieces
      • - Retractable sheet holders (no repositioning required with standard sheets)
      • - 7 sheet holders
      • - Multitool operation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
