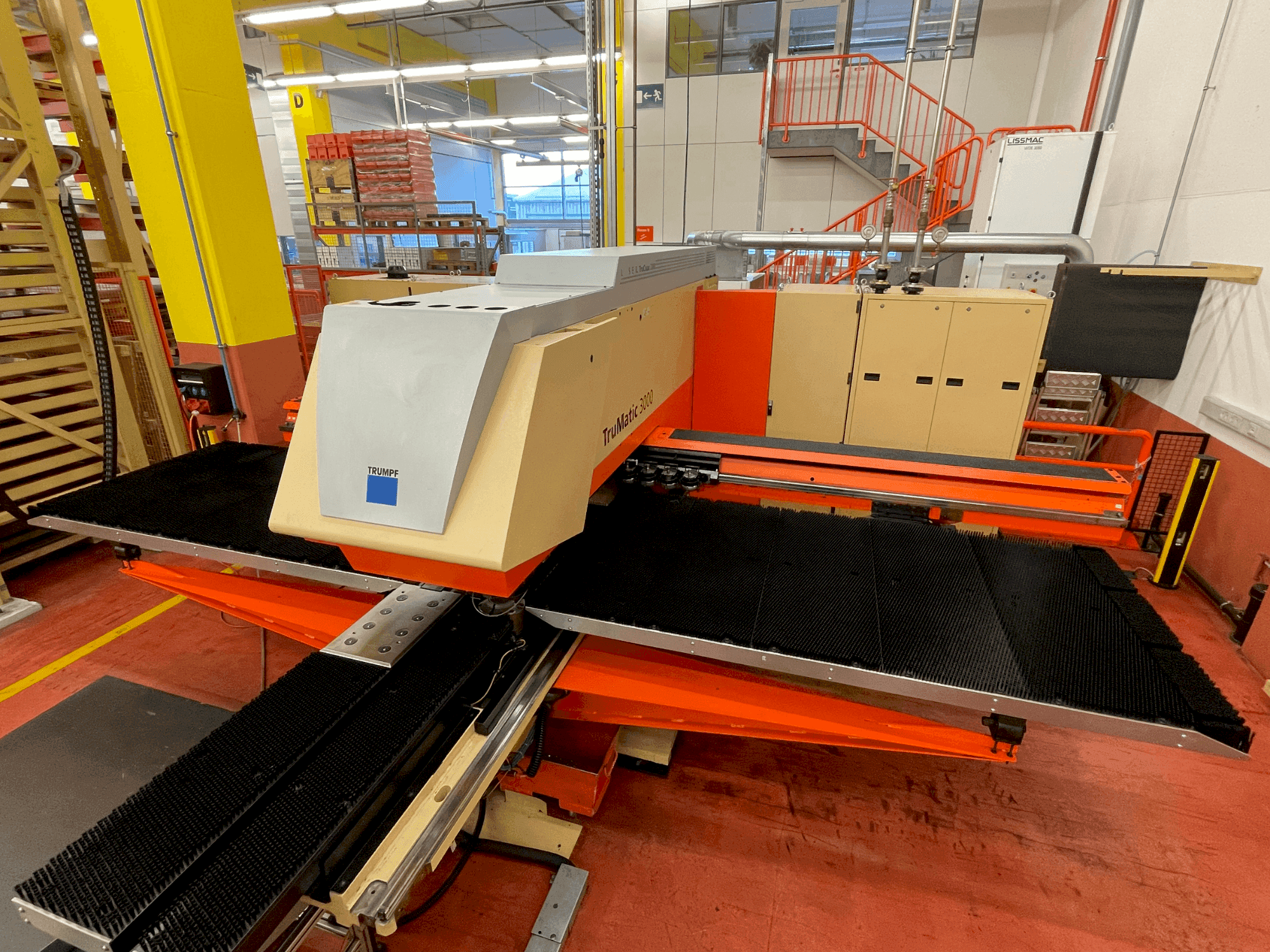

TRUMPF - TruMatic 3000DE-BEN-TRU-2009-00001

Additional equipment

• - Chip container // TRUMPF laser TruCoax 2000 CO2 laser // Cooling by means of plate heat exchanger
• - Linear magazine with 19 tool positions and 2 clamps // Parts flap 300 mm x 500 mm // Good parts box
• - Laser cutting head with 7.5’ lens // Quick-change cutting head system // FocusLine, NitroLine, SprintLine, ContourLine
• - Hydraulic punching head // Mono tool holder // Tool spray lubrication // Punch slug extraction // Multi-beam light barriers
• - Compact dedusting system // 38 RTC cassettes including die plate // Quickset
• - TRUCOAX2000V4
• - Clamping force 3200 KN / Dosing stroke 155 mm / Screw diameter: 40 / Column spacing: 720 x 720 mm / SGM operating hours pump: 28,422 h / Machine cycles: 1,274,782 / Pump motor output: 5.5 KW / Previous use of material: Makrolon clear / PC / Documentation available in paper form in German

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - X-axis working area: 2500 mm // y-axis working area: 1250 mm
  • - Max. Sheet thickness: 4 mm // max. Punching force: 165 kn
  • - Number of tools: 19 - 190 tools with multitool // max. Punching speed: 600 strokes/min
  • - Stable, easily accessible c-frame // coordinate guidance for high-precision machining // drives with maintenance-free three-phase servomotors
  • - Repositioning device with programmable hold-down device // brush tables // programmable cutting gas pressure
  • - 360° rotation of all tools // tool length compensation // adaptive stroke calibration // deburring and rolling technology
  • - Extended machine equipment // vibration-damped installation
  • - Offer consisting of arburg allrounder 720 a injection molding machine with automation / 1st kuka robot removal handling/ 2nd kuka robot (orange)/ ult suction unit/ slider milling and cleaning station/ farrag dryer
