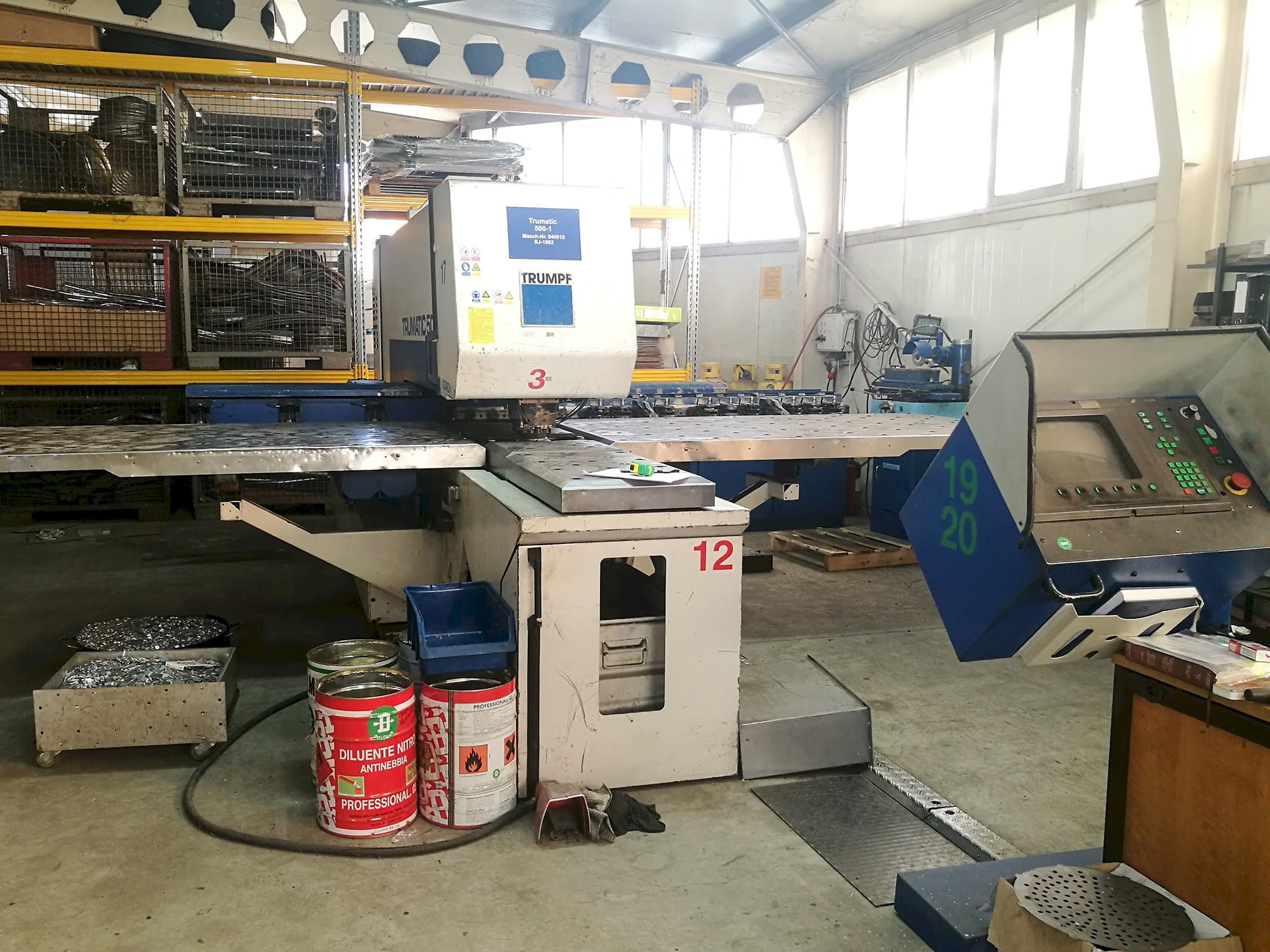

Front view of Trumpf Trumatic 500 Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic 500

Photo Gallery

TRUMPF - Trumatic 500HR-PUN-TRU-1992-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Trumpf Trumatic 500 Punching Machine - Used

Show in original language

This Trumpf Trumatic 500 Punching Machine from 1992 was made in Germany and counts with 31000 production hours since then. Equipped with a BOSCH CC 220 Control unit, this model has mainly worked with brass and steel up to 8 mm of thickness during the past. This machine incorporates a punching force of 220 kN.

Overview

brand: TRUMPF
year: 1992
MODEL: Trumatic 500
production hours: 31000
application type: Punching
Location: Croatia
machine type: CNC Punch Press
control unit brand: BOSCH

Technical Information - TRUMPF Trumatic 500

General Data

Measurements width: 5000 mm
Measurements depth: 6000 mm
Measurements height: 2100 mm
Machine weight: 11050 kg

Control Unit

Brand: BOSCH
Model: CC 220
CNC main language: English
CNC language customizable: Yes

Main drive

Punching force: 220 kN

Movement

X-AXIS Movement: 2535 mm
Y-AXIS Movement: 1280 mm

Tools

Number of index: 1
Number of stations: 1
Slots in storage: 17

Max Material thickness

Steel: 8 mm

Media

Main electronic connection: 380 V
Power consumption: 17 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
