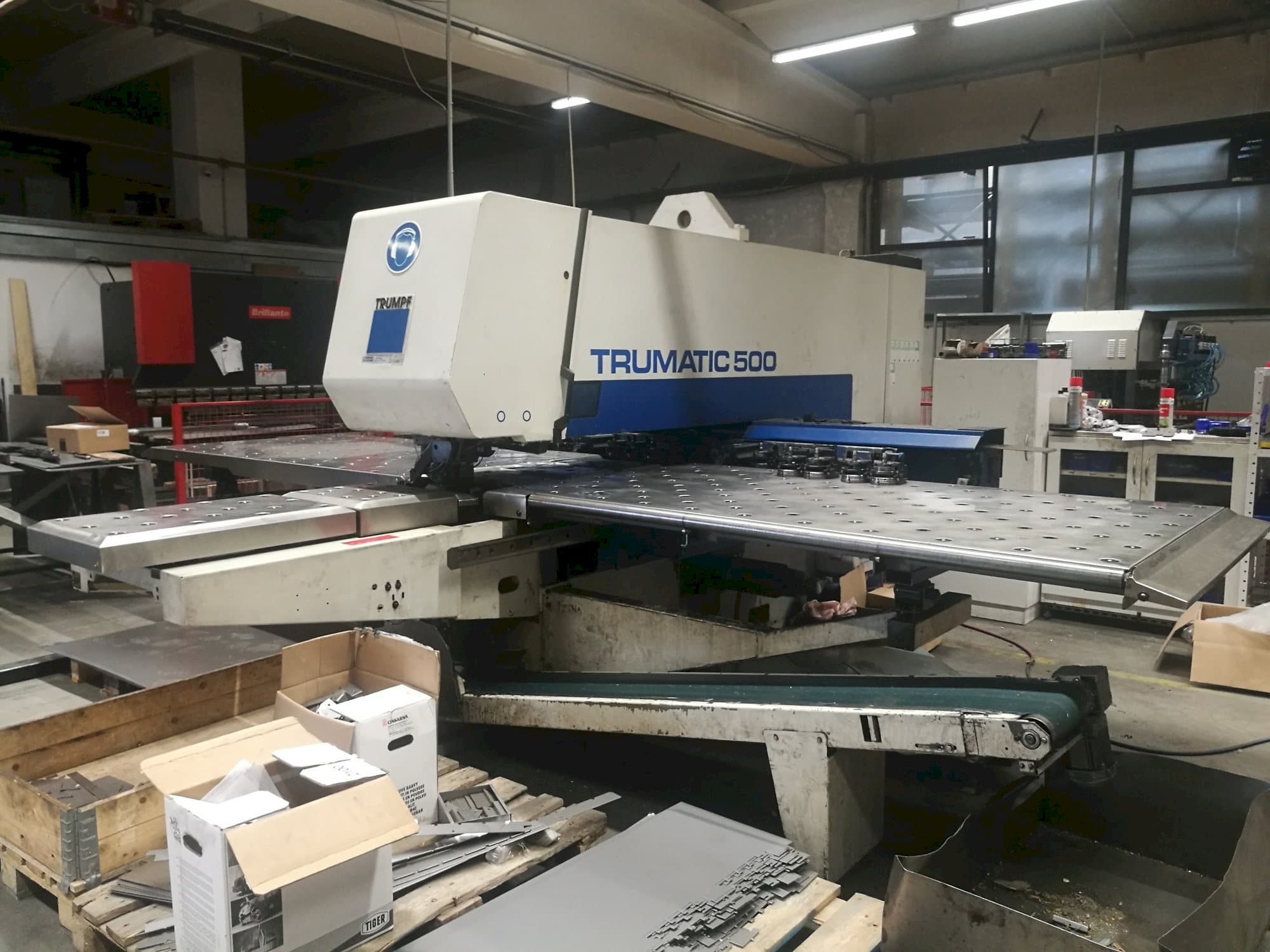

Front view of Trumpf Trumatic 500 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic 500

Photo Gallery

TRUMPF - Trumatic 500HR-PUN-TRU-1995-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Pre-Owned Trumpf Trumatic 500 Punching Machine

Show in original language

This Trumpf Trumatic 500 Punching Machine was manufactured in Germany in the year 1995. It is operated with a Bosch CC 200 S control unit. This machine works with a punching force of 220 kN and a maximum sheet thickness of 8 mm.

Overview

brand: TRUMPF
year: 1995
MODEL: Trumatic 500
application type: Punching
Location: Croatia
machine type: CNC Punch Press
availability: Sold
control unit brand: TRUMPF

Technical Information - TRUMPF Trumatic 500

General Data

Measurements width: 7000 mm
Measurements depth: 6000 mm
Measurements height: 2200 mm
Machine weight: 11050 kg

Control Unit

Model: CC 200 S
CNC main language: English
Brand: TRUMPF

Main drive

Punching force: 220 kN
Maximum sheet thickness: 8 mm

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1300 mm

Workpiece

Workpiece weight: 150 kg

Tools

Number of index: 1
Slots in storage: 31

Media

Main electronic connection: 400 V
Power consumption: 19 kVA
Chip conveyor: Yes

Additional equipment

- Sheetmaster
- PC with Trutops software V15
- 6 sheetholders
- 2 Multitools x 6 places = 12 + 19 free places, totals 31

Additional Information

Machine history

Material type: Steel
Material thickness: 2 mm
End product: Metal furniture
Industries: Interiors

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
