Trumpf Trumatic 600 L Punching Machine

Show in original language

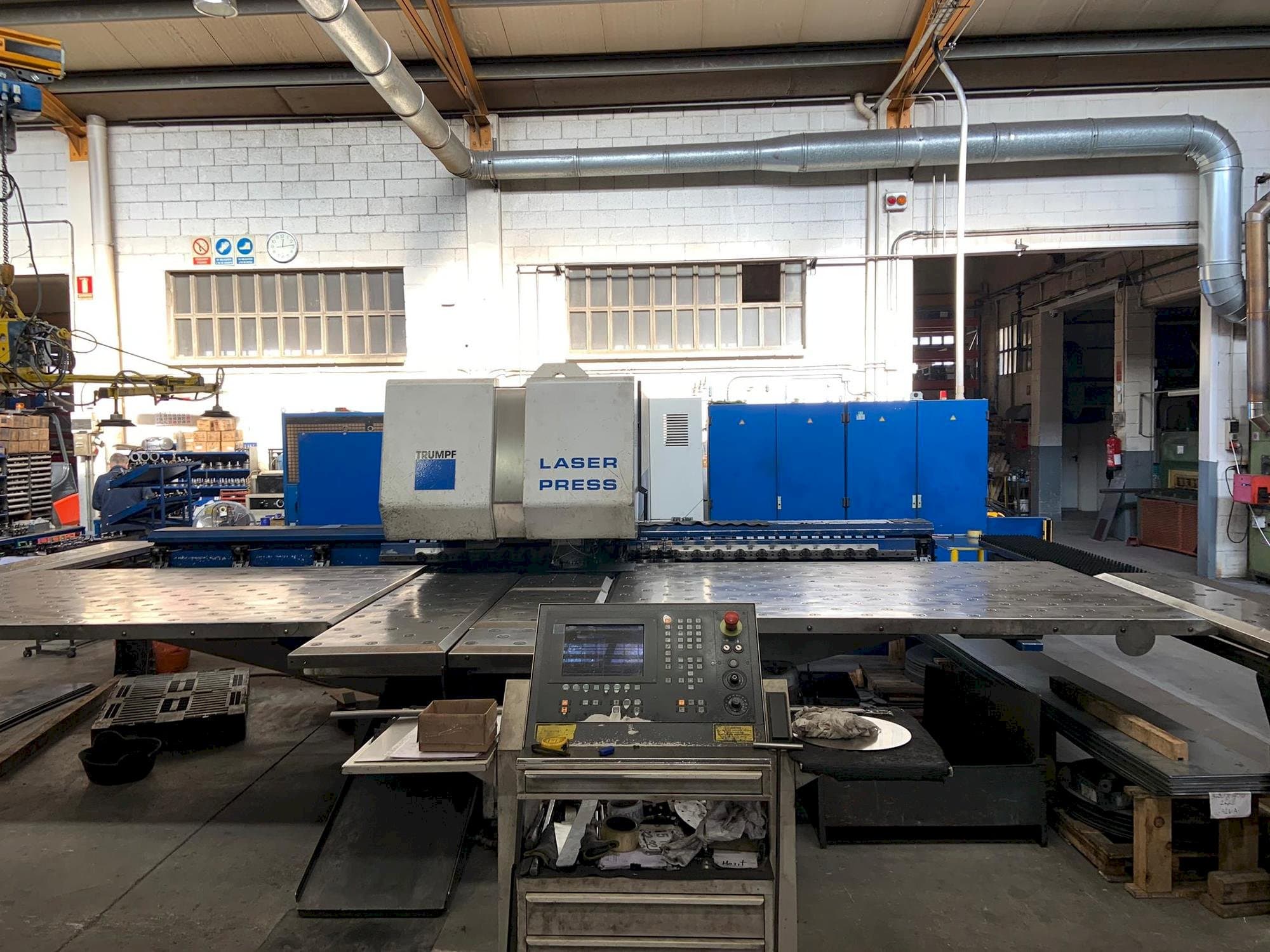

This Trumpf Trumatic 600 L Punching Machine was made in Germany in the year 2001. This machine has 45600 hours of punching, 41500 hours of laser on and just 10000 hours of beam on. It is operated through a Siemens Sinumerik 840D PCI/ISA BOX control unit. This machine includes a punching force of 220 kN, and a laser power of 1,8 kW.

Overview

brand: TRUMPF
year: 2001
MODEL: Trumatic 600 L
production hours: 45600
application type: Punching
Location: Spain
machine type: Punch-Laser Combination
availability: Sold
control unit brand: SIEMENS

Technical Information - TRUMPF Trumatic 600 L

General Data

Measurements width: 7000 mm
Measurements depth: 8000 mm
Measurements height: 2500 mm
Machine weight: 16000 kg

Control Unit

Model: SINUMERIK 840D PCI/ISA BOX
CNC main language: English
CNC language customizable: Yes
Brand: SIEMENS

Main drive

Laserpower: 1,8 kW
Punching force: 220 kN

Movement

X-AXIS Movement: 1500 mm

Workpiece

Workpiece drm: 1250 x 2500 mm

Max Material thickness

Steel: 8 mm
Stainless steel: 4 mm
Aluminum: 6 mm

Media

Main electronic connection: 400 V
Chip conveyor: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
