TRUMPF Trumatic 600L

Photo Gallery

TRUMPF - Trumatic 600LDE-PUN-TRU-2000-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery

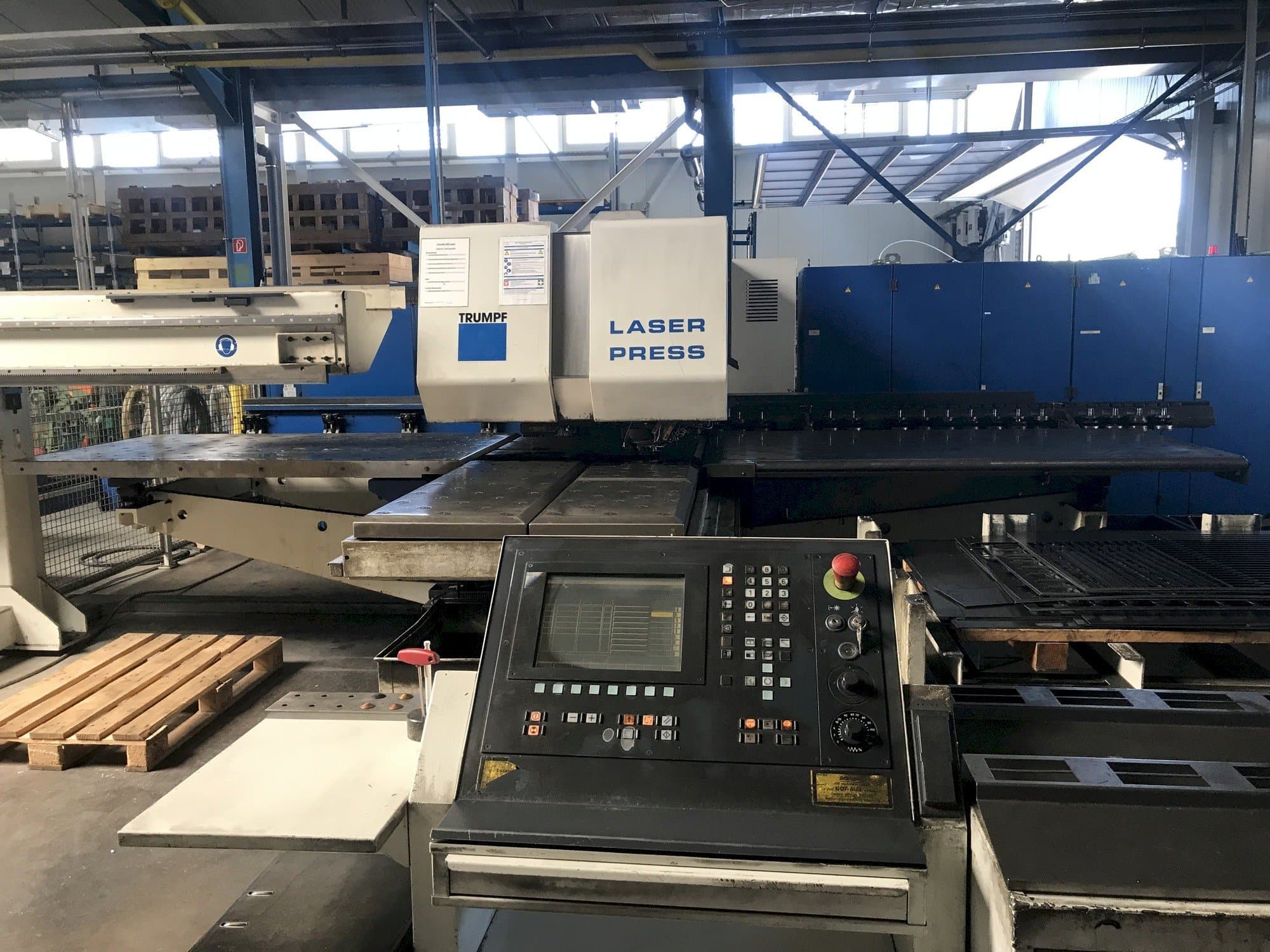

➤ Pre-Owned Trumpf Trumatic 600L Laser Punch Combination Machine

Show in original language

This Trumpf Trumatic 600L Laser Punch Combination Machine was manufactured in Germany in 2000 and has been working for 49316 laser hours and 4953 beam hours. This large span punching machine is equipped with 2 clamps and 19 working stations. It is operated through a SIEMENS 840D Control unit. A laser service set is included.

Overview

brand: TRUMPF
year: 2000
MODEL: Trumatic 600L
production hours: 49316
application type: Punching
Location: Germany
machine type: Punch-Laser Combination
availability: Sold
control unit brand: SIEMENS

Technical Information - TRUMPF Trumatic 600L

General Data

Machine weight: 16000 kg

Control Unit

Model: SINUMERIK 840D
Brand: SIEMENS

Main drive

Laserpower: 1.8 kW
Laser type: CO2
Punching force: 220 KN
Laser brand: Trumpf Kater TLF 1800 Turbo

Table

Outer length: 2685 mm
Outer width: 1280 mm

Tools

Number of stations: 19
Number of clamps: 2

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 62 kVA

Additional equipment

- Laser Service Set

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
