GINDUMAC
Products
Machine Tools
TTB M10 400 NC Drilling Machine

Show in original language

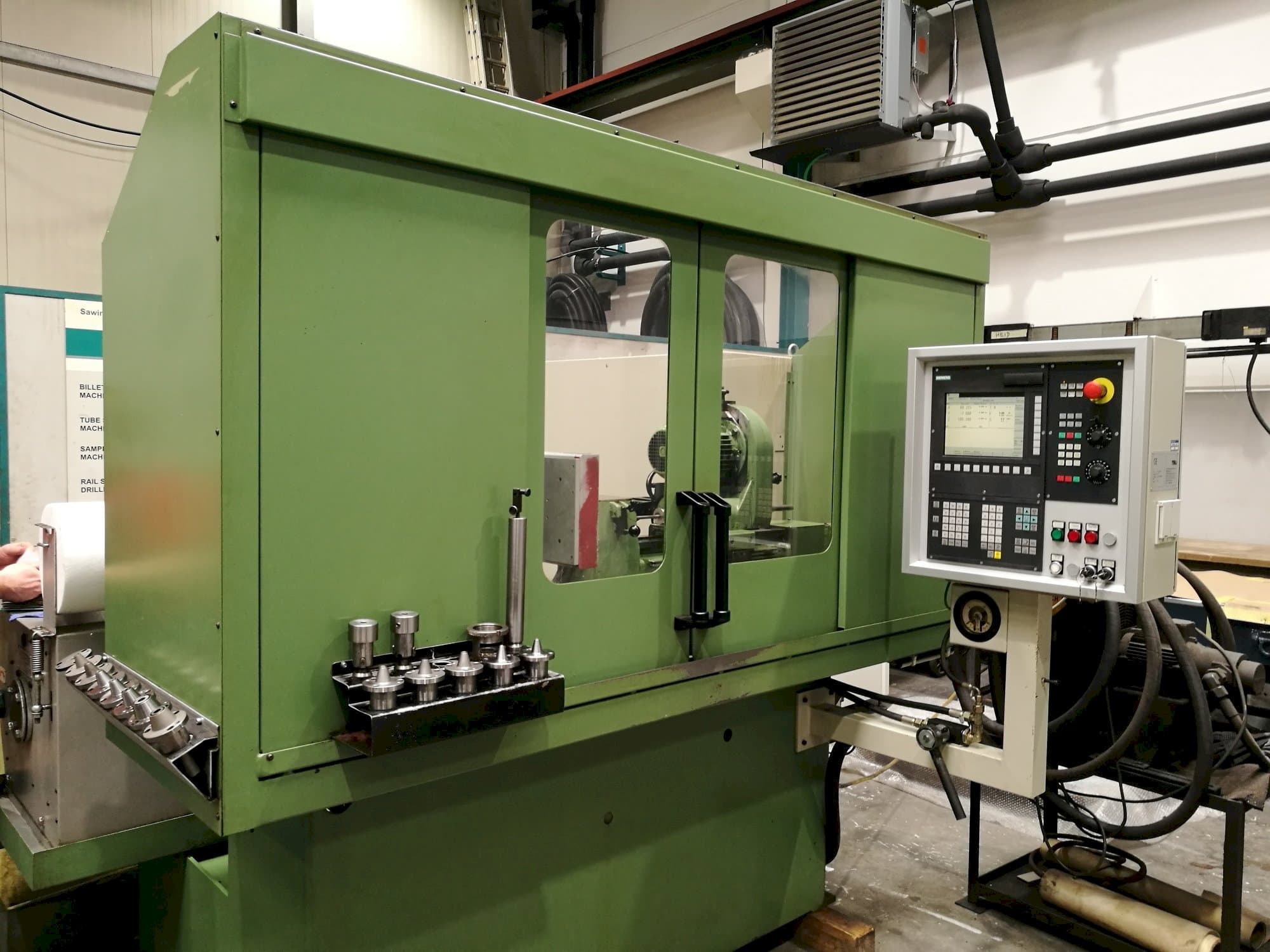

This TTB M10 400 NC Drilling Machine was made in 2002 in Germany. Operated through a SIEMENS SINUMERIK 802 T Control unit, this machine operates with a spindle speed up to 18000 rpm. It presents perfectly good conditions and it is equipped with an additional oil cooling device. During the past, it has mainly worked with copper materials.

Overview

brand: TTB
year: 2002
MODEL: M10 400 NC
application type: Other Machine Tools
Location: Austria
machine type: Drilling Machine (Metal)
availability: Sold
control unit brand: SIEMENS

Technical Information - TTB M10 400 NC

General Data

Measurements width: 2700 mm
Measurements depth: 2800 mm
Measurements height: 2200 mm
Machine weight: 4000 kg

Control Unit

Model: SINUMERIK 802T
CNC main language: German
CNC language customizable: Yes
Brand: SIEMENS

Main drive

Spindle speed range: 18000 rpm 1/MIN

Movement

X-AXIS Movement: 315 mm
Y-AXIS Movement: 200 mm
Z-AXIS Movement: 350 mm

Media

Main electronic connection: 400 V
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
