Victor - H 500IE-MIL-VIC-2003-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

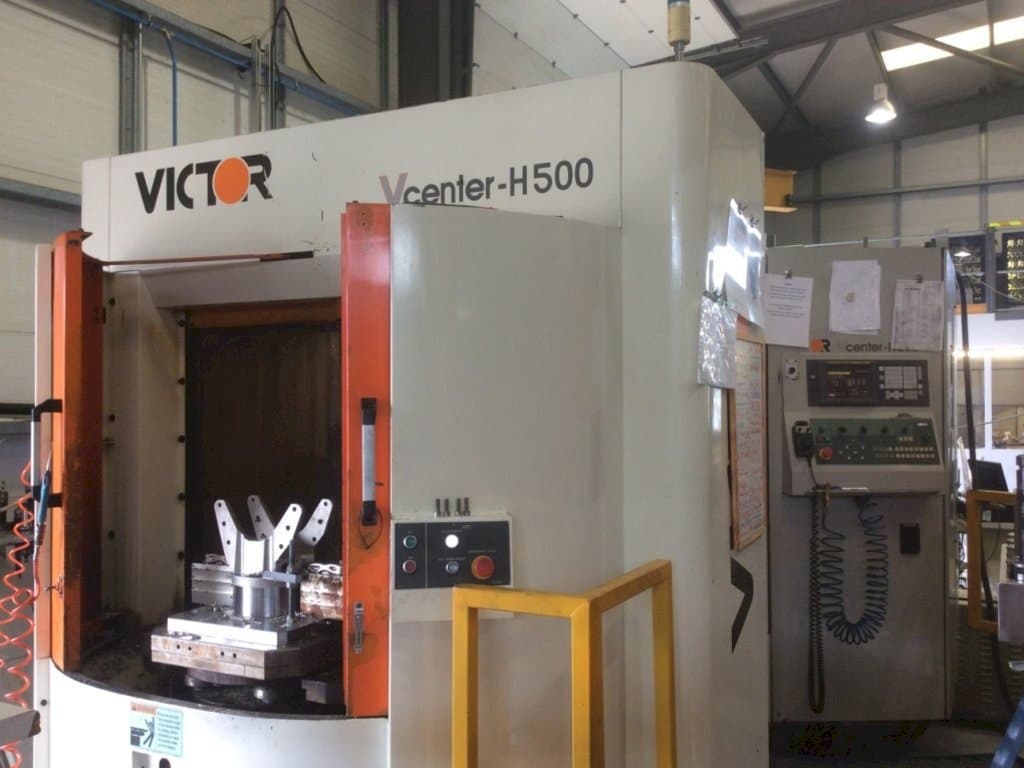

Victor H 500 Horizontal Machining Center

Show in original language

This Victor H 500 Horizontal Machining Center was built in the year 2003. It has been on for 33397 hours, of which 1427 are cutting hours. It is equipped with a FANUC 18-M control unit. This 4 axis machine is in excellent conditions. Full B Axis is included on the table.

Overview

brand: Victor
year: 2003
MODEL: H 500
production hours: 33397
application type: Milling
Location: Ireland
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Victor H 500

General Data

Measurements width: 4395 mm
Measurements depth: 5393 mm
Measurements height: 2937 mm
Machine weight: 12500 kg

Control Unit

Model: 18-M
CNC main language: English
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 8500 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 720 mm
Y-AXIS Movement: 650 mm
Z-AXIS Movement: 720 mm
B-AXIS Movement: 360 mm

Workpiece

Workpiece drm: 720 mm
Workpiece x: 800 kg MM
Workpiece z: 750 mm

Table

Outer length: 500 MM
Outer width: 500 MM

Tools

Slots in storage: 40
Max weight: 20 kg
Max tool diameter: 120 mm
Max tool length: 400 mm
Type of tool holder: BT50

Media

Main electronic connection: 400 V
Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- 20 Bar HPC Unit
- 100 Tool Holders
- Walkway Platform

Additional Information

Machine history

Material type: Steel
End product: Subcontract component parts
Industries: Various

Machine Benefits

Technical Machine Benefits:
- - Full b axis - indexing 0. 001 degree indexing
- - New spindle bearings
- - Operating hours: 2641
- - Cutting hours: 1427
- - Robust heavy duty machine
- - Includes walkway platform
- - Full b axis is included on the table

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
