Victor TNS-3H

Photo Gallery

Victor - TNS-3HIE-TUR-VIC-1987-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Victor TNS-3H Lathe

Show in original language

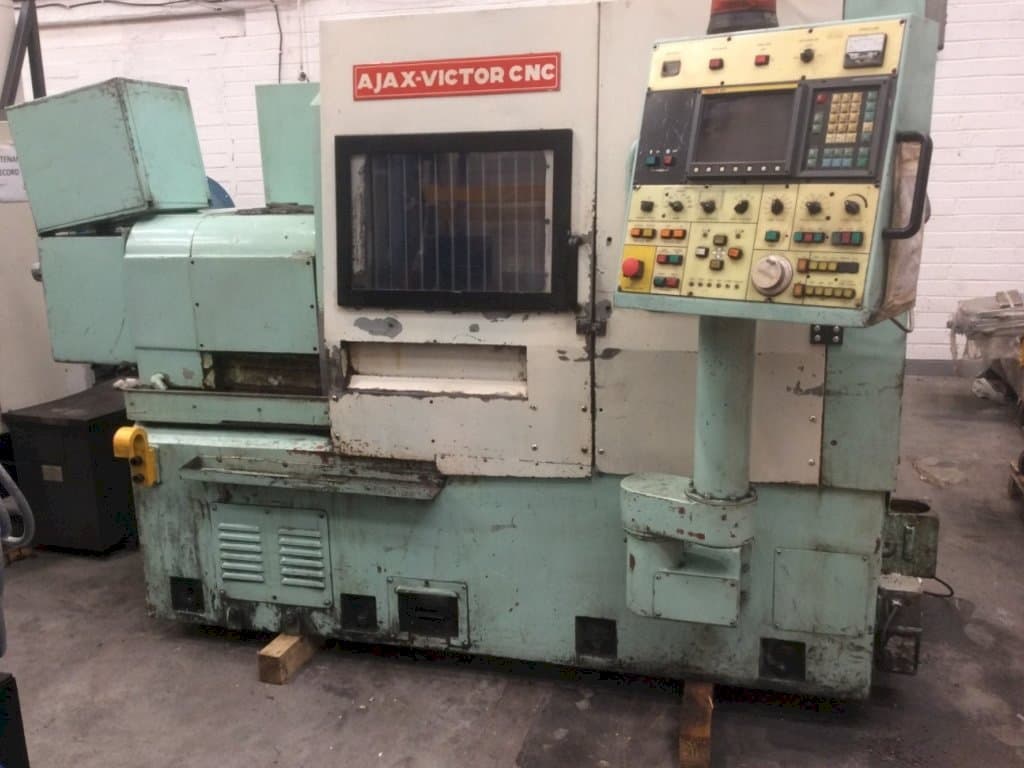

This Victor TNS-3H Lathe was built in Taiwan in 1987. Equipped with a FANUC OT-A Control unit, this machine can operate with a spindle speed up to 3500 rpm.

Overview

brand: Victor
year: 1987
MODEL: TNS-3H
application type: Turning
Location: Ireland
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Victor TNS-3H

General Data

Measurements width: 3000 mm
Measurements depth: 1850 mm
Measurements height: 1900 mm
Machine weight: 3600 kg

Control Unit

Model: OT-A
CNC main language: English
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 3500 1/MIN
Spindle motor power: 11/ 15 kW

Movement

X-AXIS Movement: 770 mm

Workpiece

Workpiece drm: 254 mm
Workpiece x: 770 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 10

Media

Main electronic connection: 415 V
Power consumption: 33 kVA

Additional equipment

- Kitagawa B-210 Hydraulic Chuck

Additional Information

Machine history

Material type: Mild steel
End product: Hydraulic cylinders

Machine Benefits

Technical Machine Benefits:
- - Bar capacity 64mm
- - Spindle nose: a2-8
- - Swing over bed: 569mm
- - 10 station static turret

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
