VOLTER L2016

Photo Gallery

VOLTER - L2016CZ-MIL-VOL-2022-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used VOLTER L2016 For sale | gindumac.com

Show in original language

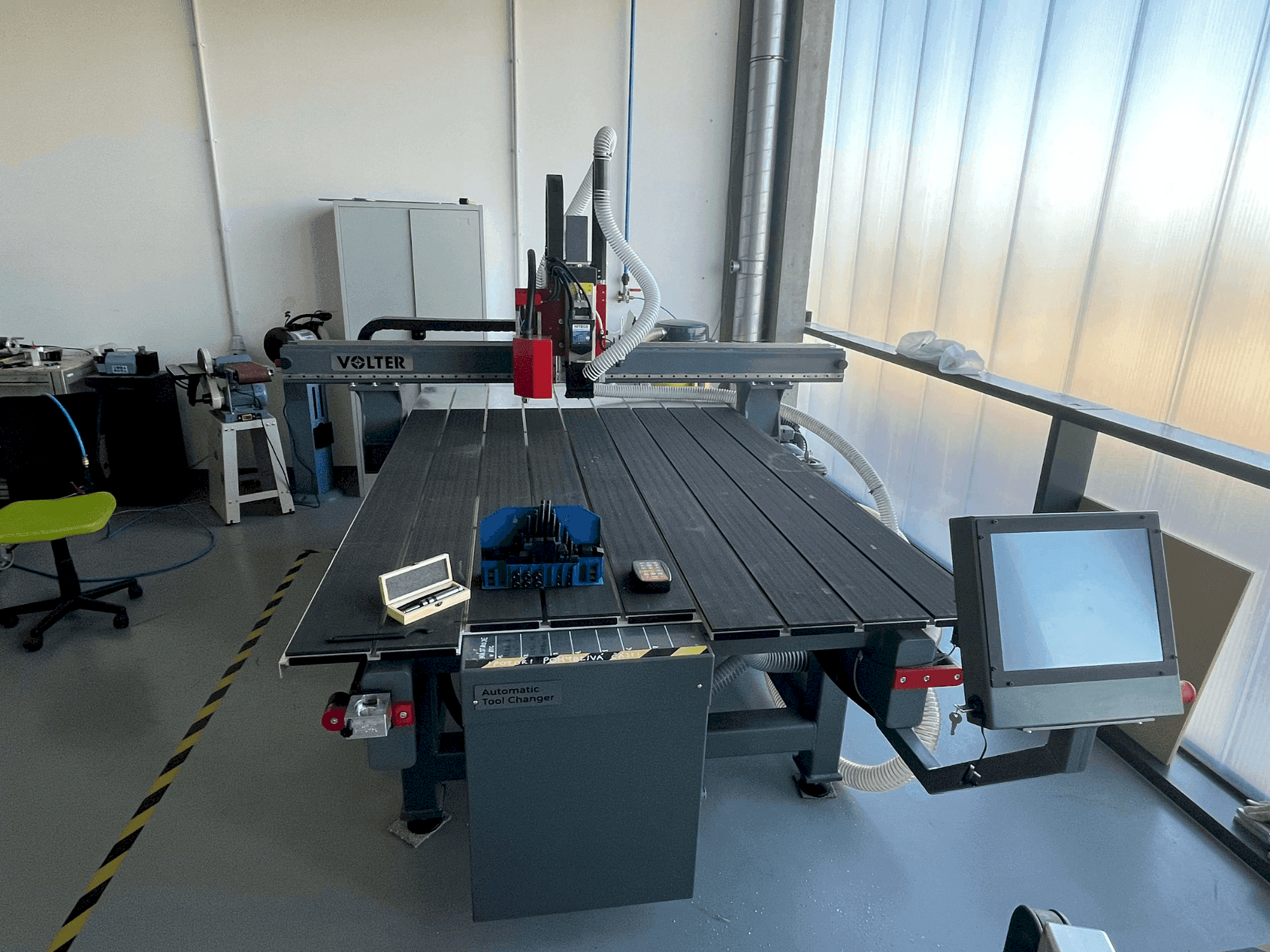

This 3-axis VOLTER L2016 milling machine was manufactured in 2022 and features a robust 7.5 kW HITECO spindle at 24000 RPM, a 4 zone vacuum table with T-slot clamping, and an automatic tool change system for up to 7 tools. It includes a user-friendly touch screen interface with multi-language support and a powerful VOLTER CS controller for efficient operation. With only 120 working hours, the VOLter L2016 machine we have for sale is in excellent condition. Contact us for more information.

Overview

brand: VOLTER
year: 2022
MODEL: L2016
application type: Milling
Location: Czech Republic
machine type: CNC Milling Machine

Technical Information - VOLTER L2016

General Data

Measurements width: 2100 mm
Measurements depth: 3300 mm
Machine weight: 1200 kg

Main drive

Number of spindles: 1
Spindle speed range: 24000 RPM 1/MIN
Spindle motor power: 7.5 kW
Number of axis: 3

Movement

Z-AXIS Movement: 160 mm

Additional Information

Additional equipment

Accessories included: 7 pcs ISO30-ER32 collet clamp, 12 pcs ER32 collet set, M10 clamp set - T12 slot - 58-piece, approach probe with indicator
Sawdust extractor: MasterVac TS220
Automatic tool cooling
Mechanical clamping brackets
Servomotors
Inclined toothed combs
Start point laser pointer
IP camera module for loading print marks
Pneumatic tangential knife
Remote wireless motion controller for easy origin setting

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
