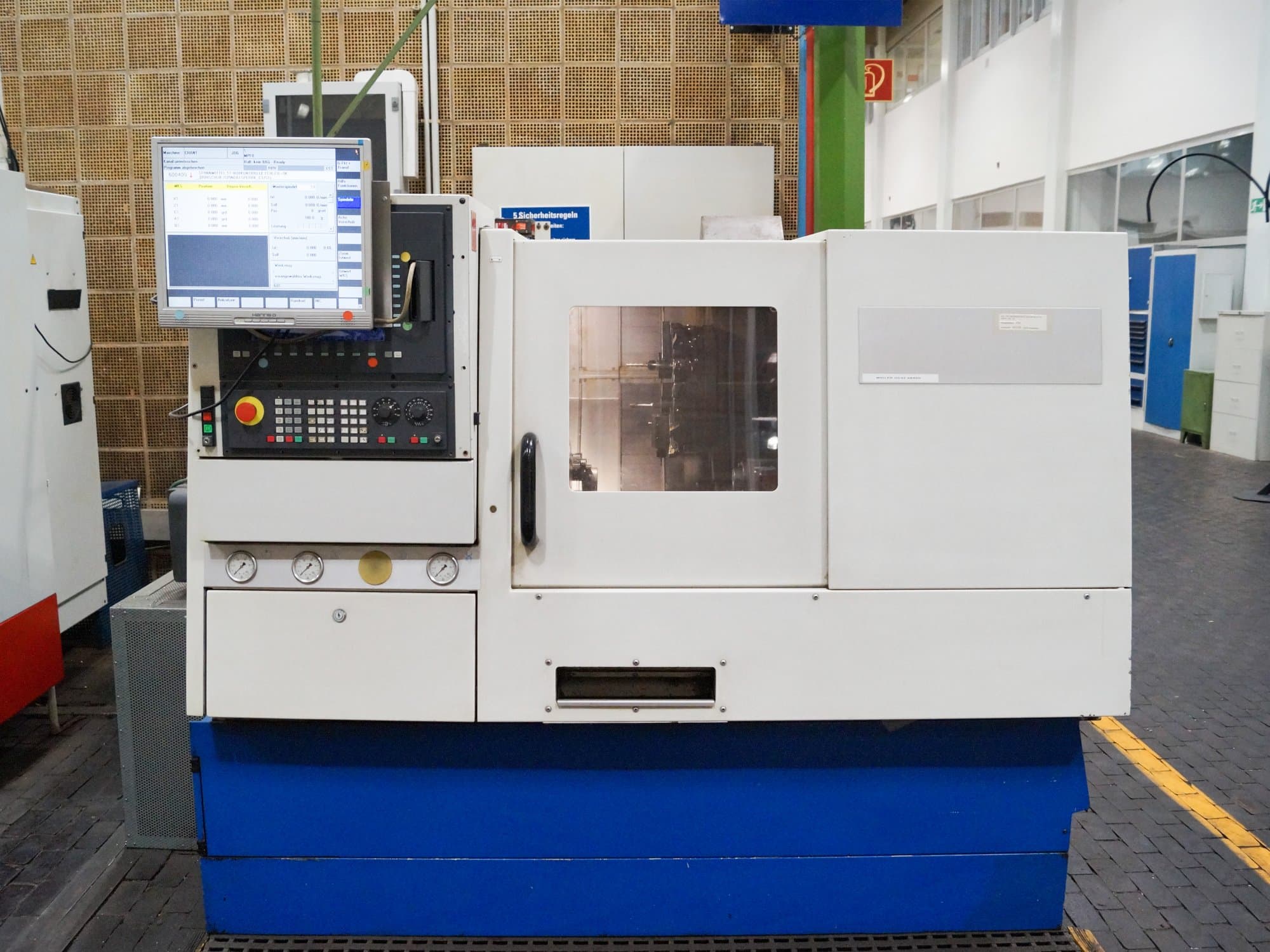

Weiler DZ 42 CNC Lathe

Show in original language

This Weiler DZ 42 CNC Lathe from 1997 has a production record of only 4700 hours. Operated through a SIEMENS SINUMERIK 840D Control unit, the equipment stands out for its 16 Tool turret.

Overview

brand: Weiler
year: 1997
MODEL: DZ 42 CNC
production hours: 4700
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - Weiler DZ 42 CNC

General Data

Measurements width: 2365 mm
Measurements depth: 1720 mm
Measurements height: 1705 mm
Machine weight: 4050 kg

Control Unit

Model: SINUMERIK 840D
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 50-6000 1/min
Spindle motor power: 19 kW
Spindle bore: 42 mm

Movement

X-AXIS Movement: 200 mm
X-AXIS Working Feed: 0-24000 mm/min
X-AXIS Feed Force: 3500 N
X-AXIS Rapid traverse: 24 m/min
Z-AXIS Movement: 345 mm
Z-AXIS Working Feed: 0-24000 mm/min
Z-AXIS Feed Force: 3500 N
Z-AXIS Rapid traverse: 24 m/min

Turret

Number of turrets: 1
Number of tool slots: 16
Rotating tools: Yes
Tool taper: 20 mm

Media

Power consumption: 30 kVA
Lubrication tank: 100 L
Oil tank: 25 L
Oil pressure: 50 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
