Wele AA1365

Photo Gallery

Wele - AA1365FR-MIL-WEL-2008-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Used Vertical Machining centre Wele AA1365 - 2008 - for sale | gindumac.com

Show in original language

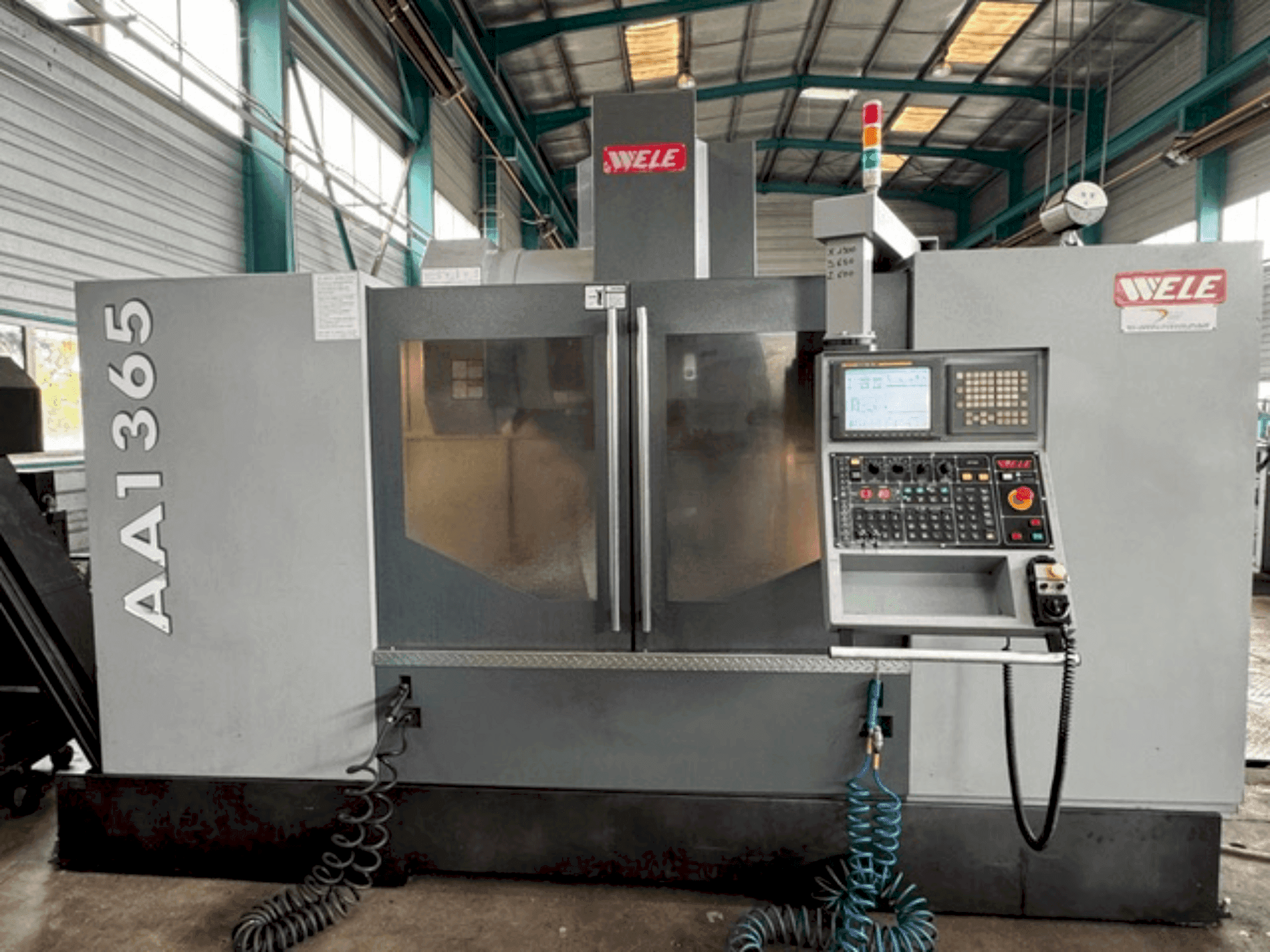

This 3-Axis vertical machine centre was manufactured in 2008. With travels of X1300-Y650-Z600 mm, and a 24-station tool magazine, it ensures efficient machining operations. Equipped with a CNC FANUC 18i-MB system and an electronic handwheel, precision is at the forefront. The 20-bar high-pressure hole trough spindle coolant and spindle cooler enhance performance. With visible operation under power and a set of 70 ER & Weldon collet holders included. Consider this WELE AA1365 machine for versatile machining capabilities. Contact us for further information.

Overview

brand: Wele
year: 2008
MODEL: AA1365
production hours: 11100
application type: Milling
Location: France
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - Wele AA1365

General Data

Measurements width: 2340 mm
Measurements depth: 3650 mm
Measurements height: 2940 mm
Machine weight: 7600 kg

Control Unit

Brand: FANUC
Model: 18i-MB

Main drive

Number of spindles: 1
Spindle speed range: 8000 1/MIN
Spindle motor power: 15 KW
Tool taper: ISO 40
Number of axis: 3

Movement

X-AXIS Movement: 1300 mm
X-AXIS Rapid traverse: 24 m/min
Y-AXIS Movement: 650 mm
Y-AXIS Rapid traverse: 20 m/min
Z-AXIS Movement: 600 mm
Z-AXIS Rapid traverse: 20 m/min

Table

Table load: 1300 kg

Tools

Number of stations: 24
Type of tool holder: BT40

Media

Chip conveyor: Yes

Additional Information

Additional equipment

Set of 70 ER & Weldon collet holders, boring bars, milling cutter holders, etc.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
