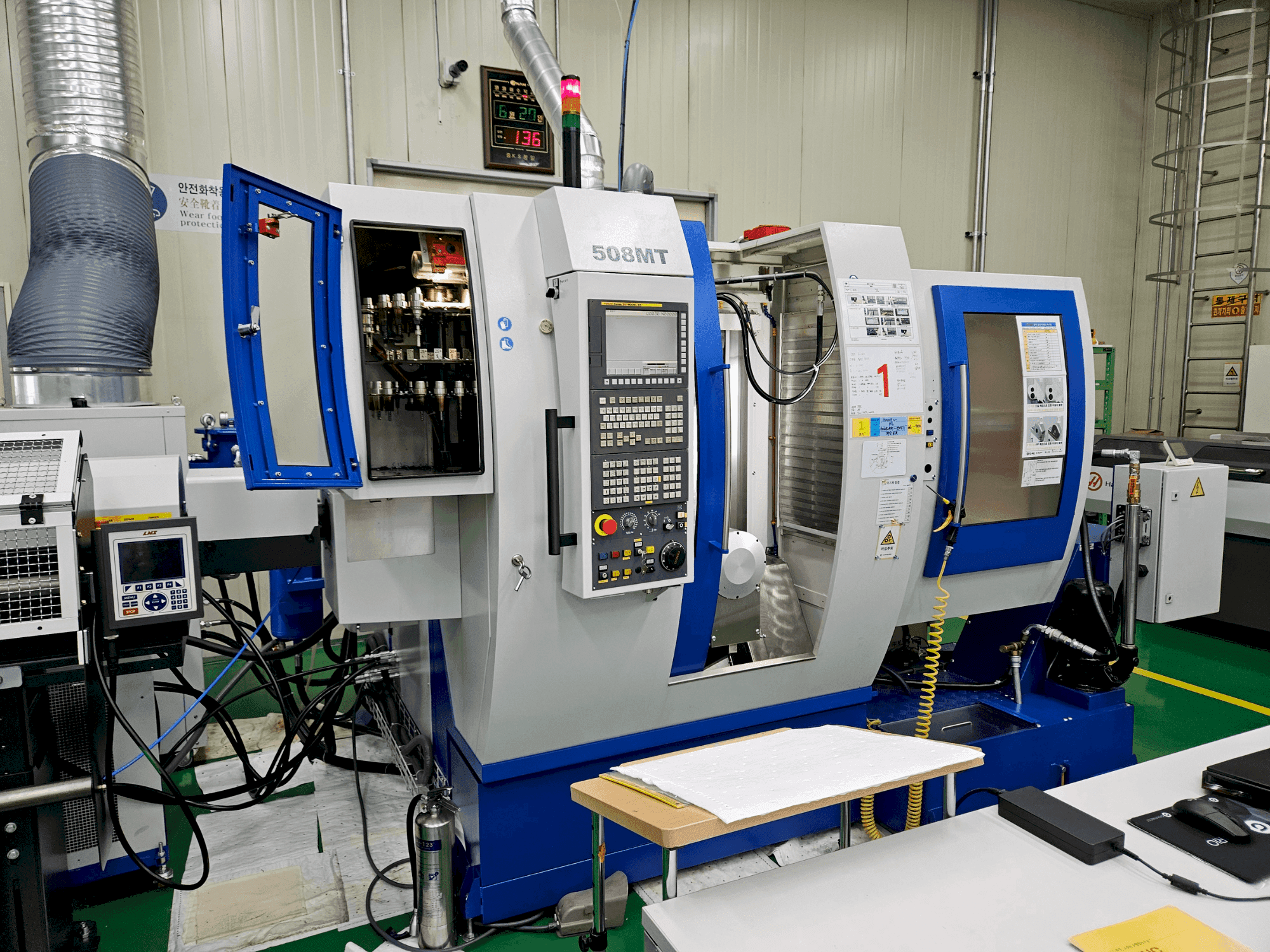

Front view of WILLEMIN-MACODEL 508MT machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

WILLEMIN-MACODEL 508MT

Photo Gallery

WILLEMIN-MACODEL - 508MTDE-TUR-WIL-2016-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used WILLEMIN-MACODEL 508MT For sale | gindumac.com

Show in original language

This WILLEMIN-MACODEL 508MT lathe was manufactured in 2016. It features a Fanuc 31iB5 control system, Renishaw TS27R, and a main milling spindle with a speed of 42K RPM. The tool taper is HSK-E40, complemented by a 48 ATC. It includes a chip conveyor, coolant chiller, hydraulic tank, and a bar-feeder from LNS model Sprint 564 S2. A great opportunity to buy this WILLEMIN-MACODEL 508MT lathe. Contact us for further details regarding this lathe.

Overview

brand: WILLEMIN-MACODEL
year: 2016
MODEL: 508MT
application type: Turning
Location: Germany
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - WILLEMIN-MACODEL 508MT

Control Unit

Model: 31iB5
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 42000 RPM 1/MIN
Tool taper: HSK-E40

Movement

X-AXIS Movement: 450 mm
Y-AXIS Movement: 200 mm
Z-AXIS Movement: 425 mm
A-AXIS Movement: 0.0001 mm
B-AXIS Movement: -45˚ to +115˚ MM
C-AXIS Movement: 0.0001 degree MM

Media

Chip conveyor: Yes

Additional equipment

- Renishaw TS27R
- Linear scale: X, Y, Z axis
- Various automation systems
- Lower turret
- Coolant chiller
- Hydraulic tank
- Bucket
- Bar-feeder (Brand: LNS, Model: Sprint 564 S2)
- Tower lamp

Additional Information

Machine Benefits

Technical Machine Benefits:
- - High spindle speed, precision measurement, and automation capabilities.
Qualitative Machine Benefits:
- - High-quality machining, reliable operation.

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
