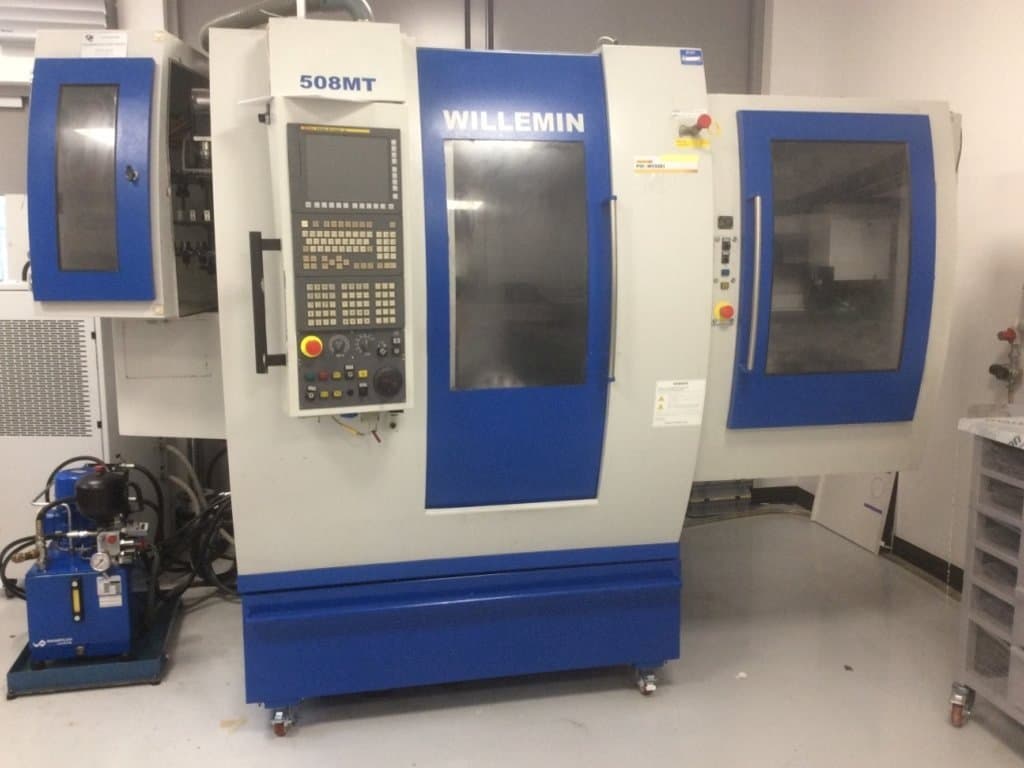

Willemin W 508MT Universal Machining Center

Show in original language

This WILLEMIN-MACODEL W 508MT Universal Machining Center was made in the year 2008 in Switzerland. Equipped with a FANUC Series 31i-Model A5 Control unit, this double spindle machine can perform with a speed up to 30000 rpm. It incorporates 6 different axis. A universal manipulator arm for loading/unloading workpieces is included.

Overview

brand: WILLEMIN-MACODEL
year: 2008
MODEL: W 508MT
application type: Milling
Location: Ireland
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - WILLEMIN-MACODEL W 508MT

General Data

Measurements width: 2600 mm
Measurements depth: 2400 mm
Measurements height: 2200 mm
Machine weight: 3000 kg

Control Unit

Model: Series 31i-Model A5
CNC main language: English
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 2
Spindle speed range: 30000 1/MIN
Number of axis: 6

Movement

X-AXIS Movement: 450 mm
Y-AXIS Movement: 200 mm
Z-AXIS Movement: 425 mm
V-Axis Movement: 300 mm

Tools

Slots in storage: 48
Max weight: 1 kg
Max tool diameter: 80 mm
Max tool length: 150 mm
Type of tool holder: HSK E40

Media

Main electronic connection: 400 V

Additional Information

Additional equipment

Universal Manipulator Arm for loading/Unloading Workpieces
Tool Holders

Machine Benefits

Qualitative Machine Benefits

Annually serviced by willemin trained engineers

Technical Machine Benefits

High speed mill/turn machine
6 axis mill/turn machine
Part loading robot included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
