Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

XYZprinting Mini Mill 560

Photo Gallery

XYZprinting - Mini Mill 560IE-MIL-XYZ-2006-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

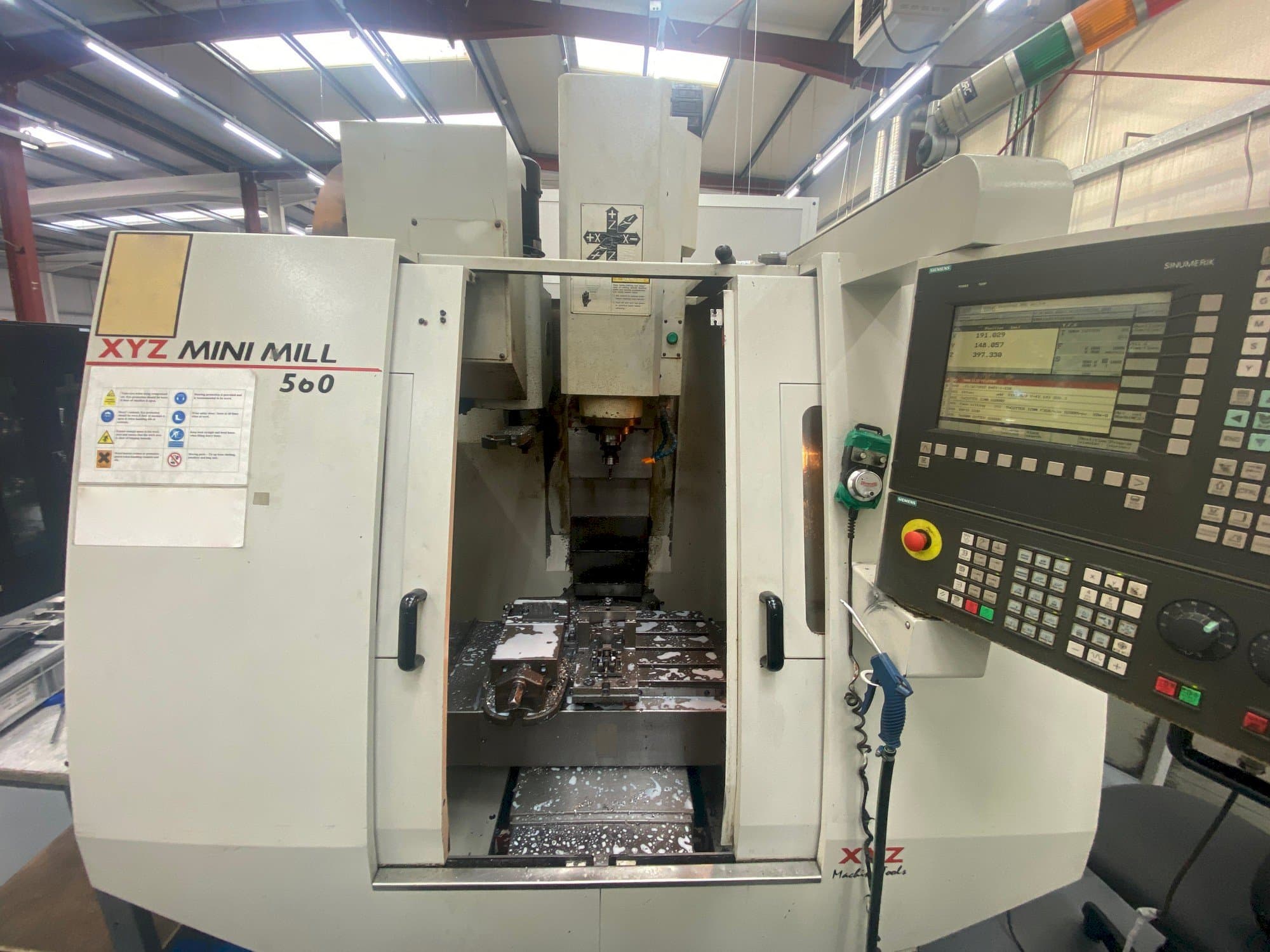

XYZ Mini Mill 560 Vertical machining center

Show in original language

This XYZ Mini Mill 560 Vertical machining center was manufactured in Taiwan in 2006. It is equipped with a Siemens Sinumerik 810D Powerline control unit. This 3 axis machine works with a spindle speed up to 8000 rpm. It has been producing medical device parts. Very well maintained machine. Very good condition.

Overview

brand: XYZprinting
year: 2006
MODEL: Mini Mill 560
application type: Milling
Location: Ireland
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - XYZprinting Mini Mill 560

General Data

Measurements width: 1800 mm
Measurements depth: 1900 mm
Measurements height: 2500 mm
Machine weight: 2750 KG

Control Unit

Model: Sinumerik 810D Powerline
CNC main language: English
CNC language customizable: Yes
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 8000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 560 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 500 mm

Table

Outer length: 610 mm
Outer width: 370 mm

Tools

Slots in storage: 16
Max weight: 8 KG
Type of tool holder: BT40

Media

Main electronic connection: 400V

Additional Information

Machine Benefits

Technical Machine Benefits

Very well maintained machine
Very good condition

Extra Information

Machine vice not included

Machine History

Industries

Medical device industry

End product

Medical device parts

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
