Yang SML-30 Lathe

Show in original language

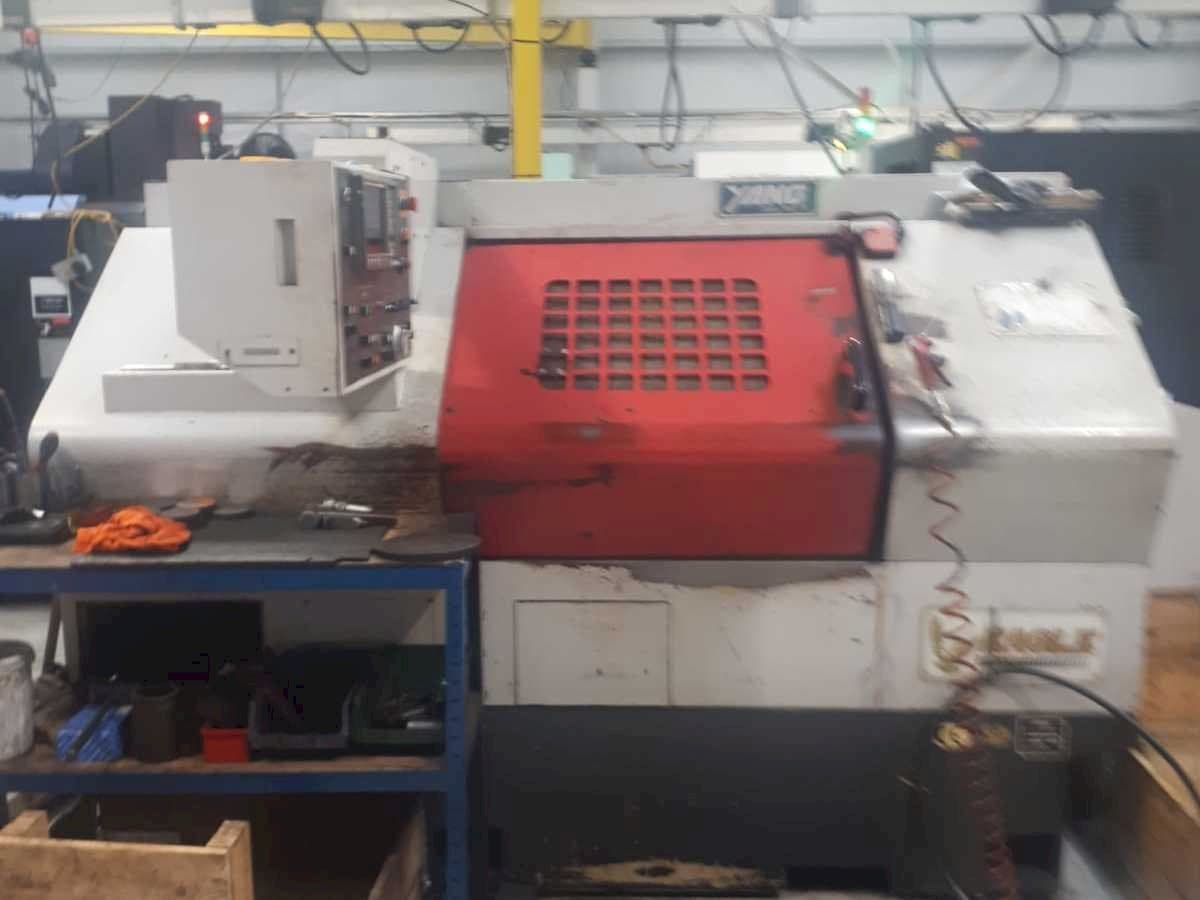

This Yang SML-30 Lathe from the year 2000 was manufactured in Taiwan. It is equipped with a Fanuc Series O-TD control unit. This machine can work with a spindle speed up to 3000 rpm. During the past, this machine has worked mainly with mild steel.

Overview

brand: Yang
year: 2000
MODEL: SML-30
application type: Turning
Location: Ireland
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Yang SML-30

General Data

Measurements width: 3100mm
Measurements depth: 1600mm
Measurements height: 2000mm
Machine weight: 3100 kg

Control Unit

Model: Series O-TD
CNC main language: English
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 3000 1/MIN
Spindle motor power: 18.5 kW

Workpiece

Workpiece drm: 350 mm
Workpiece z: 720 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 8

Additional Information

Machine history

Material type: Mild steel
End product: Machined components
Industries: Subcontract machined components

Machine Benefits

Technical Machine Benefits:
- - 75mm spindle bore
- - 12" (300mm chuck)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
