YCM FV102A Milling

Show in original language

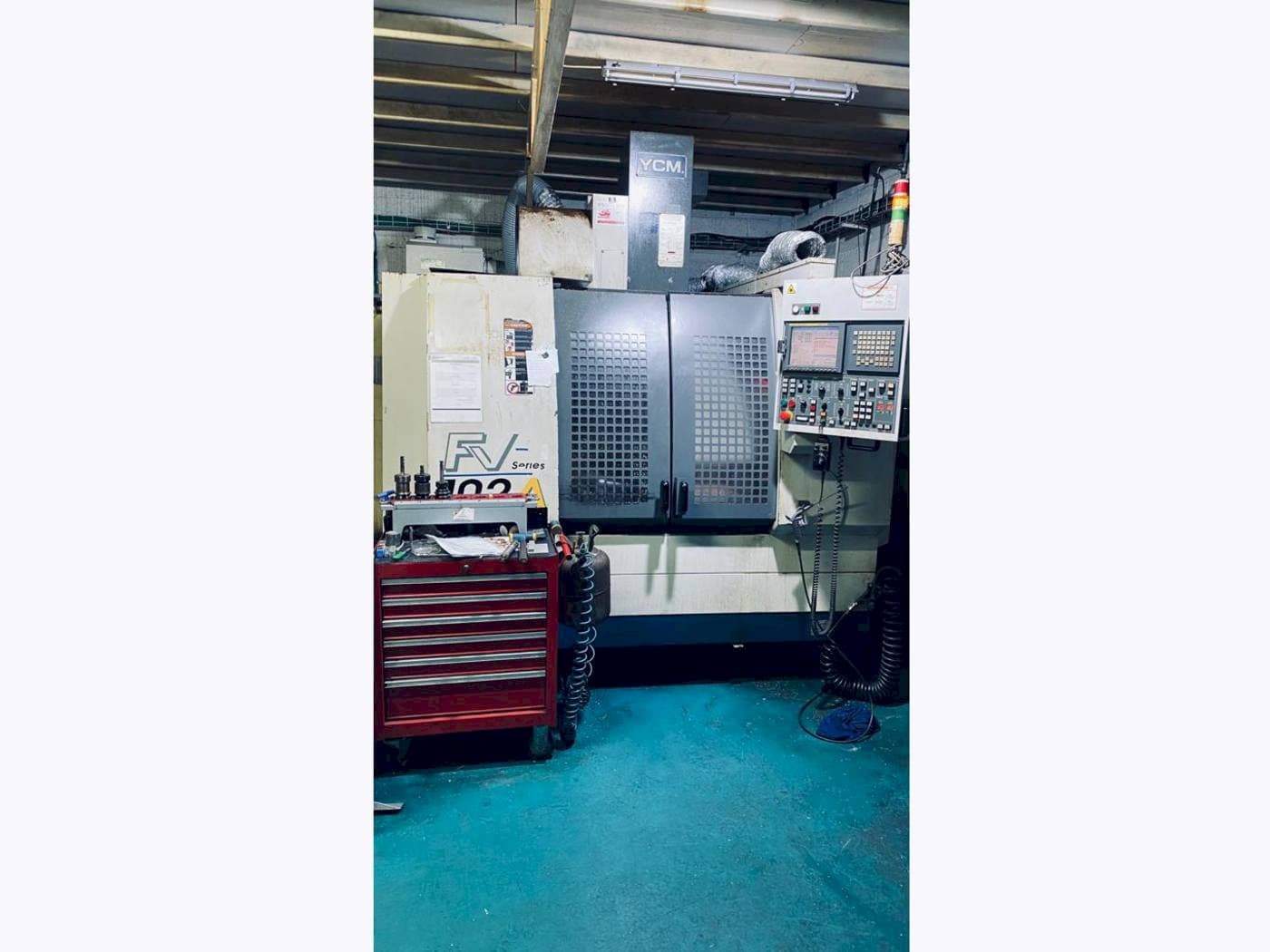

This YCM FV102A Vertical Machining Center was built in the year 2008. It is equipped with a YCM Fanuc control unit and a MXP-200FC control system. This 3 axis machine can operate with a speed up to 12000 rpm.

Overview

brand: YCM
year: 2008
MODEL: FV102A
application type: Milling
Location: Israel
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - YCM FV102A

General Data

Measurements width: 3500 mm
Measurements depth: 3000 mm
Measurements height: 3000 mm
Machine weight: 5350 kg

Control Unit

Model: MXP-200FB
Brand: FANUC

Controller

Brand: CNC MXP-200FB
Model: MXP-200FB

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 15 kW
Tool taper: BBT40
Number of axis: 3

Movement

X-AXIS Movement: 1020 mm
Y-AXIS Movement: 1020 mm
Z-AXIS Movement: 540 mm

Table

Outer length: 1120 mm
Outer width: 520 mm
Min distance between vertical spindle and table: 690 mm
Table load: 500 kg

Tools

Max weight: 6 kg
Max tool length: 90 x 300 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
