Zayer 1700 AF3 Fixed Bench Milling Machine

Show in original language

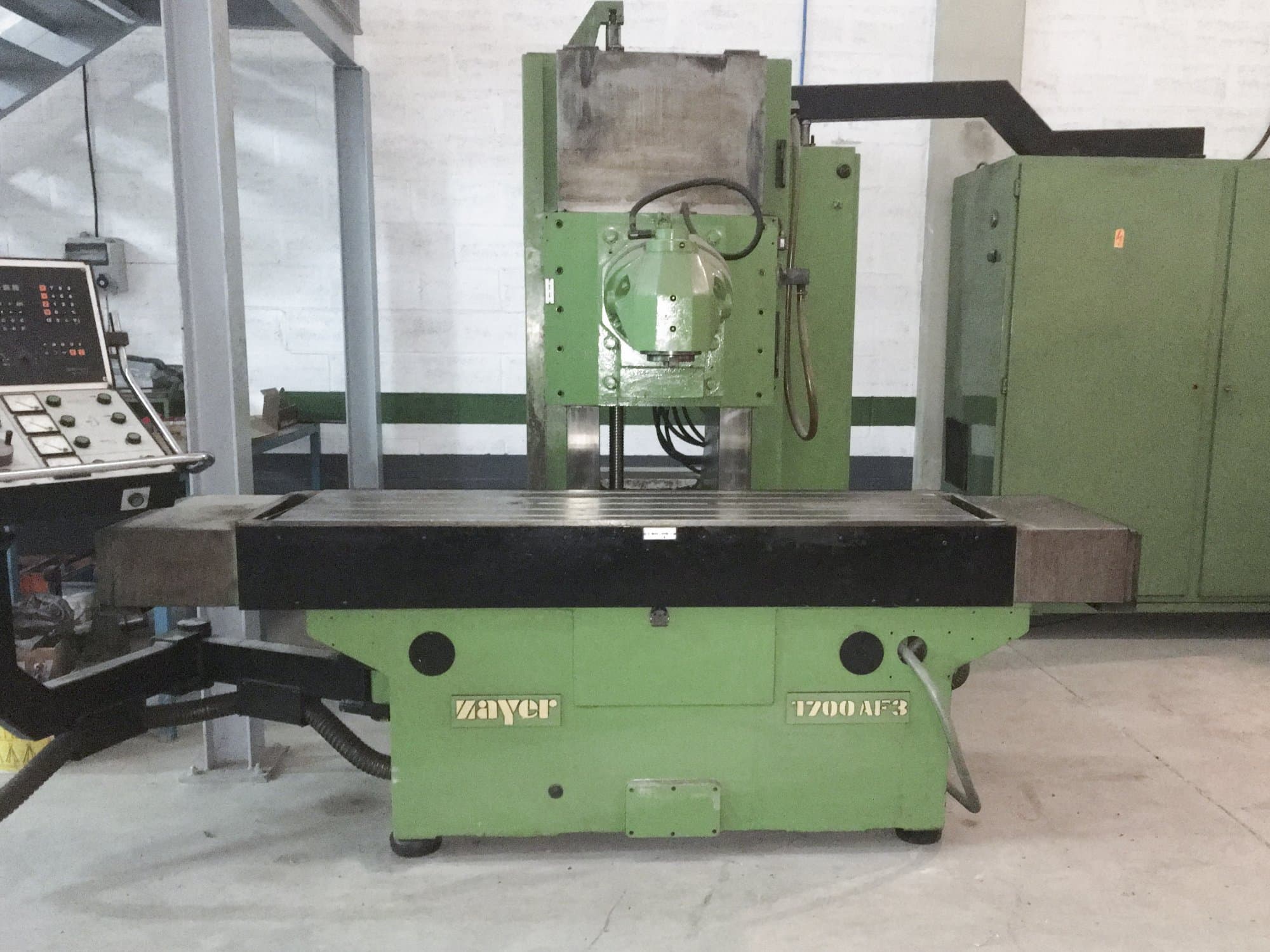

This Zayer 1700 AF3 Fixed Bench Milling Machine from 1991 has a 4-Axis splitter and a spacious table of 1700 x 515 millimeters (L X W). With a range of movements of 1400, 650 and 650 millimeters (X-Axis, Y-Axis and Z-Axis respectively), the equipment is operated through a HEIDENHAIN TNC 150 Control unit.

Overview

brand: Zayer
year: 1991
MODEL: 1700 AF3
application type: Milling
Location: Spain
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Zayer 1700 AF3

General Data

Measurements width: 2700 mm
Measurements depth: 2600 mm
Measurements height: 2750 mm
Machine weight: 9200 kg

Control Unit

Model: TNC 150
Brand: HEIDENHAIN

Main drive

Spindle speed range: 1800 RPM 1/MIN
Spindle motor power: 26 kW
Tool taper: ISO 50

Movement

X-AXIS Movement: 1400 mm
Y-AXIS Movement: 650 mm
Z-AXIS Movement: 650 mm

Table

Outer length: 1700 mm
Outer width: 515 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
