Zayer 3000 BF3 Fixed Bench Milling Machine

Show in original language

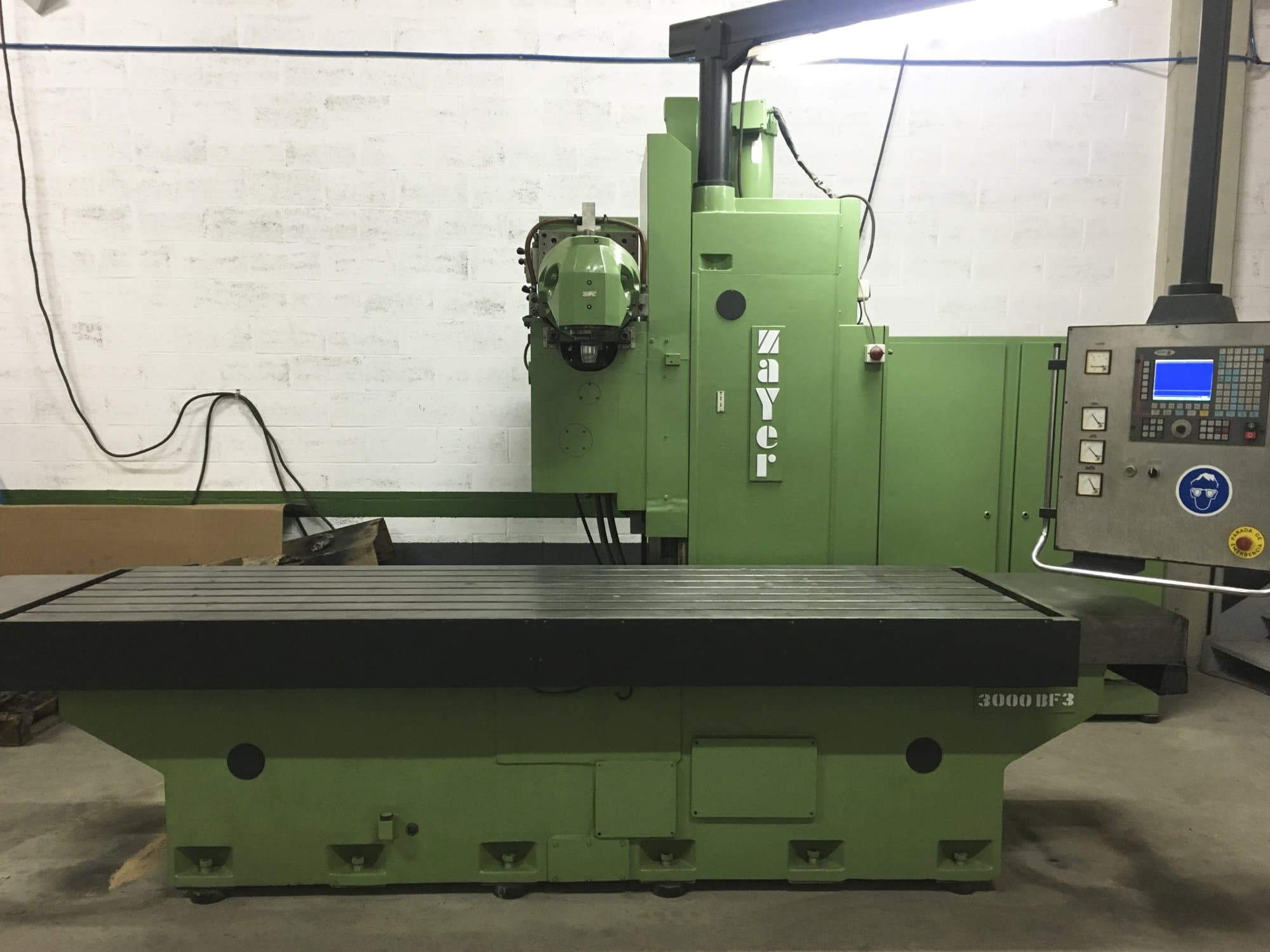

This Zayer 3000 BF3 Fixed Bench Milling Machine from 1992 has a spacious table of 3000 x 800 millimeters (L x W). With a range of movements of 2600, 960 and 960 millimeters (X-Axis, Y-Axis and Z-Axis respectively), the equipment is operated through a Fagor 8035 Control unit.

Overview

brand: Zayer
year: 1992
MODEL: 3000 BF3
application type: Milling
Location: Spain
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FAGOR

Technical Information - Zayer 3000 BF3

General Data

Measurements depth: 6580 mm
Measurements height: 3100 mm
Machine weight: 12000 kg

Control Unit

Model: 8035
Brand: FAGOR

Movement

X-AXIS Movement: 2600 mm
X-AXIS Rapid traverse: 1000 mm/min
Y-AXIS Movement: 960 mm
Y-AXIS Rapid traverse: 1000 mm/min
Z-AXIS Movement: 960 mm
Z-AXIS Rapid traverse: 1000 mm/min

Workpiece

Workpiece drm: 610 mm
Workpiece z: 670 mm
Workpiece weight: 400 kg

Table

Outer length: 3000 mm
Outer width: 800 mm

Tools

Slots in storage: 30
Max weight: 12 kg
Max tool diameter: 95/150 mm
Max tool length: 320 mm

Media

Main electronic connection: 480 V / 50 Hz
Power consumption: 56 kVA
Air pressure: 6 bar
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
