➤ Used CHETO IXN2000 For sale | gindumac.com

Show in original language

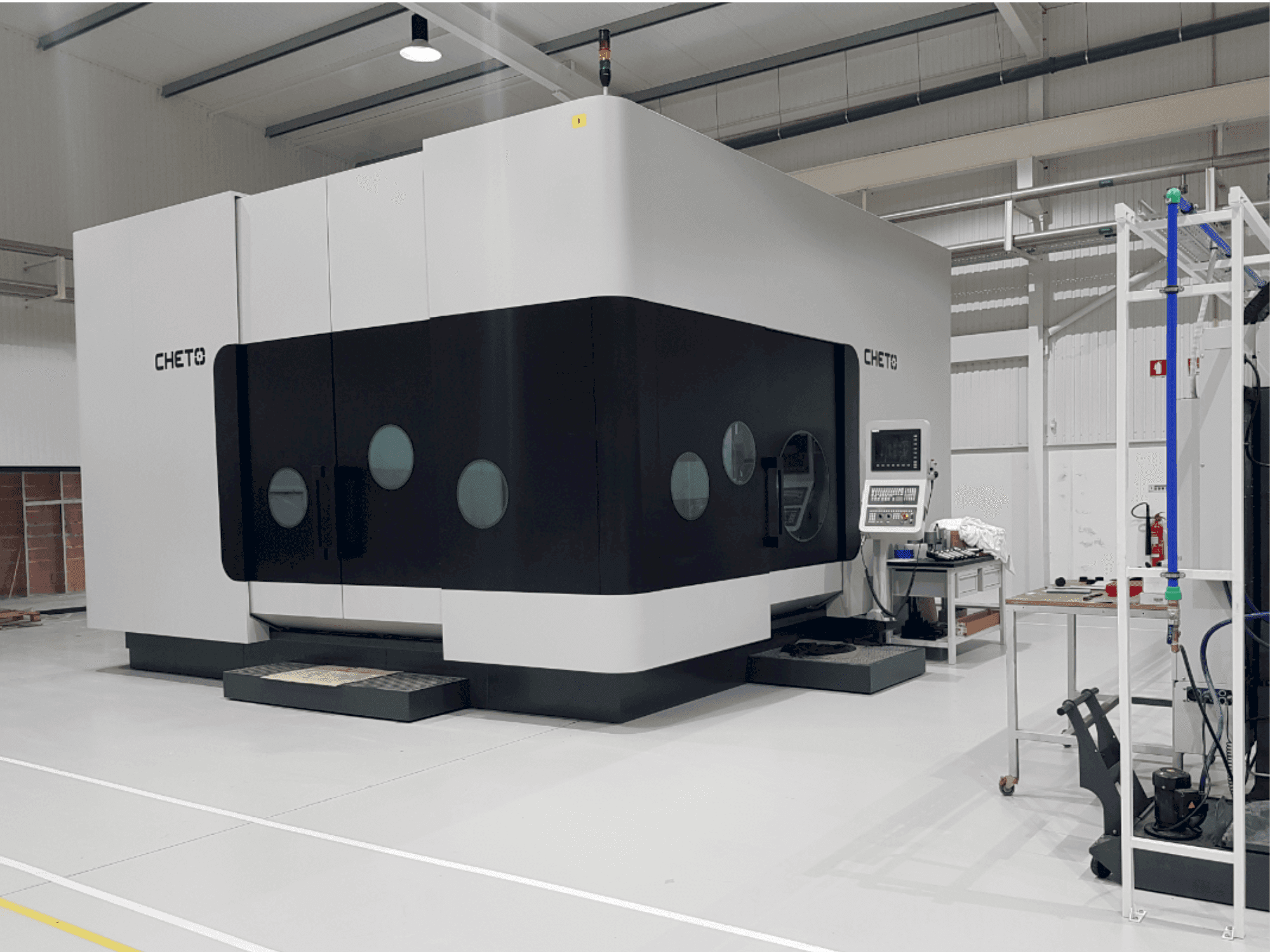

This 6-axis CHETO IXN2000 boring machine was manufactured in 2019. It features a robust ISO 50 DIN 69871 spindle with a speed range of 0-6000 rpm and a power of 20/30 kW, ensuring high torque and precision. The machine includes an automatic rotary table with a size of 1600x1300 mm and can handle a maximum load of 20 tons. Ideal for complex drilling and milling tasks. For more information about this universal machining centre, please reach out to us.

Overview

brand: CHETO
year: 2019
MODEL: IXN2000
application type: Other Machine Tools
Location: Portugal
machine type: Boring Machine (Metal)
availability: Immediately

Technical Information - CHETO IXN2000

General Data

Machine weight: 44000 kg

Main drive

Number of spindles: 1
Spindle speed range: 6000 rpm 1/MIN
Spindle motor power: 20/30 kW
Tool taper: ISO 50 DIN 69871
Number of axis: 6

Movement

X-AXIS Movement: 2000 mm
Y-AXIS Movement: 1200 mm
Z-AXIS Movement: 1000 mm
W-Axis Movement: 1700 mm
A-AXIS Movement: +35º/-25º MM
B-AXIS Movement: 360º MM

Additional equipment

- B table rotation: 360,000
- Rigid tapping: M32
- Helical threading: Standard
- Torque: 178/267 Nm
- Automatic rotary table size: 1600x1300 mm
- Footprint (LxL): 8690x6160 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Cnc axis w drilling one stroke: 1700 mm
- - A tilting rotation: +35º/-25º
- - Drilling capacity max. Drilling stroke w+z: 1700+800 mm
- - Drilling capacity: Ø5-40 mm
- - Milling capacity: 400 cm³/min
- - Positioning type: 360,000
- - Max. Load in rotation: 20 ton

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
