Doosan DBC 130P Boring Machine

Show in original language

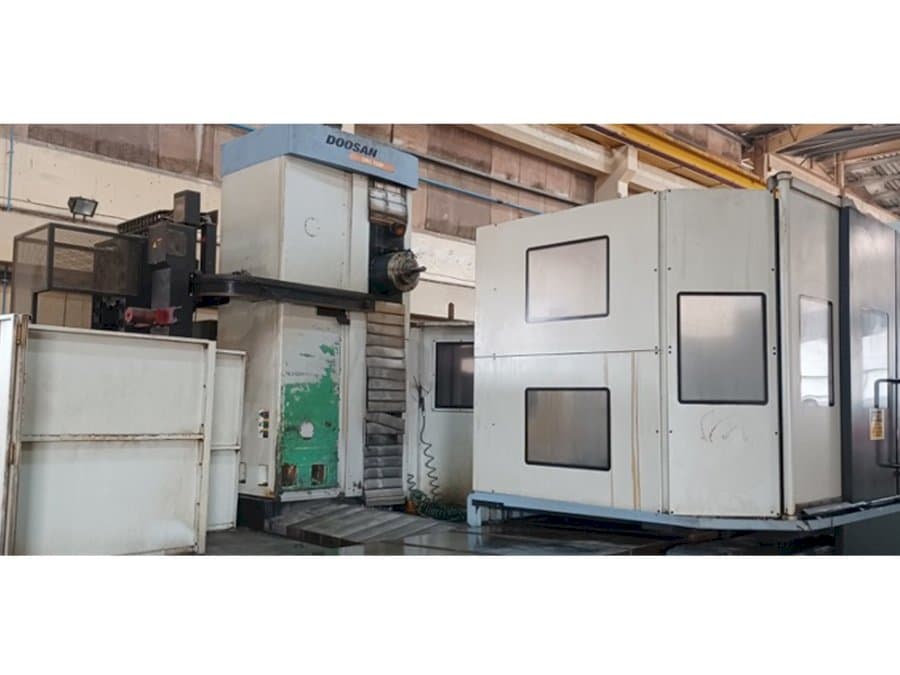

This Doosan DBC 130P Boring Machine was built in Korea in the year 2009. It has been on for 85607 hours of which 19576 are cutting hours. This 4 axis machine is equipped with a Fanuc 31i-MB control unit. It has a spindle speed up to 2500 rpm and a table of dimensions 3000 x 1600 mm.

Overview

brand: DOOSAN
year: 2009
MODEL: DBC 130P
production hours: 19576
application type: Other Machine Tools
Location: United Arab Emirates
machine type: Boring Machine (Metal)
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN DBC 130P

General Data

Machine weight: 43000 KG

Control Unit

Model: 31i-MB
Brand: FANUC

Main drive

Spindle speed range: 2500 1/MIN
Number of axis: 4

Table

Outer length: 3000 mm
Outer width: 1600 mm
Table load: 20000 KG

Tools

Max weight: 25 KG
Max tool diameter: 130 mm
Max tool length: 600 mm

Media

Main electronic connection: 220V / 60 Hz
Power consumption: 70 kVa

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Traverse z: 1600 mm
- - W axis: 700 x 130 mm quil
- - Spindle centre line to column: 1060 mm
- - Max feed rate fanuc: 10 m/min
- - Spindle taper: bbt/cat 50
- - Bi-directional twin arm type auto tool: 40 stations

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
